9930DAC-AES75-RG 75-Ohm (Unbalanced) 2-Pair AES-To-4-Channel Analog Audio Converter with Remote Gain Control

Tabs

Overview

The 9930DAC-AES75-RG 75-Ohm (Unbalanced) 2-Pair AES-To-4-Channel Analog Audio Converter with Remote Gain Control is a broadcast-quality AES Digital-To-Analog Converter (DAC) that provides four professional-level balanced analog audio outputs. It also provides a 2x1 reclocked distribution amplifier for each AES input channel.

The 9930DAC-AES75-RG supports audio sampling frequencies from 32kHz to 96kHz. Cable equalization and reclocking techniques enable the 9930DAC-AES75-RG to recover the incoming digital audio signal reliably.

A built-in DSP allows mono-mix and L/R-only outputs.The DSP attenuation function allows overall gain (stereo ganged) trim (offset) via DashBoard™ remote control.

The space-saving design and very low power consumption of the
9930DAC-AES75-RG provides for high density installation.

Features

High-density design accommodates two AES inputs, allowing up to four analog outputs
Also provides 2x1 reclocked DA outputs for each AES input
Full remote control of operating mode and gain control
Multiple DSP modes – stereo/pass-thru, mono mix, L/R only outputs
Supports audio sampling frequencies from 32 kHz to 96 kHz
Convenient DSP gain trim via DIP or remote control
Selectable card switch control or DashBoard™ remote control (usable with DashBoard™ and Cobalt OGCP-9000 remote control panels)
Hot-swappable
Five year warranty

Diagrams

Specifications

Power
< 7.5 Watts

AES Input
Number of Inputs: (2), unbalanced AES-3id BNC
Impedance: 75 Ω
Input Level: 0.2 – 7 Vp-p

Performance
Sampling Rates: 32 kHz to 96 kHz
Resolution: 24-bit
Jitter: < 5 ns

Analog Output
Number of Outputs: (4) max (two stereo pairs). Available as stereo, mono-mixed, or L/R only.
Connector Type: WECO® removable 3-pin modular
Impedance: 60 Ω balanced
Maximum Output Level: +24 dBu
Frequency Response: ±0.2dB, 20 Hz to 20 kHz
Noise (unweighted): -86 dBu, 20 Hz to 20 kHz
THD+N: < 0.02%
Stereo Separation: >90 dB (20 Hz to 20 kHz)

Rear Module Options

Rear Modules

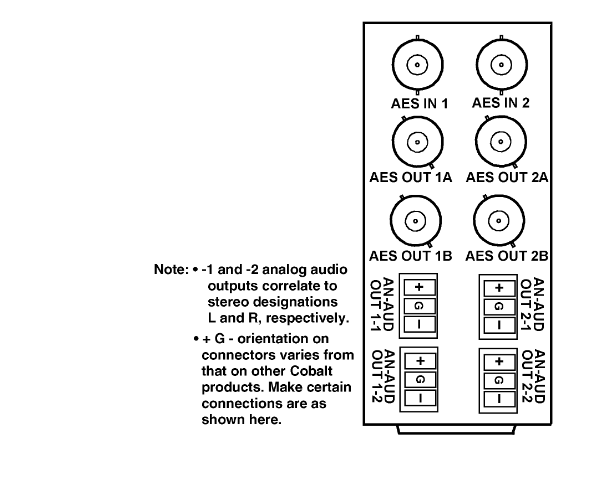

RM20-9930DAC-B

   • (2) AES Audio In (AES IN 1, AES IN 2)
   • (4) AES Audio Out (AES OUT 1A thru AES OUT 2B)
   • (4) Analog Audio Out (AN-AUD OUT 1-1 thru AN-AUD OUT 2-2)

Ordering Information

9930DAC-AES75-RG 75-Ohm (Unbalanced) 2-Pair AES-To-4-Channel Analog Audio Converter with Remote Gain Control

RM20-9930DAC75-B 20-Slot Frame Rear I/O Module (Standard Width) (2) AES Audio In BNCs, (4) Reclocked AES Audio Out BNCs, (4) Balanced Analog Audio Out
