9915DA-1x16-12G 12G/6G/3G/HD/SD SDI 1x16 Reclocking Distribution Amplifier

Tabs

Overview

The Cobalt® 9915DA-1x16-12G 12G/6G/3G/HD/SD SDI 1x16 Reclocking Distribution Amplifier supports an input channel which is distributed to 16 DA outputs. The 9915DA-1x16-12G also has the option to support 1) SFP fiber Input Rx and 1) SFP fiber Output Tx.

As demand for 4K continues to rise, distribution of 12G-SDI signals within a rack-space becomes increasingly important. The 9915DA-1x16-12G allows for copper runs of up to 45 meters, reaching most equipment within a rack room or truck.

Up to 10 of the 9915DA-1x16-12G cards can be installed in a frame to provide 10 channels of input, with distribution to up to 160 coax Outputs. Full user DashBoard™ or Remote Control Panel remote control allows full status and control access locally or across a standard Ethernet network.

DATASHEET

Features

Supports all popular formats: 480i, 576i, 720p, 1080i, 1080PsF, 1080p, 2160p
Full support of 12G/6G/3G/HD/SD-SDI and ASI/DVB
Input data rate auto-detection for all industry-standard data rates
One-card solution for distribution of 4K/8K content over 12G-SDI interfaces
Card display and DashBoard status input lock indicators
Hot-swappable
Five year warranty

Options

Option

Note:
• Options denoted as "+" are software-based options which are available on new product when
'ordered or can be customer field-installed as a software upload upgrade.
• Options or ordering line items denoted as “-“ are hardware-based options/items. These options are
'available as factory-installed only on new product, or product returned to Cobalt for
'factory installation.
-------------------------------------------------------------------------------------------------------------------------------------------

-DA-SFP Adds daughter card to support two externally-accessible SFP cages to the 9915DA 1x16-12G card.

Option -DA-SFP must be ordered at the time of purchase. Cannot be retrofitted by the factory or in the field. The 9915DA 1x16 card can only accept 1) Tx SFP and 1) Rx SFP. The SFPs can be 3G or 12G.

Note: When option -DA-SFP is included, a second input (fiber OE) is in turn added to the card. As such, this exposes a full 2x16 crosspoint that allows both the coax and fiber inputs to be independently and simultaneously routed to various card outputs.

-SFP-OE-12G SFP Optical UHD Single Receiver Rx

-SFP-EO-12G SFP Optical UHD Single Transmitter Tx

-SFP-2EO-12G SFP Optical UHD Dual Transmitter

-SFP-OE SFP Optical Single Receiver Rx

-SFP-EO SFP Optical Single Transmitter Tx

-SFP-2EO SFP Optical Dual Transmitter

-SFP-H-TO-S SFP HDMI-to-HD/SD-SDI Receiver

-SFP-S-TO-H SFP HD/SD-SDI-to-HDMI Transmitter

-SFP-EO-CWDM SFP Optical Single CWDM Transmitter (see Ordering Info for wavelengths and corresponding ordering codes)

-SFP-2EO-CWDM SFP Optical Dual CWDM Transmitter (see Ordering Info for wavelengths and corresponding ordering codes)

-SFP-IP-SWD Software-Defined EmSFP; 2110 or 2022-6 Encapsulator/De-Encapsulator (See Ordering Info for full descriptions and details.)

+UP-9915DA-1x16-TO-2x16 Upgrade from 9915DA-1x16-12G model/functionality to 9915DA-2x16-XPT-12G 12G/6G/3G/HD/SD Dual-Channel Multi-Rate Reclocking DA with x2 Output Crosspoint model

+UP-9915DA-1x16-TO-4x16 Upgrade from 9915DA-1x16-12G model/functionality to 9915DA-4x16-XPT-12G 12G/6G/3G/HD/SD Quad-Channel Multi-Rate Reclocking with x4 Output Crosspoint DA model

Diagrams

Specifications

Note: All specifications are subject to change. Inputs/outputs are a function of rear I/O module used.

Power
<10 Watts

12G / 6G / 3G / 1.5G / 270M Serial Digital Interface Input/Output
(1) 75Ω Connector Input (max). (16) 75Ω Connectors Output (max). SDI Formats Supported: SMPTE ST2082-1,10, 424M, 292M, SMPTE 259M-C. All inputs/outputs 12G compliant and SDQS/2SI quad 3G compliant.

See product manual for all supported formats.

Coaxial Receive Performance (Cable Length; Belden 4694)
50m/70m/150m/180m (12G/6G/3G/HD)

Fiber Transmit Output (typ. with optional fiber Tx SFP)
LC connector
Fiber Wavelength, Tx: 1310 nm
Tx Power: -5.0 dBm (min)

Fiber Receive Input (typ. with optional fiber Rx SFP)
LC connector
Receive Sensitivity: -23 dBm; 1260 to 1620 nm
Receive Sensitivity: (-12G SFP models; 12G/6G/3G/HD/SD): -9/-10/-10/-10/-10 dBm

Rear Module Options

Rear Modules

Rear I/O Module output designations here correlate to output numbers for four DA quadrants as shown in the card block diagram. As such, SDI outputs within a quadrant group can only be sourced from a particular input at one time (for example, if the card is set to feed SDI IN A to quadrant SDI Out (1-4), the rear module outputs 1 thru 4 will all output SDI IN A). Dissimilar inputs cannot be routed within a quadrant group (for example, SDI OUT 1 sourced from SDI IN A and SDI OUT 2 sourced from SDI IN B).

All four SDI IN A thru SDI IN D are funcational only when mated to quad input card models. Dual and single card models omit SDI IN D as NC and progressively omit SDI IN C and SDI IN B as NC.

NOTE: Applicable only where -SFP options are offered. SFP 1 and SFP 2 details show SFP receptacle cage is included factory-installed on rear module (plug-in SFP modules are available with respective options).

NOTE: MPN 1144 may have reduced receive performance due to the larger IO size.

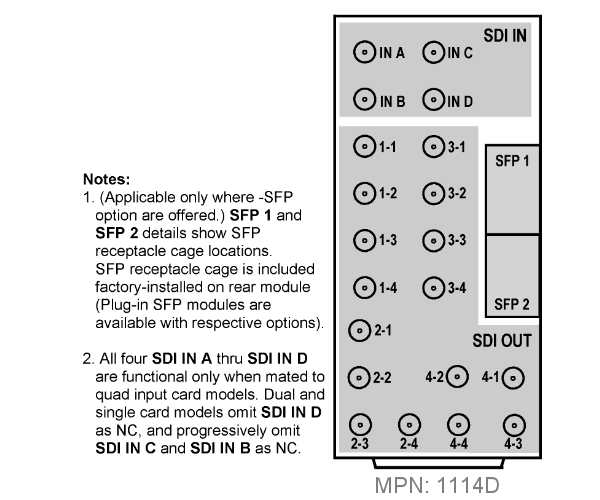

RM20-9915-A-HDBNC

(1) SDI Input (SDI IN A)
(16) SDI Outputs
(2) SFP cage access
(All coaxial connectors HDBNC)

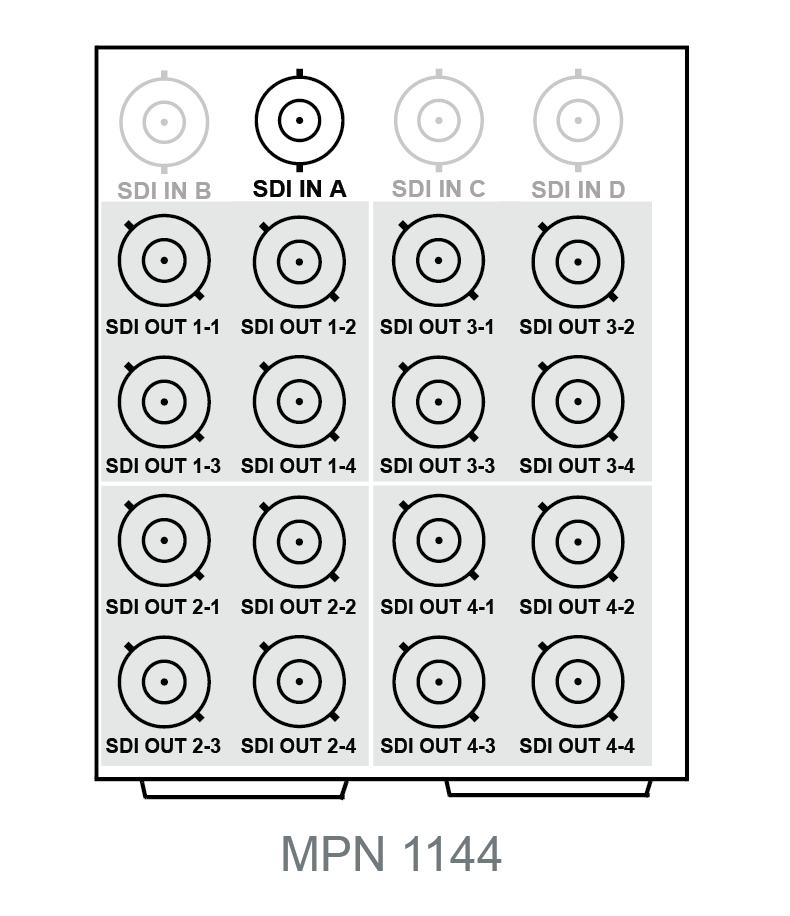

RM20-9915-B

(1) SDI Input (SDI IN A)

(16) SDI Outputs

(All coaxial connectors full size BNC)

Ordering Information

9915DA-1x16-12G 12G/6G/3G/HD/SD-SDI 1x16 Reclocking Distribution Amplifier

Rear Modules:

RM20-9915-A-HDBNC 20-Slot Frame Rear I/O Module (Standard Width) (1) 12G/6G/3G/HD/SD-SDI Input (IN B thru IN D NC), (16) 12G/6G/3G/HD/SD-SDI Outputs (all coaxial connectors HD-BNC)
RM20-9915-B 20-Slot Frame Rear I/O Module (Double Width) (1) 12G/6G/3G/HD/SD-SDI Input (IN B thru IN D NC), (16) 12G/6G/3G/HD/SD-SDI Outputs (all coaxial connectors Full size BNC)

Options (Hardware-based):

-DA-SFP Adds daughter card to support two externally-accessible SFP cages to the card. Option -DA-SFP must be ordered at the time of purchase. Cannot be retrofitted by the factory or in the field.

-SFP-OE-12G 12G/6G/3G/HD/SD-SDI UHD Single Receiver SFP Module; 1260 nm - 1620 nm; type LC connector
-SFP-EO-12G 12G/6G/3G/HD/SD-SDI UHD Single Transmitter SFP Module; 1310 nm; type LC connector
-SFP-2EO-12G 12G/6G/3G/HD/SD-SDI UHD Dual Transmitter SFP Module; 1310 nm; type LC connectors
-SFP-OE 3G/HD/SD-SDI Single Receiver SFP Module; 1260 nm - 1620 nm; type LC connector
-SFP-EO 3G/HD/SD-SDI Single Transmitter SFP Module; 1310 nm; type LC connector
-SFP-2EO 3G/HD/SD-SDI Dual Transmitter SFP Module; 1310 nm; type LC connectors
-SFP-H-TO-S HDMI-to-HD/SD-SDI Receiver SFP Module
-SFP-S-TO-H SFP HD/SD-SDI-to-HDMI Transmitter SFP Module
-SFP-EO-CWDM-WX Single CWDM Transmitter SFP Module; type LC connector
-SFP-2EO-CWDM-WX Dual CWDM Transmitter SFP Module; type LC connectors
Use fiber wavelength codes below for CWDM SFPs when ordering. Available wavelengths (in nm) are as follows: 1270, 1290, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610.
In "WX" places in part number, substitute code for wavelengths in each place as listed below:
-27: 1270nm -29: 1290nm -31: 1310nm
-33: 1330nm -35: 1350nm -37: 1370nm
-39: 1390nm -41: 1410nm -43: 1430nm
-45: 1450nm -47: 1470nm -49: 1490nm
-51: 1510nm -53: 1530nm -55: 1550nm
-57: 1570nm -59: 1590nm -61: 1610nm
(Example: -SFP-EO-CWDM-27 has 1270 nm Tx wavelength)
-SFP-IP-SWD Software-Defined EmSFP; 2011/2022-6 Encap/De-Encap Host. 10GigE Multi-Mode
Optical Interface with Female LC Duplex Connectors. The following I/O purposing software options are
available for cards using SFP type -SPF-IP-SWD (Up to 3 software licenses can be added to the
-SFP-IP-SWD, but only 1 license can be active at a time)
+ADD-SFP-2SDI-TO-IP-2022-6 SFP Software License; Dual-Channel Encapsulator 2SDI-to-IP-2022-6
+ADD-SFP-2SDI-TO-IP-2110 SFP Software License; Dual-Channel Encapsulator 2SDI-to-IP-2110
+ADD-SFP-IP-TO-SDI-2022-6 SFP Software License; Single-Channel De-Encapsulator
IP-2022-6-to-SDI
+ADD-SFP-IP-TO-SDI-2110 SFP Software License; Single-Channel De-Encapsulator IP-2110-to-SDI
+ADD-SFP-SDI-TO-IP-2022-6 SFP Software License; Single-Channel Encapsulator SDI-to-IP-2022-6
+ADD-SFP-SDI-TO-IP-2110 SFP Software License; Single-Channel Encapsulator SDI-to-IP-2110
+UP-9915DA-1x16-TO-2x16 Upgrade from 9915DA-1x16-12G model/functionality to
9915DA-2x16-XPT-12G 12G/6G/3G/HD/SD Dual-Channel Multi-Rate Reclocking DA model
+UP-9915DA-1x16-TO-4x16 Upgrade from 9915DA-1x16-12G model/functionality to
9915DA-4x16-XPT-12G 12G/6G/3G/HD/SD Quad-Channel Multi-Rate Reclocking DA model
