9083 HD/SD Frame Sync with Audio Embedding/ De-Embedding

Tabs

Overview

(This product is discontinued. Please see 9922-FS for its replacement.) The 9083 offers full-featured frame sync, providing glitch-free audio embedding from embedded, AES, and analog input sources with full embed/de-embed crosspoint and level control. Up to 16 AES channels and eight analog audio channels can be embedded. De-embedding provides up to 16 AES channels.

9083 Options

   • Dolby® Digital (AC-3) Encoder (+ENCD)
   • Audio Mixer (+AMx)
   • Loudness Meter (+LM)
   • Linear Acoustic Loudness Processing (+LP)
   • Linear Acoustic Upmixing (+UM)
   • LTC In/Out (+LTC)

Features

HD/SD universal digital inputs
Video level controls
Dolby® Digital Encoder option
User offset to frame sync to align Dolby® delay
Audio embed adaptive SRC allows asynchronous 48 kHz AES audio to automatically sync with card 48 kHz timing for glitch-free AES embedding
AFD code insertion
Timecode insertion/conversion. +LTC option allows LTC input/output on shared port, with bi-directional conversion between VBI and LTC on RS-485 or any audio I/O
Glitch-free handling of embedded audio when a frame is dropped or duplicated
Four internal tone generators
HD/SD closed captioning support and flexible timecode processing
Frame sync with up to 13 frames of user adjustable delay
Remote control/monitoring via Dashboard ™ software or OGCP-9000 remote control panels
Five year warranty

Options

Option

COMPASS CARD OPTIONS OVERVIEW

Audio Mixing (+AMx)

Dolby Digital (AC-3) Encode (+ENCD)

Loudness Metering (+LM)

Linear Acoustic Loudness Processing (+LP)

Linear Acoustic Upmixing (+UM)

LTC In/Out (+LTC)

Diagrams

Specifications

Electrical
Power: 12 watts
Power
(Dolby®-DEC Option): 14.5 watts

HD/SD-SDI Input
Number of Inputs: 1
Standard: SMPTE 292 and 259M
Return Loss: >15 dB at 5 MHz - 1.485 GHz

AES Input
Number of Inputs: 16-Ch unbalanced BNC (nominal 48 kHz only)
Impedance: 75 Ω
Input Level: 0.1 V to 2.5 V p-p
(5 V p-p tolerant)
Resolution: 24-bit

Analog Audio Input
Number of Inputs: 8-Ch balanced
Connector: Removable 3-pin Phoenix
Signal Level: up to +24 dBu
Sample Rate: 48 kHz

Reference Video Input
Number of Inputs: 2 looping (openGear® frame)
Standard: Tri-level sync (SMPTE 274) and
black burst (NTSC and PAL)

Processing Delay
Minimum Frame Sync Delay: < 3 lines

AES-3ID Output
Number of Outputs: 16-Ch unbalanced BNC
Impedance: 75 Ω
Sample Rate: 48 kHz
Resolution: 24-bit

HD/SD-SDI Output
Number of Outputs: 2
Standard: SMPTE 292 and 259M
Signal Level: 800 mV nominal
Return Loss: >15 dB at 5 MHz - 270 MHz
>12 dB at 270 MHz - 1.485 GHz
Jitter: HD: < 0.15 UI
SD: < 0.10 UI
Embedded Audio: 16-Ch SD/HD

Rear Module Options

Rear Modules

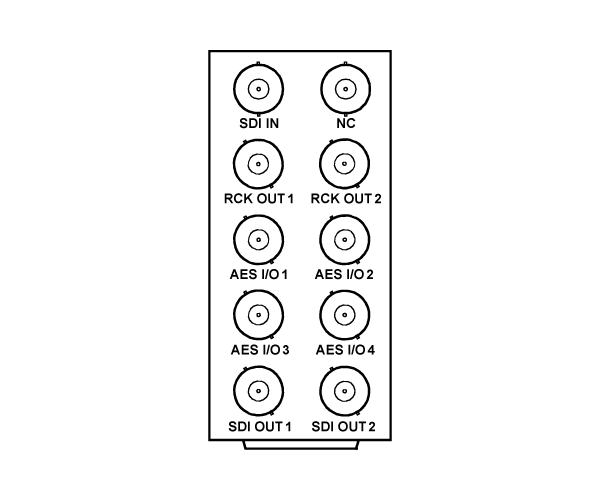

RM20-9083-A

   • SDI In
   • (2) Reclocked Input SDI Out
   • (4) AES In/Out
   • (2) SDI Out
   (All coaxial connectors BNC)

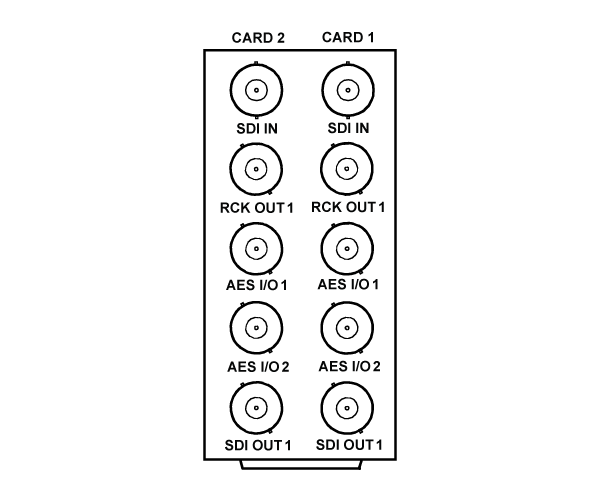

RM20-9083-A/S

   (Dual-card (split) rear module; connections are per card)
   • SDI In
   • (1) Reclocked Input SDI Out
   • (2) AES In/Out
   • (1) SDI Out
   (All coaxial connectors BNC)

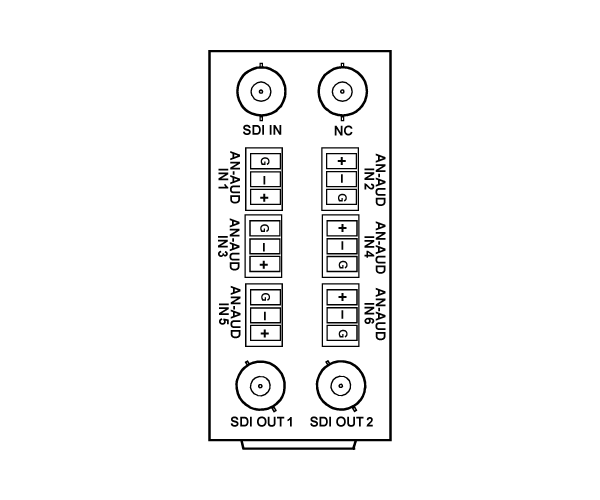

RM20-9083-B

   • SDI In
   • (6) Balanced Analog Audio In
   • (2) SDI Out
   (All coaxial connectors BNC)

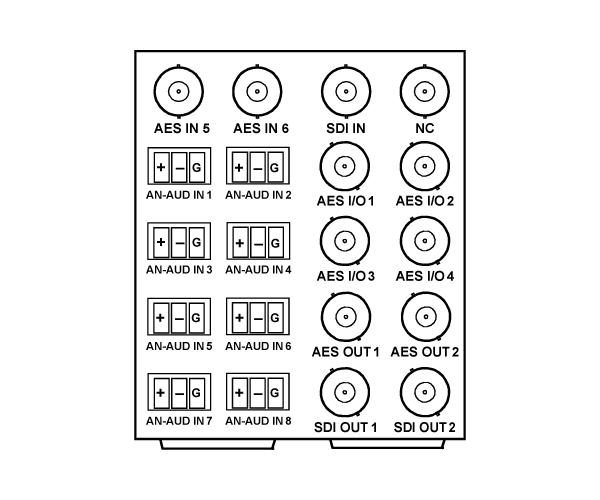

RM20-9083-C

   • SDI In
   • (4) AES In/Out (1-4)
   • (2) AES In (5-6)
   • (2) AES Out (1-2)
   • (8) Balanced Analog Audio In
   • (2) SDI Out
   (All coaxial connectors BNC)

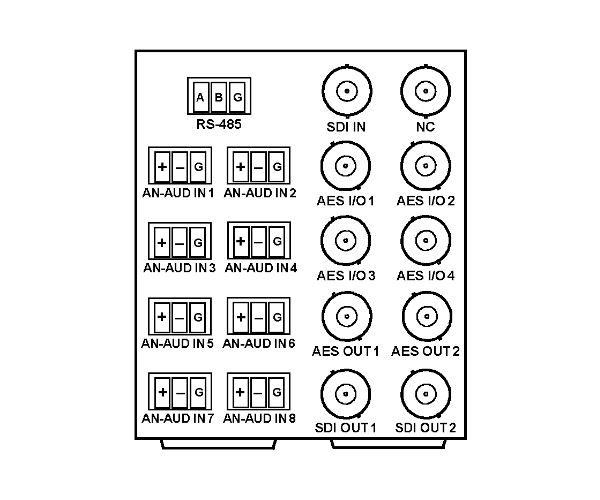

RM20-9083-D

   • SDI In
   • (4) AES In/Out (1-4)
   • (2) AES Out (1-2)
   • (8) Balanced Analog Audio In
   • Metadata Out/LTC In/Out RS-485
   • (2) SDI Out
   (All coaxial connectors BNC)

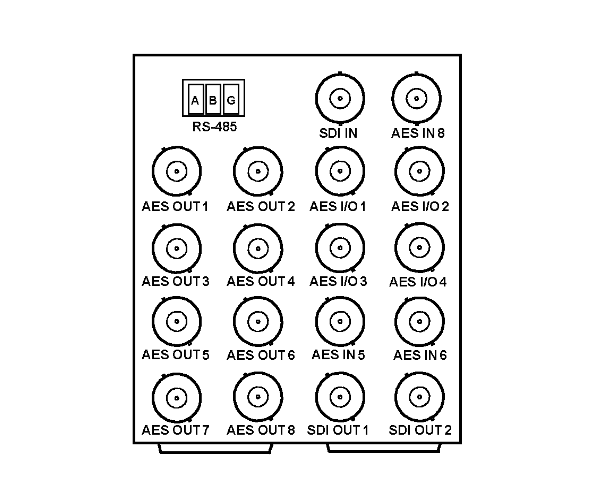

RM20-9083-E

   • SDI In
   • (4) AES In/Out (1-4)
   • (8) AES Out (1-8)
   • (3) AES In (5, 6, 8)
   • Metadata Out/LTC In/Out RS-485
   • (2) SDI Out
   (All coaxial connectors BNC)

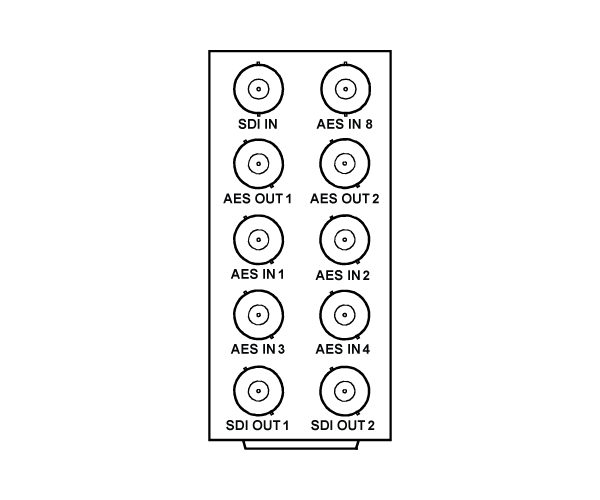

RM20-9083-F

   • SDI In
   • (5) AES In (1-4, 8)
   • (2) AES Out (1-2)
   • (2) SDI Out
   (All coaxial connectors BNC)

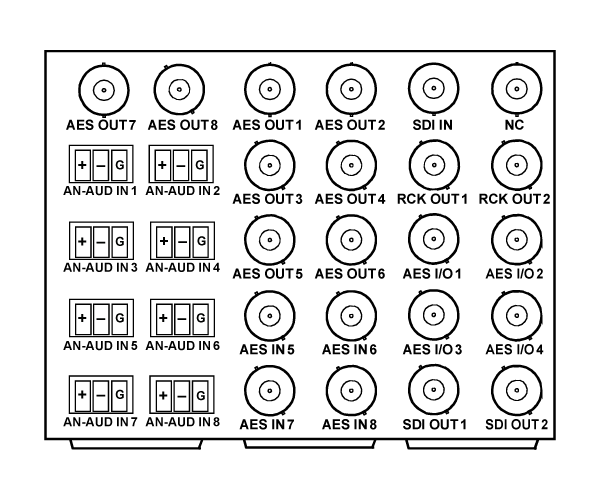

RM20-9083-G

   • SDI In
   • (2) Reclocked Input SDI Out
   • (4) AES In/Out (1-4)
   • (8) AES Out (1-8)
   • (4) AES In (5-8)
   • (8) Balanced Analog Audio In
   • (2) SDI Out
   (All coaxial connectors BNC)

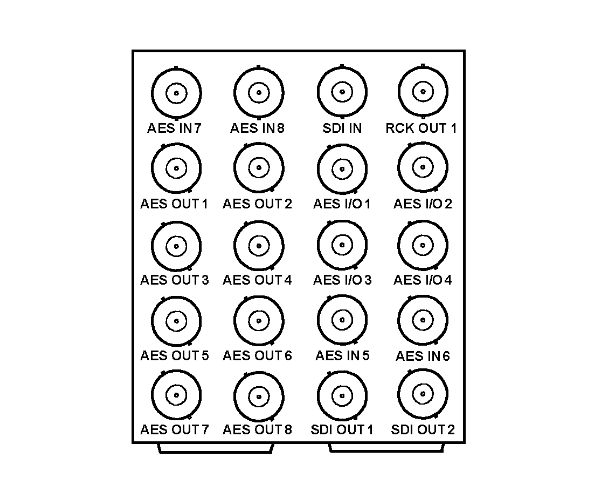

RM20-9083-H

   • SDI In
   • (1) Reclocked Input SDI Out
   • (4) AES In/Out (1-4)
   • (8) AES Out (1-8)
   • (4) AES In (5-8)
   • (2) SDI Out
   (All coaxial connectors BNC)

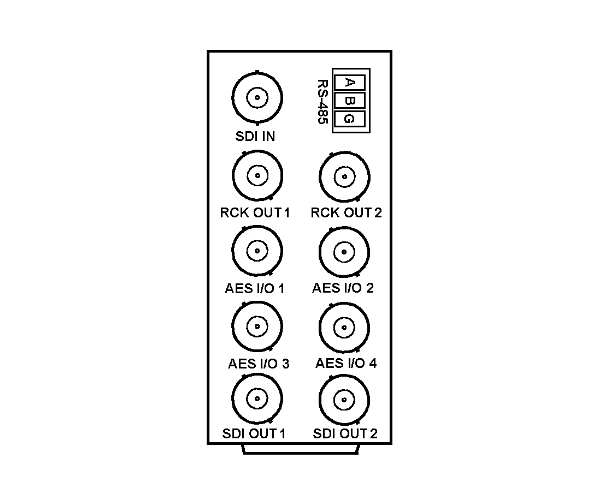

RM20-9083-J

   • SDI In
   • (2) Reclocked Input SDI Out
   • (4) AES In/Out (1-4)
   • Metadata Out/LTC In/Out RS-485
   • (2) SDI Out
   (All coaxial connectors BNC)

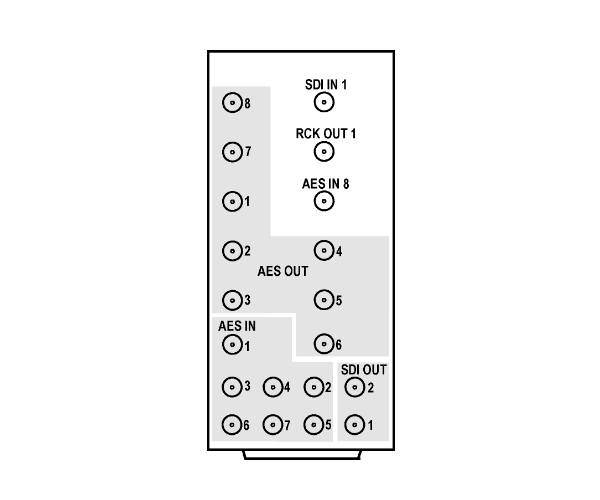

RM20-9083-E-DIN
RM20-9083-E-HDBNC

   • SDI In
   • (1) Reclocked Input SDI Out
   • (8) AES Out (1-8)
   • (8) AES In (1-8)
   • (2) SDI Out
   (All coaxial connectors DIN1.0/2.3 or HD-BNC)

Ordering Information

9083 HD/SD-SDI Frame Sync with Input Reclocking, Glitchless Embedded Audio Support, and 16 Channel AES Embedding/De-Embedding
RM20-9083-A 20-Slot Frame Rear I/O Module (Standard Width) HD/SD-SDI Input BNC, 2 HD/SD-SDI Reclocked Output BNCs, AES BNCs: 4 In/Out, 2 HD/SD-SDI Output BNCs
RM20-9083-A/S 20-Slot Frame Rear I/O Module (Split; supports 2 cards) HD/SD-SDI Input BNC, 1 HD/SD-SDI Reclocked Output BNC, AES BNCs: 2 In/Out, 1 HD/SD-SDI Output BNC (connections are per card)
RM20-9083-B 20-Slot Frame Rear I/O Module (Standard Width) HD/SD-SDI Input BNC, 6 Analog Audio Inputs, 2 HD/SD-SDI Output BNCs
RM20-9083-C 20-Slot Frame Rear I/O Module (Double Width) HD/SD-SDI Input BNC, AES BNCs: 2 In, 4 In/Out, 2 Out, 8 Analog Audio Inputs, 2 HD/SD-SDI Output BNCs
RM20-9083-D 20-Slot Frame Rear I/O Module (Double Width) HD/SD-SDI Input BNC, AES BNCs: 4 In/Out, 2 Out, 8 Analog Audio In, 2 HD/SD-SDI Out BNCs,  RS-485 LTC / Metadata I/O Port
RM20-9083-E 20-Slot Frame Rear I/O Module (Double Width) HD/SD-SDI Input BNC, AES BNCs: 4 In/Out, 2 In, 8 Out, RS-485 LTC / Metadata I/O Port, 2 HD/SD-SDI Output BNCs
RM20-9083-F 20-Slot Frame Rear I/O Module (Standard Width) HD/SD-SDI Input BNC, AES BNCs: 4 In/Out, 2 Out, 2 HD/SD-SDI Output BNCs
RM20-9083-G 20-Slot Frame Rear I/O Module (Triple Width) HD/SD-SDI Input BNC, 2 HD/SD-SDI Reclocked Output BNCs, 8 AES In BNCs, 8 AES Out BNCs, 8 Analog Audio Inputs, 2 HD/SD-SDI Output BNCs
RM20-9083-H 20-Slot Frame Rear I/O Module (Double Width) HD/SD-SDI Input BNC, 4 AES In BNCs, 4 AES In/Out BNCs, 8 AES Out BNCs, 2 SDI Output BNCs
RM20-9083-J 20-Slot Frame Rear I/O Module (Standard Width) HD/SD-SDI Input BNC, 4 AES BNC In/Out, 2 HD/SD-SDI Reclocked Output BNCs, 2 HD/SD-SDI Processed Output BNCs,  RS-485 LTC / Metadata I/O Port
RM20-9083-E-HDBNC 20-Slot Frame Rear I/O Module (Standard Width, High Density) HD/SD-SDI Input, 8 AES Inputs, 8 AES Outputs, 2 HD/SD-SDI Outputs, 1 Reclocked HD/SD-SDI Output (All connectors HD-BNC)
RM20-9083-E-DIN 20-Slot Frame Rear I/O Module (Standard Width, High Density) HD/SD-SDI Input, 8 AES Inputs, 8 AES Outputs, 2 HD/SD-SDI Outputs, 1 Reclocked HD/SD-SDI Output (All connectors DIN1.0/2.3)
+ENCD Dolby D Encoder Option
