9322 HD/SD De-Embedder

Tabs

Overview

(This product is discontinued. Please see 9933-EMDE-ADDA for its replacement.) In addition to providing 24-bit basic audio de-embedding to up to 16 AES output channels, the 9322 offers AFD code insertion, full timecode control, and video proc features.

Timecode can be inserted on the SDI output from selectable sources such as SDI VITC waveform, SD/HD ATC_VITC/ATC_LTC. +LTC option allows LTC input/output on shared port, with bi-directional conversion between VBI and LTC on RS-485 or any audio I/O.

The 9322 features full user remote and card-edge controls for audio levels and routing, video proc, and other functions. Factory presets enable a return to factory settings.

9322 Options

• Audio Mixing (+AMx)
• Linear Acoustic Loudness Processing (+LP)
• Loudness Metering (+LM)
• Linear Acoustic Upmixing (+UM)
• LTC In/Out (+LTC)

Features

HD/SD universal digital inputs
16 channels of AES de-embedding
24-bit audio processing
Audio channel mapping phase inversion and level control
16 channels of sample rate conversion
Four internal tone generators
Video proc controls
Local or remote user controls
Remote control/monitoring via Dashboard ™ software or OGCP-9000 remote control panels
Five year warranty

Options

Option

COMPASS CARD OPTIONS OVERVIEW

Audio Mixing (+AMx)

Loudness Metering (+LM-C)

Linear Acoustic® Upmixing (+UM)

Linear Acoustic Loudness Processing (+LP51, +LP20, +2LP20)

LTC In/Out (+LTC)

Diagrams

Specifications

Electrical
Power: 9 Watts
Power (Dolby®-DEC Option): 11.5 Watts

HD/SD-SDI Input
Number of Inputs: 1
Standard: SMPTE 292M and 259M
Return Loss: >15 dB at 5 MHz - 1.485 GHz

AES Output
Number of outputs: 16-Ch unbalanced BNC
Impedance: 75 Ω
Sample Rate: 48 kHz
Resolution: 24-bit

HD/SD-SDI Output
Number of Outputs: 2 processed  2 reclocked
Standard: SMPTE 292M and 259M
Signal Level: 800 mV nominal
Return Loss: >15 dB at 5 MHz - 270 MHz, >12 dB at 270 MHz - 1.485 GHz
Jitter: HD: < 0.15 UI
SD: < 0.10 UI
Embedded Audio: 16-Ch SD/HD

Rear Module Options

Rear Modules

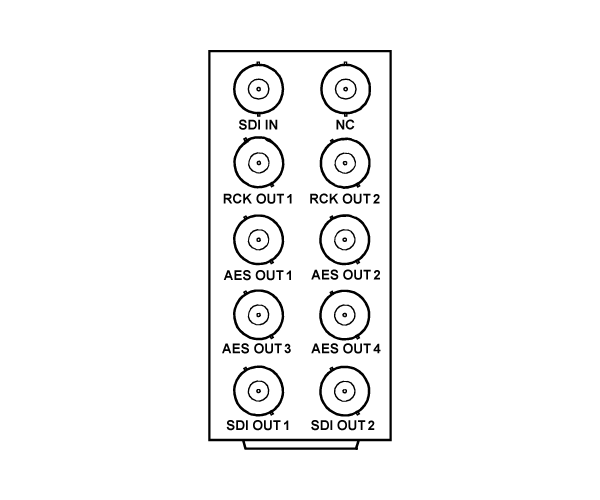

RM20-9322-A

   • SDI In
   • (2) Reclocked Input SDI Out
   • (4) AES Out
   • (2) Processed SDI Out
   (All coaxial connectors BNC)

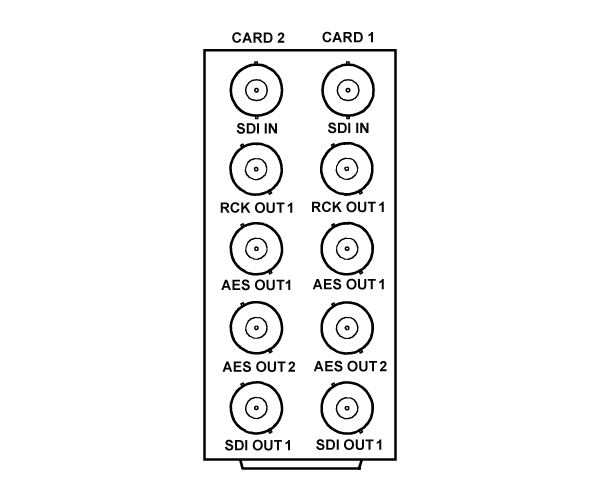

RM20-9322-A/S

   (Dual-card (split) rear module; connections are per card)
   • SDI In
   • (1) Reclocked Input SDI Out
   • (2) AES Out
   • (1) Processed SDI Out
   (All coaxial connectors BNC)

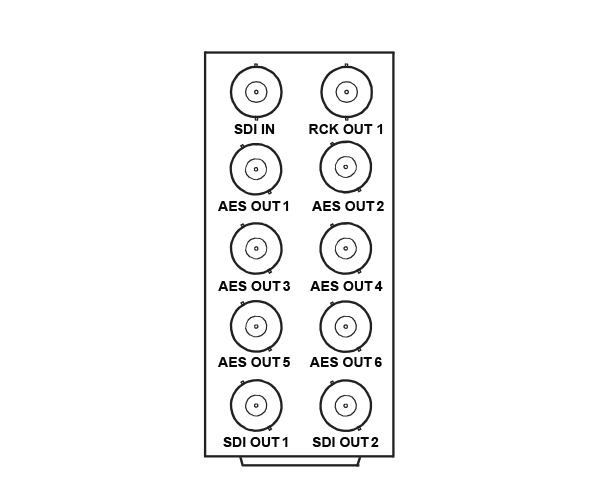

RM20-9322-B

   • SDI In
   • (1) Reclocked Input SDI Out
   • (6) AES Out
   • (2) Processed SDI Out
   (All coaxial connectors BNC)

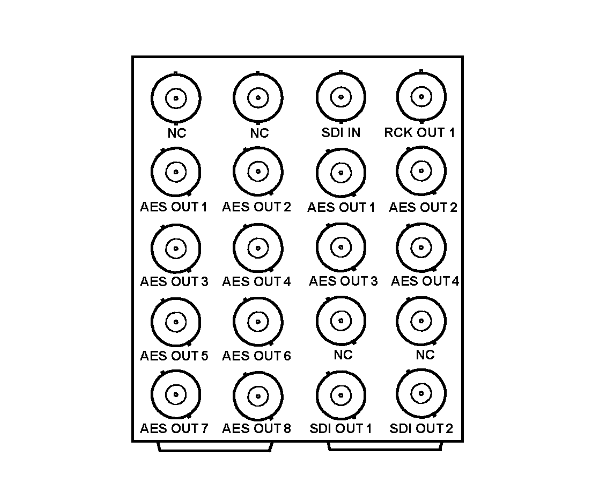

RM20-9322-C

   • SDI In
   • (1) Reclocked Input SDI Out
   • (4) AES Out (1-4)
   • (8) AES Out (1-4 copy; 5-8)
   • (2) Processed SDI Out
   (All coaxial connectors BNC)

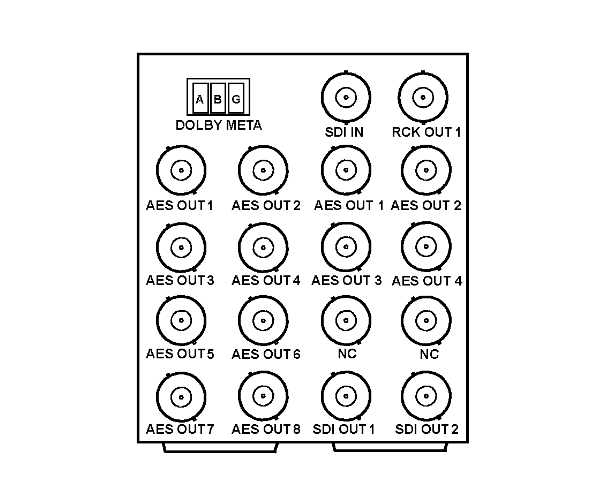

RM20-9322-E

   • SDI In
   • (1) Reclocked Input SDI Out
   • (4) AES Out (1-4)
   • (8) AES Out (1-4 copy; 5-8)
   • Metadata Out/LTC In/Out RS-485
   • (2) Processed SDI Out
   (All coaxial connectors BNC)

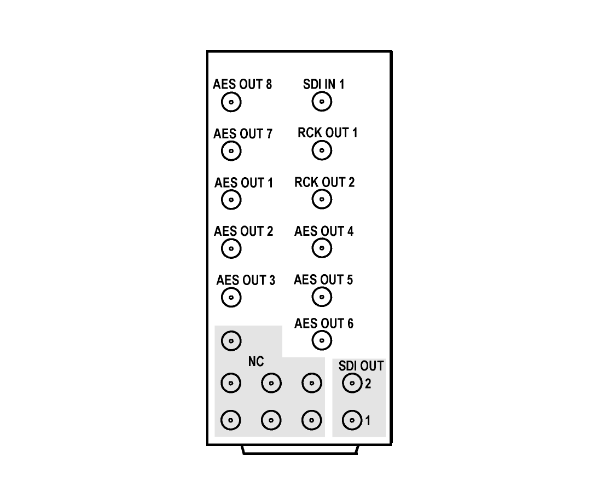

RM20-9322-E-DIN
RM20-9322-E-HDBNC

   • SDI In
   • (2) Reclocked Input SDI Out
   • (8) AES Out
   • (2) Processed SDI Out
   (All coaxial connectors DIN1.0/2.3 or HD-BNC)

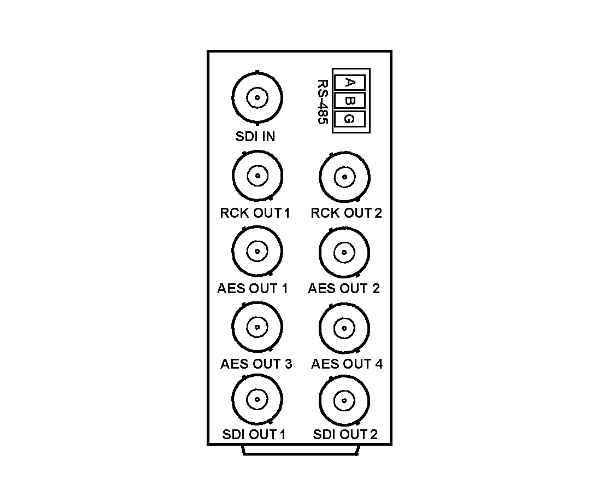

RM20-9322-F

   • SDI In
   • (2) Reclocked Input SDI Out
   • (4) AES Out
   • Metadata Out/LTC In/Out RS-485
   • (2) Processed SDI Out
   (All coaxial connectors BNC)

RM20-9322-G

   • SDI In
   • (8) AES Out
   • (8) AES Out (1-4 copy; 5-8)
   • (1) Processed SDI Out
   (All coaxial connectors BNC)

Ordering Information

9322 HD/SD-SDI 16 Channel Audio De-Embedder with A/V Processing
RM20-9322-A 20-Slot Frame Rear I/O Module (Standard Width) HD/SD-SDI Input BNC, 4 AES Output BNCs, 2 HD/SD-SDI Output BNCs
RM20-9322-A/S 20-Slot Frame Rear I/O Module (Split; supports 2 cards) HD/SD-SDI Input BNC, 1 Reclocked Output BNC, 2 AES Output BNCs, 1 HD/SD-SDI Output BNC (connections are per card)
RM20-9322-B 20-Slot Frame Rear I/O Module (Standard Width) HD/SD-SDI Input BNC, 6 AES Output BNCs, 2 HD/SD-SDI Output BNCs
RM20-9322-C 20-Slot Frame Rear I/O Module (Double Width) HD/SD-SDI Input BNC, 12 AES Output BNCs, 2 HD/SD-SDI Output BNCs
RM20-9322-E 20-Slot Frame Rear I/O Module (Double Width) HD/SD-SDI Input BNC, 8 AES Output BNCs, RS-485 LTC / Metadata I/O Port, 2 HD/SD-SDI Output BNCs
RM20-9322-F 20-Slot Frame Rear I/O Module (Standard Width) HD/SD-SDI Input, 2 HD/SD-SDI Reclocked Outputs, 2 HD/SD-SDI Processed Outputs,  4 AES Outputs, RS-485 LTC / Metadata I/O Port
RM20-9322-G 20-Slot Frame Rear I/O Module (Standard Width) HD/SD-SDI Input BNC, 8 AES Output BNCs, HD/SD-SDI Output BNC
RM20-9322-E-HDBNC 20-Slot Frame Rear I/O Module (Standard Width) HD/SD-SDI Input, 8 AES Outputs, 2 HD/SD-SDI Outputs, 2 Reclocked HD/SD-SDI Outputs (HDBNC) (High Density)
RM20-9322-E-DIN 20-Slot Frame Rear I/O Module (Standard Width) HD/SD-SDI Input, 8 AES Outputs, 2 HD/SD-SDI Outputs, 2 Reclocked HD/SD-SDI Outputs (DIN 1.0/2.3) (High Density)
