The Cobalt® 9002 3G/HD/SD 1×9 Distribution Amplifier (Non-Reclocking) is a multi-rate 1×9 SDI and ASI distribution amplifier capable of equalizing 3G, HD, and SD signals. All outputs are non-inverting, allowing for distribution of ASI signals. Excellent receiver EQ performance allows up to 150m cable lengths for HD signals.
Key Features
Equalize up to 150m of Belden 1694A cable at 1.485 Gbit
Automatic rate detection/display for all industry-standard data rates
ASI distribution on all outputs
Available high-density rear modules allow up to 20 cards per frame
Remote control/monitoring via Dashboard ™ software or OGCP-9000 remote control panels
Hot-swappable
Five year warranty
Specifications
Electrical
Power: 2 Watts
3G/HD/SD-SDI Inputs
Number of Inputs: 1
Standard: SMPTE 424M, 292M, and 259M
Return Loss: >15 dB at 5 MHz – 1.485 GHz
>10 dB at 1.5 GHz to 3 GHz
Cable Length Equalized (w/Belden 1694A)
3 Gbps: 80m
1.485 Gbps: 150m
143-360 Mbps: 350m
3G/HD/SD-SDI Output
Number of outputs: 9 (ASI Compatible)
Standard: SMPTE 424M, 292M, and 259M
Signal Level: 800 mV nominal
Return Loss: >15 dB at 5 MHz – 1.485 GHz
>10 dB at 1.5 GHz to 3 GHz
Rise/Fall Time: <150 ps
Jitter (wideband): HD: < 0.2 UI
Diagrams

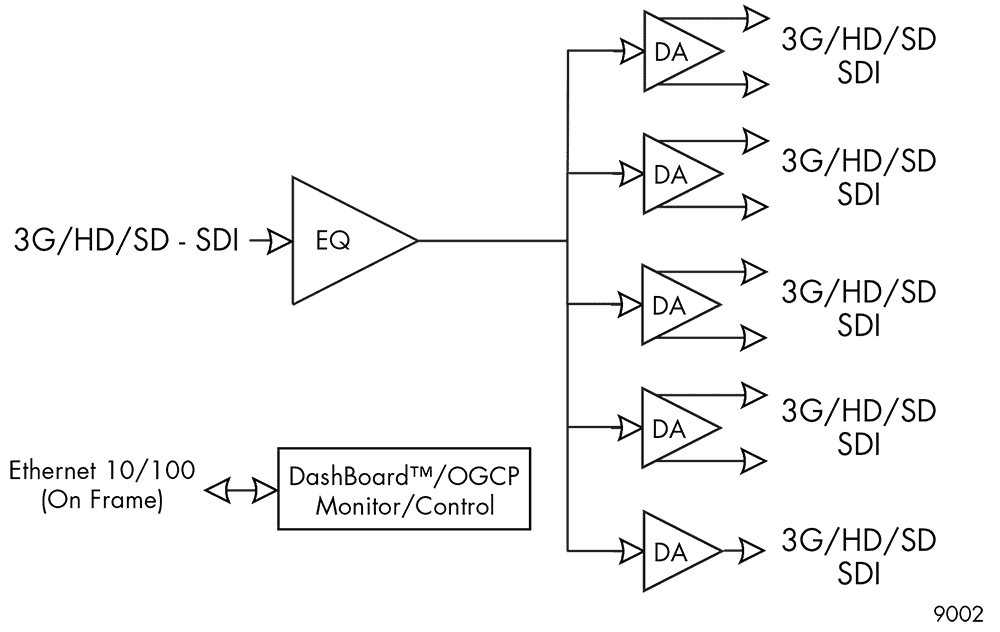

Block Diagram

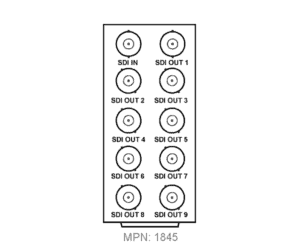

RM20-9002-A
- SDI In
- (9) SDI Out
(All coaxial connectors BNC)

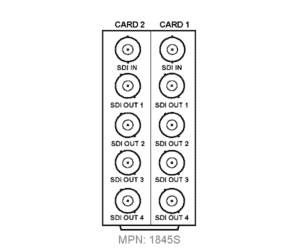

RM20-9002-A/S
(Dual-card (split) rear module; connections are per card)
- SDI In
- (4) SDI Out
(All coaxial connectors BNC)

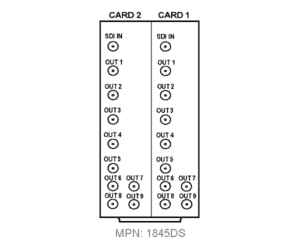

RM20-9002-B/S-DIN
(Dual-card (split) rear module; connections are per card)
- SDI In
- (9) SDI Out
(All coaxial connectors DIN1.0/2.3)
RM20-9002-B/S-HDBNC
(Dual-card (split) rear module; connections are per card)
- SDI In
- (9) SDI Out
(All coaxial connectors HDBNC)
