The Cobalt® 9004 Dual-Channel 3G/HD/SD Distribution Amplifier (Non-Reclocking) is a dual multi-rate SDI distribution amplifier capable of equalizing 3G, HD, and SD signals. Excellent receiver EQ performance allows for up to 160m cable lengths for HD signals.
The 9004 can be set up as either a single-channel 1:8, dual-channel 1:4, or 1:8 with failsafe using DashBoard™ remote control software or card-edge switches. In failsafe mode, the card automatically switches to the secondary input if the primary input is lost.
Key Features
Automatic rate detection for all industry-standard data rates
Equalize up to 160m of Belden 1694A cable at 1.485 Gb
Failsafe mode automatically switches to secondary input on loss of primary input
Available high-density rear modules allow up to 20 cards per frame
Remote control/monitoring via Dashboard ™ software or OGCP-9000 remote control panels
Hot-swappable
Five year warranty
Specifications
Electrical
Power: 3 Watts
3G/HD/SD-SDI Inputs
Number of Inputs: 2
Standard: SMPTE 424M, 292M,
and 259M
Return Loss: >15 dB at 5 MHz – 1.485 GHz
>10 dB at 1.5 GHz to 3 GHz
Cable Length Equalized (w/Belden 1694A)
3 Gbps: 100m
1.485 Gbps: 160m
143-360 Mbps: 350m
3G/HD/SD-SDI Output
Number of outputs: 8 (4 ASI Compatible)
Standard: SMPTE 424M, 292M, and 259M
Signal Level: 800 mV nominal
Return Loss: >15 dB at 5 MHz – 1.485 GHz
>10 dB at 1.5 GHz to 3 GHz
Rise/Fall Time: <150 ps
Jitter (wideband): HD: < 0.2 UI
Diagrams

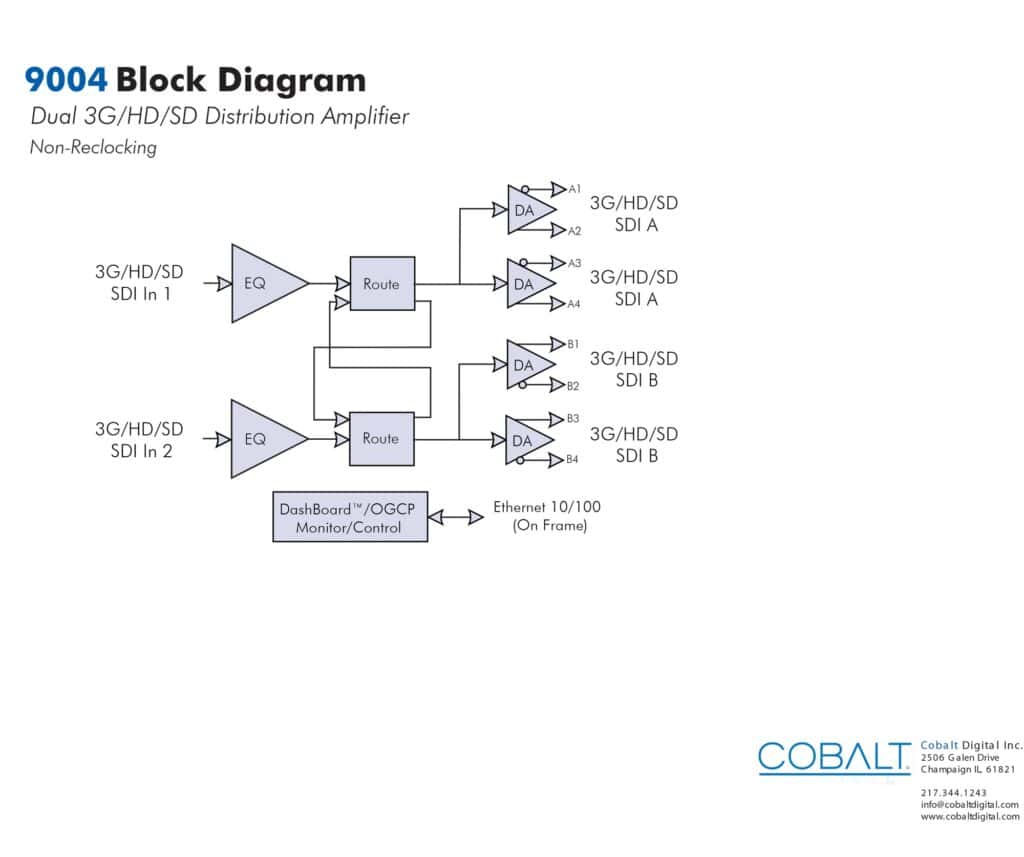

Block Diagram

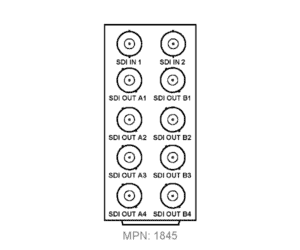

RM20-9004-A
- (2) SDI In
- (8) SDI Out (1×8 or 1×4/1×4 DA)
(All coaxial connectors BNC)
(OUT A1, OUT A3, OUT B2, and OUT B4 are inverting and not compatible with ASI)

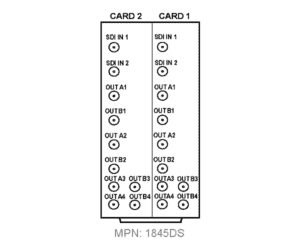

RM20-9004-B/S-DIN
(Dual-card (split) rear module; connections are per card)
- (2) SDI In
- (8) SDI Out (1×8 or 1×4/1×4 DA)
(All coaxial connectors DIN1.0/2.3)
(OUT A1, OUT A3, OUT B2, and OUT B4 are inverting and not compatible with ASI)
RM20-9004-B/S-HDBNC
(Dual-card (split) rear module; connections are per card)
- (2) SDI In
- (8) SDI Out (1×8 or 1×4/1×4 DA)
(All coaxial connectors HDBNC)
(OUT A1, OUT A3, OUT B2, and OUT B4 are inverting and not compatible with ASI)
