The 9220 Bidirectional ASI/MPTS Gateway can receive transport streams over ASI and transmit streams over IP, or receive transport streams over IP and transmit streams over ASI. It features up to 6 ASI ports, individually configurable as inputs our outputs. With option +TS, the 9220 can support up to six ASI/IP bidirectional conversions simultaneously (standard support with no additional licenses supports one ASI/IP bidirectional gateway).
The 9220 can be used to facilitate seamless plant distribution/contribution over IP. It also includes advanced redundancy protection features, allowing for automatic failover if the primary signal disappears. The card supports both unicast and multicast, with IGMP V1, V2 and V3. DashBoard™ remote control allows easy centralized control and monitoring access.
Key Features
Up to six ASI inputs/outputs supported (standard supports one ASI/IP gateway with up to five additional with corresponding +TS licensing)
Bidirectional ASI/IP encapsulation or de-encapsulation
1x Gigabit Ethernet IP interface (each GE port supports a maximum of 8 streams)
Optional 2x Gigabit IP interface
Multicast IGMP v1, v2, and v3 support
Hot-swappable
High density with 60 channels per 2RU frame
Energy-efficient 12 Watt power consumption
Remote control/monitoring via DashBoard™ software
Hot-swappable
Five year warranty
Specifications
Electrical
Power: 12 Watts (max)
DVB-ASI Input/Output
Number of ports: 6 (max) bi-directional, 75Ω BNC DVB-ASI
213Mbit/s maximum ASI TS bit-rate per port
Network I/O
Number of ports: 2, 100/1000Base-T RJ-45
IPv4, IPv6, UDP, and RTP
900Mbit/s usable GbE per Rx port
900Mbit/s usable GbE per Tx port
600Mbit/s maximum processing per card
213Mbit/s maximum ASI TS bitrate per port
Diagrams

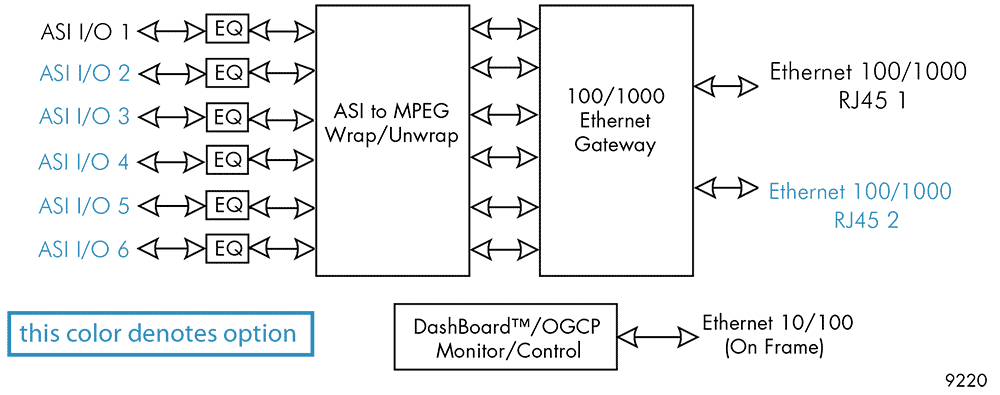

Block Diagram
RM20-9220-B

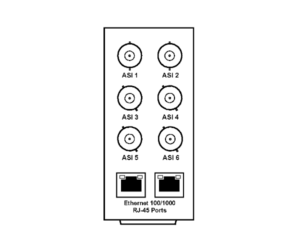

- (6) ASI In/Out (ASI 1 configured standard; ASI 2-6 configured as options)
- (2) GigE Ethernet Ports (Left port standard; second port configured as option)
(All coaxial connectors BNC)
