9220-SA
Bidirectional ASI/MPTS Standalone Gateway Unit
Product Categories
Standalone bidirectional ASI/IP gateway that can receive streams over ASI and transmit over IP, or receive over IP and transmit over ASI.
The Cobalt® 9220-SA Bidirectional ASI/MPTS Standalone Gateway Unit provides a compact form-factor standalone bidirectional ASI/IP gateway that can receive transport streams over ASI and transmit streams over IP, or receive transport streams over IP and transmit streams over ASI. Utilizing the openGear® open-architecture control/monitoring platform, the 9220-SA can be remotely controlled and monitored with the free, easy-to-use DashBoard™ setup and control operator interface. (When connected to your network, the 9220-SA appears in DashBoard just like any other device.)
The 9220-SA features up to 6 ASI ports, individually configurable as inputs or outputs. With option +TS-SA, the 9220-SA can support up to six ASI/IP bidirectional conversions simultaneously (standard support with no additional licenses supports one ASI/IP bidirectional gateway).
The 9220-SA can be used to facilitate seamless plant distribution/contribution over IP. It also includes advanced redundancy protection features, allowing for automatic failover if the primary signal disappears. The 9220-SA supports both unicast and multicast, with IGMP V1, V2 and V3. DashBoardâ„¢ remote control allows easy centralized control and monitoring access.
9220-SA Options
- Additional ASI or IP Transport Stream Output (+TS-SA)
- Second Gigabit Ethernet Port (+GBE-SA)
9220-SA
Key Features
Compact self-contained form with built-in AC power supply
Up to six ASI inputs/outputs supported (standard supports one ASI/IP gateway with up to five additional with corresponding +TS-SA licensing)
Bidirectional ASI/IP encapsulation or de-encapsulation
1x Gigabit Ethernet IP interface (each GE port supports a maximum of 8 streams)
Optional 2x Gigabit IP interface
Multicast IGMP v1, v2, and v3 support
Ethernet remote control/monitoring via free DashBoardâ„¢ software
Five year warranty
Specifications
Electrical
Power: 100-250 VAC, 47-63 Hz, 15W
DVB-ASI Input/Output
Number of ports: 6 (max) bi-directional, 75Ω BNC DVB-ASI
213Mbit/s maximum ASI TS bit-rate per port
Network I/O
Number of ports: 2, 100/1000Base-T RJ-45
IPv4, IPv6, UDP, and RTP
900Mbit/s usable GbE per Rx port
900Mbit/s usable GbE per Tx port
600Mbit/s maximum processing per card
213Mbit/s maximum ASI TS bitrate per port
Regulatory Compliance
CE: CE marked in accordance with 93/68/EEC (22/07/03) Directive
UL: UL approval
US FCC: Part 15
EMC: EN55022, EN55024, EN6100-3-2
Physical
Dimensions (WxHxD): 5.8 x 1.8 x 14 in (14.7 x 4.6 x 35.6 cm) (including component projection)

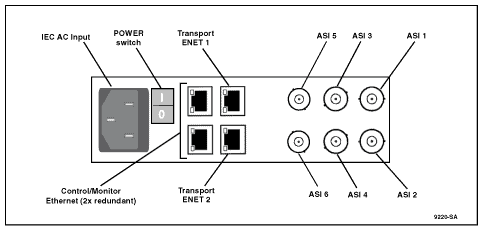

Diagrams

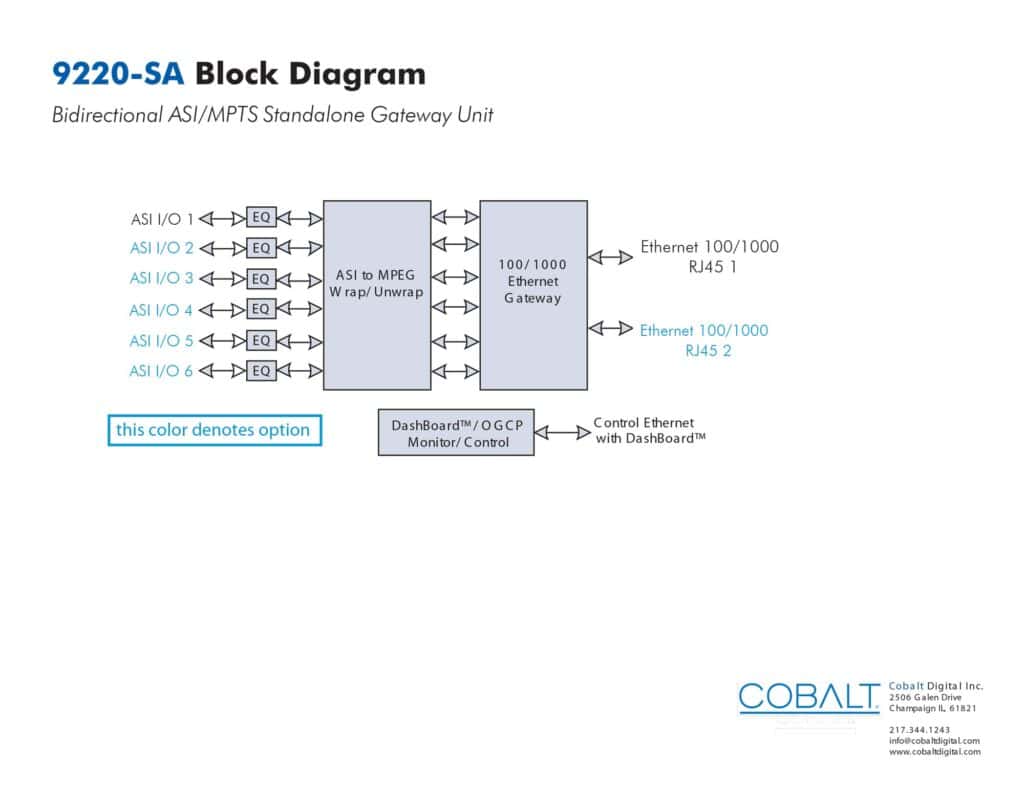

Block Diagram
Request a Quote for 9220-SA
