The 9223-D Dual-Channel 3G/HD/SD MPEG-4 Encoders provide a card-based solution for distribution of MPEG-4 encoding. Utilizing the openGear® open-architecture platform, the 9223-D offers scalable incorporation and the easy-to-use DashBoard™ setup and control operator interface. Up to 10 of the 9223-D cards can be installed in a 20-slot frame, offering distribution delivery of up to 20 individual or simulcast channels in a single frame, using less than 150W total, for reduced operating expenses. In addition to SD/HD-SDI inputs, the 9223-D provides the flexibility of supporting SD analog composite video and an analog audio stereo pair per input channel (using MPEG-1 Layer II audio encoding as standard).
The 9223-D offers the latest advances in video compression that delivers excellent video quality at very low bit rates. Unique encoding designs allow delivery of multiple HD and SD video services simultaneously. In addition to two ASI outputs, the 9223-D provides two Ethernet outputs, supporting full-duplex 100 Mb/s and 1 Gb/s operation. Input video auto-detect mode allows encoding to automatically configure an output that correspond to the input, with resolution and frame rate same as input, and scaling set to same as input or other applicable choices.
When using the Ethernet output, the 9223-D supports the traditional UDP/RTP/SPMTE 2022 FEC protocols, as well as the HTTP Live Streaming protocol for transmitting live video over the Internet. Using HTTP Live Streaming, the 9223-D can transmit broadcast-quality video to mobile phones (Apple and Android 4.0 supported), tablets, and a variety of consumer set-top boxes (such as the Amino A140 and the Roku Player).
RTMP support allows direct publishing of real-time, live content to Adobe® Media Servers or any other servers, web sites and CDNs with RTMP ingress, such as Justin.tv, UStream, LiveStream and Akamai. Publish professional-quality real-time SD/HD content to Internet viewers (including some critical features not available in PC-based software encoders) such as ancillary data support (closed-captioning, AFD) and SD-SDI/HD-SDI video inputs with embedded audio support – all in broadcast-grade video quality. SMPTE-2038 processing allows inserting generic ancillary data packets in the transport stream, with frame accuracy. Up to four DID/SDID pairs can be supported.
Full user remote monitor/control allows full card status and control access across a standard Ethernet network. Status monitoring is also available at card edge.
9223 encoders are also available in single encoding channel configuration. For info on 9223-S Single-Channel 3G/HD/SD MPEG-4 Encoder models, please see 9223-S.
The 9223-D is also available in stand-alone form factor BBG-1123-ENC2.
Key Features
Card-based design allows scalability, from 2 channels to 20 channels per frame
Input video auto-detect mode automatically configures output to correspond to input frame rate and scaling
Low power/high-density design; only 6 Watts per card
DVB-ASI and Ethernet outputs
Full support of CEA-608 and CEA-708 closed captioning and PMT information. Closed-captioning filtering allows filtering to allow and use only SMPTE-334M and/or CEA-708 closed captioning.
Support for inserting generic ancillary data packets in the transport stream using SMPTE-2038, with frame accuracy. Up to four DID/SDID pairs can be supported.
SCTE 104 to SCTE 35 conversion
License-based options allow tailoring functionality as needed, with upgrades available if later desired
Built-in video/audio ADC and embedder allows direct use with SD composite video and audio analog sources
RTMP support for publishing to Adobe® Media Server, availing SDI content to Internet viewers
HTTP Live Streaming protocol allows viewing by Apple® and Android™ 3.0 (or higher) devices
Multi-angle support allows creation of transport streams with two synchronized video PIDs
Optional support for additional audio pairs per encoded output
Optional RTP/ARQ support
Optional upgrade SD channel to HD up to 1080i
Optional upgrade SD Channel to HD up to 1080p
Optional upgrade HD 1080i Channel to HD up to 1080p
Built-in Packet Test Generators allow pre-validation of transport
Multiple pre-defined control templates provide automatic setup of popular contribution-to-distribution schemes
Remote control/monitoring via DashBoard™ software
Hot-swappable
Five year warranty
Specifications
Electrical
Power: 6 watts
3G/HD/SD-SDI Inputs
Number of inputs: 2, each configurable as:
3G-SDI (SMPTE 424M)
HD-SDI (SMPTE 292M)
SD-SDI (SMPTE 259M) with EDH
Composite analog video (PAL/NTSC)
Audio Inputs Supported
Embedded SDI, AC-3 (optional)
(2) L/R pairs (max) of analog audio embed
Video Encoding
Dual-channel HD Video:
MPEG-4 AVC High profile at level 4.2 (HP@L4.2)
MPEG-4 AVC High profile at level 4.0 (HP@L4.0)
CBR, VBR
2Mbps to 30Mbps (configurable)
Dual channel SD Video:
MPEG-4 AVC Main profile at level 3.0 (MP@L3.0)
CBR, VBR
1.5Mbps to 10 Mbps (configurable)
Audio Encoding
MPEG-1 layer II, up to 2 stereo pairs base (Dolby pass-thru)
MPEG-4 AAC-LC up to 2 pairs
Lip sync adjustment
Video Resolution Supported
HD: 1920 x 1080p 60/50/30/29.97/25
1920 x 1080/1440i 25/29.97/30
720 x 1280/960/640p 59.94/50/30/29.97/25
SD: 576 x 720/528i 29.97fps
576 x 720/528i 25fps
Video Pre-Processing
Advanced adaptive spatial filtering
Closed Captions CEA 608B and CEA-708C
WSS/AFD
ASI Outputs
Number of outputs: 2, 75Ω BNC DVB-ASI
213Mbit/s maximum ASI TS bit-rate per port
Ethernet Outputs
Number of outputs: 2, 100/1000Base-T RJ-45 ports, auto-negotiate or fixed speed
IPv4, IPv6, UDP, RTP
SMPTE 2022 ProMPEG FEC CoP3, ‘Forward Error Correction’ (Row and Column)
Regulatory Compliance
CE: CE marked in accordance with 93/68/EEC (22/07/03) Directive
UL: UL approval
US FCC: Part 15
EMC: EN55022, EN55024, EN6100-3-2
Diagrams

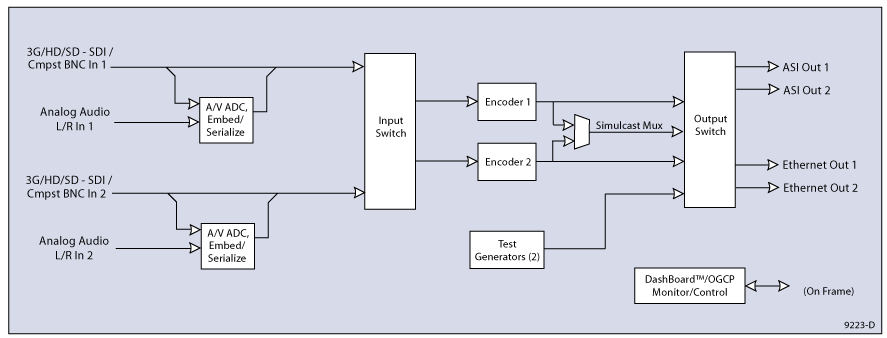

Block Diagram
RM20-9223-B
- (2) SDI/CVBS In (signal type selected in DashBoard card control)
- (2) ASI Out
- (4) Analog Audio In (2 L/R pairs; 3-pin balanced)
- (2) GigE Ethernet Ports
(All video coaxial connectors BNC)

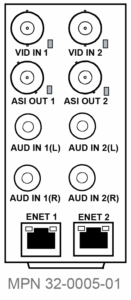

RM20-9223-U
- (2) SDI/CVBS In (signal type selected in DashBoard card control)
- (2) ASI Out
- (4) Analog Audio In (2 L/R pairs; RCA unbalanced)
- (2) GigE Ethernet Ports
(All video coaxial connectors BNC)
Notes:
• Unless indicated as program channel or audio channel pair license, licenses below are card-based licenses and require only one license per card.
• Options denoted as “+” are software-based options which can be fitted on new product at ordering or field-installed as a software upload upgrade. Options denoted as “-” are hardware-based options which are factory-installed upon ordering, or factory-installed by returning fielded product to Cobalt for option installation.
Audio Capacity (Base and with Audio Add Option Licenses +2A or +UP-AAC)
Base – (2) standard MP1L2 encoding licenses on 2 PIDs.
Add PIDs:
– Can have 4 audio PIDs total (2 additional +2A licenses or 2 additional +UP-AAC licenses).
