The Cobalt® ROYAL 9243 Analog Audio Distribution Amplifier with Remote Gain Control is a broadcast-quality balanced analog audio DA with stereo 2×4, mono 1×8, and stereo sum L+R x 8 selectable output modes.
Unlike most analog audio DAs, the 9243 electronic attenuators allow overall gain (stereo ganged) and per-channel trim (offset) via DashBoard™ remote control.
The space-saving design and very low power consumption of the 9243 provides for high density, allowing two cards to be collocated in adjacent slots and served by a single, standard – width “split” rear module.
Key Features
Full remote control of operating mode and gain control
Multiple modes — stereo 2x4, mono 1x8, and stereo sum L+R x 8 outputs
Full broadcast-grade balanced signal capability with 27dBu maximum input level support. Low-impedance outputs.
Selectable card switch control or DashBoard™ remote control (usable with DashBoard™ and Cobalt OGCP-9000 remote control panels)
Remote control via Ethernet using free DashBoard™ software. Full remote control of operating mode and gain control or use the optional OGCP-9000 remote control panel
Hot swappable openGear® card
Five-year warranty
Specifications
Analog Audio Inputs
Number of Inputs: (2) balanced
Impedance: > 20 kΩ, balanced
Maximum Input Level: +27 dBu
Connector Type: Phoenix® removable modular
Analog Audio Outputs
Number of Outputs: (8) balanced; available as stereo 2×4, mono 1×8, and stereo sum L+R x 8 outputs
Impedance: 60 Ω, balanced
Output Isolation: > 60 dBFF
Max Level: +26 dBu
Connector Type: Phoenix® removable modular
Performance
Gain: -15 dB to +15 dB Frequency Response: 20 – 20 kHz ±0.1 dB Noise: < -85 dBu, 10 – 22 kHz at unity gain Harmonic Distortion: < 0.01%
Diagrams

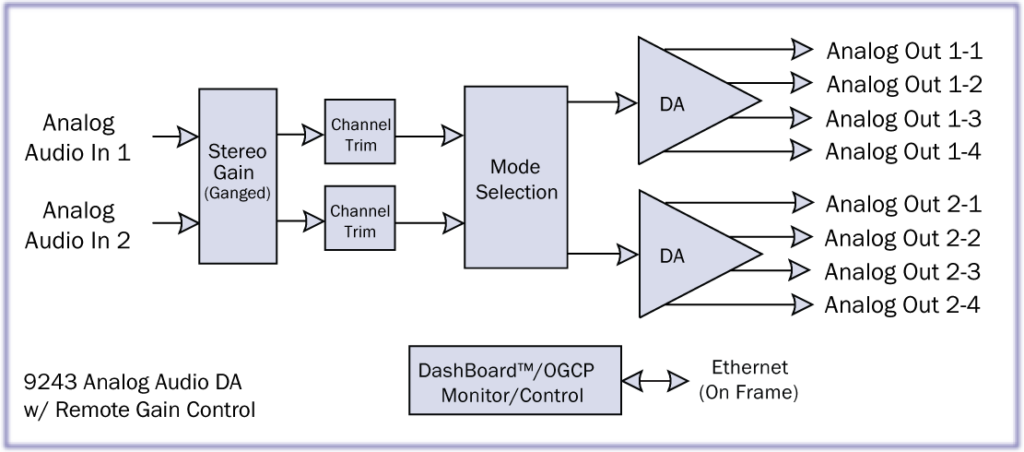

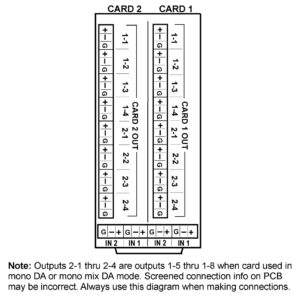

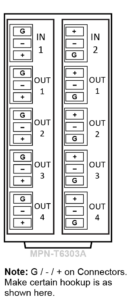

RM20-9243-B
20-Slot Frame Rear I/O Module (Standard Width) (2) Balanced Analog Audio Inputs,
(8) Balanced Analog Audio Outputs (Phoenix® connectors)

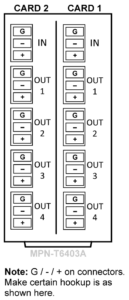

RM20-9243-C/S
20-Slot Frame Rear I/O Module (Split) 1×4 Balanced Analog Audio I/O (connections are per card) (Phoenix® connectors)
RM20-9243-D/S
20-Slot Frame Rear I/O Module (Split) Dual 1×4 Balanced Analog Audio I/O (connections are per card) (Phoenix® connectors)
