The COBALT® 9502-DCDA-3G provides 3G/HD-to-SD down-conversion with ARC and has versatility in providing up to four HD/SD-SDI processed outputs as well as up to four reclocked SDI input copies selectable from two SDI inputs. The space-saving design of the 9502-DCDA provides for high density, allowing two cards to be collocated in adjacent slots and served by a single, standard width “split” rear module. Up to 20 of the 9502-DCDA cards can be installed in a 20-slot frame.
The card can pass SD signals with re-aspect, if needed. AFD processing can detect an incoming AFD code and correspondingly set scaling to track with AFD. This processor also allows independent custom ARC to be applied for each incoming AFD code, and set the desired AFD code to be inserted on the output, even if there is no code detected on the input. Using a 10-bit video path, the 9502-DCDA can rate-convert 23.98 frame video to 59.94 fields, move progressive to interlace and is equipped with extensive user programmable reticule overlays.
Two discrete character burn strings can be inserted on output video, with each string inserted as static text and/or insert only upon LOS. Full proc control allows adjustment of white level, black level, color gain, and color phase. Factory presets enable a return to factory settings. The 9502 offers 3G down-conversion to 1080i, 720p, or SD-SDI. AES audio outputs can be de-embedded from selected embedded audio channels.
Preset save/load allows saving custom card settings while allowing one-button revert to factory settings. Layered presets allow invoking changes related only to a specific area of concern (audio routing, for example) while not changing any other processing settings or aspects. Full user DashBoard™ or Remote Control Panel remote control allows full status and control access over a standard Ethernet network.
9502-DCDA Options
- LTC In/Out Software Option (+LTC)
- 3G Upgrade for -HD model Software Option (+3G)
- Frame Sync Software Option (+FS)
- Color Correction Software Option (+COLOR)
- Extended Frame Sync Delay Option (+DLY)
Alternate Base Model
- 9502-DCDA-HD Downconverter/DA with HD/SD-SDI Input, HD/SD-SDI Processed Outputs, and SDI Input Reclocking
Key Features
Supports all popular formats: 480i, 576i, 720p, 1080i, 1080pSF, 1080p
Low power/high-density design allows up to 20 cards per frame; less than 18 Watts per card
Economical solution for 3G/HD downconversion to legacy SD monitoring systems. HD version further economizes for environments requiring only HD/SD support (field upgradeable to 3G with software license upload if later desired).
Full timecode and CEA 708 / CEA 608 conversion to SD VITC timecode and closed-captioning. Option +LTC allows bidirectional transfer between embedded video timecode formats and audio LTC.
Down-conversion scaling includes user-configurable ARC and AFD-controlled ARC
Auto-format detect/down-conversion of SMPTE 424M/292/259M formats
Full embedded audio processing with selectable downmix and AES audio de-embed. Dolby passthru on downconversions.
Remote control/monitoring via Dashboard™ software or OGCP-9000 remote control panels
Hot-swappable
Five year warranty
Specifications
Power
<18 Watts
SDI Input
Number of Inputs: 2
Standards: SMPTE 259M, 292M, 424M (9502-DCDA-3G only)
Supported Formats:
1080p59.94,50,29.97, 25, 24, 23.98
1080i59.94,50
625i50, 525i59.94
Cable Length, Minimum, 3G/HD/SD (Belden 1694A): 120m / 180m / 360m
Return Loss: 15 dB up to 1.485 GHz, 10 dB up to 2.970 GHz
Video Outputs
Number of Outputs: 4 dedicated reclocked output BNCs Up to 4 processed HD/SD-SDI
SDI Signal Level: 800 mV nominal
SDI Return Loss: >15 dB up to 1.485 GHz, >10 dB up to 2.970 GHz
SDI Jitter: SD: < 0.2 UI
SDI Embedded Audio: 16-Ch
Reference Video Input
Number of Inputs: 2 looping (openGear® frame)
Standard: Tri-level sync (SMPTE 274) and black burst (NTSC and PAL)
AES Output
Number of Outputs: 8-Ch (max) unbalanced (AES-3id)
Impedance: 75 Ω
Sample Rate: 48 kHz
Resolution: 24-bit
Frame Sync Audio/Video Delay (option +FS)
Max offset: 20 frames
Latency (min): 1 frame
Option +DLY Delay (3G/HD/SD): >800 msec / >1580 msec / >9000 msec
Diagrams

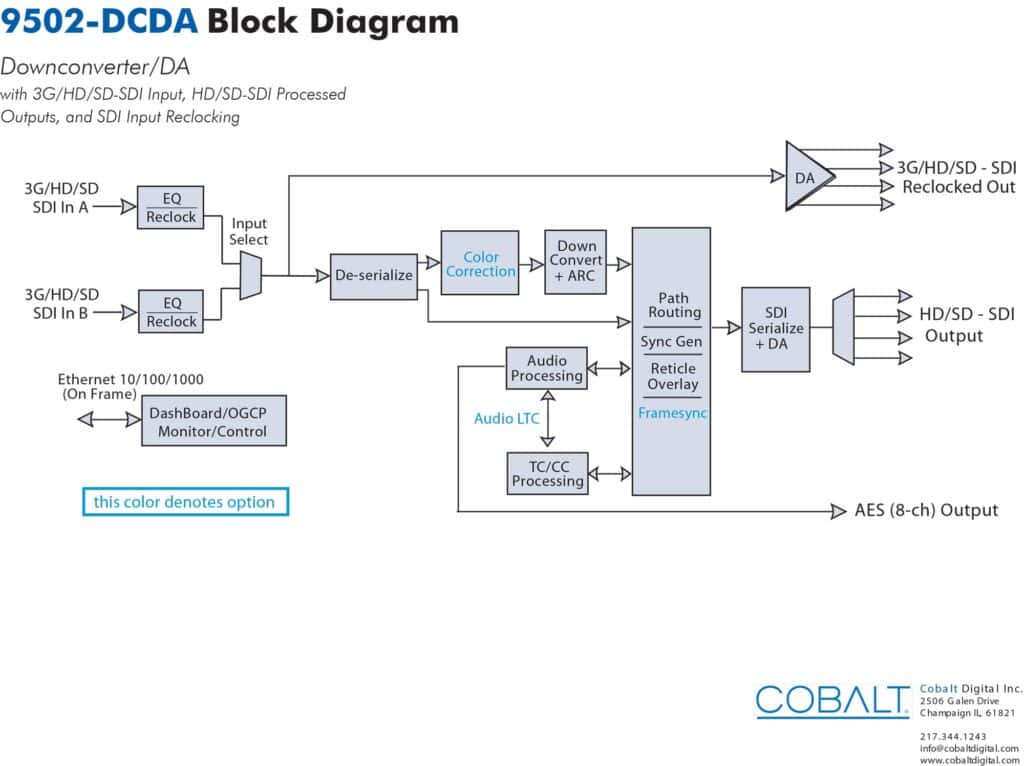

Block Diagram

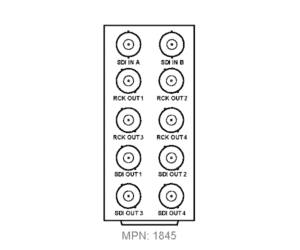

RM20-9502-A
- Dual SDI In (selectable manually or as failover)
- (4) Reclocked Input SDI Out
- (4) Processed SDI Out
(All coaxial connectors BNC)

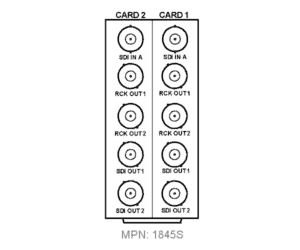

RM20-9502-A/S
(Dual-card (split) rear module; connections are per card)
- SDI In
- (2) Reclocked Input SDI Out
- (2) Processed SDI Out
(All coaxial connectors BNC)

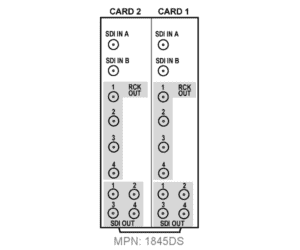

RM20-9502-C/S-DIN
(Dual-card (split) rear module; connections are per card)
- Dual SDI In (selectable manually or as failover)
- (4) Reclocked Input SDI Out
- (4) Processed SDI Out
(All coaxial connectors DIN1.0/2.3)
RM20-9502-C/S-HDBNC
(Dual-card (split) rear module; connections are per card)
- Dual SDI In (selectable manually or as failover)
- (4) Reclocked Input SDI Out
- (4) Processed SDI Out
(All coaxial connectors HDBNC)

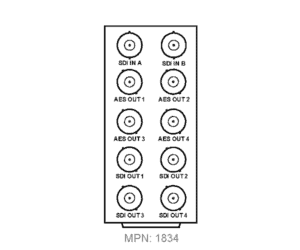

RM20-9502-F
- Dual SDI In (selectable manually or as failover)
- (4) AES Pair De-Embed Out (8-ch)
- (4) Processed SDI Out
(All coaxial connectors BNC)
