The Cobalt® 9923-DSK-LG 3G/HD/SD-SDI Downstream Keyer with Dual Key/Fill Paths and Logo Insertion card provides flexible SDI downstream keying and logo insertion. The single program video input can be directed to either or both of two key/fill/logo insertion paths, allowing changing from one key/fill/insertion scheme to another in an instant. The openGear® form factor card can also store up to four logo graphic files which can be flexibly inserted into either key/fill path. Two key/fill paths can be outputted simultaneously, with each path using uniquely different key/fill and logo insertions as desired. For each path, two discrete character burn strings and timecode can be inserted on output video.
The 9923-DSK-LG is a perfect solution for flexible multi-market program branding and keyed character generator crawl insertion.
The 9923-DSK-LG is also available in stand-alone form factor BBG-1023-DSK-LG.
Key Features
Dual independent key/fill engines and two processing paths allow changing from one key/fill/insertion scheme to another in an instant.
On-card memory stores logo/ID bug graphic files, with independent logo insertion on each key/fill path
Per-path dual independent burn-in text string and timecode insertion
Supports 3G/HD/SD-SDI inputs as program and key/fill
Convenient HDMI Preview Output allows preview of path 1 or path 2 outputs
Remote control/monitoring via Dashboard™ remote control and GPI
High-density openGear form factor – up to 10 cards per 20-slot frame
Hot-swappable
Five year warranty
Specifications
Power
< 18 Watts
Video Input/Outputs
Video Inputs: Video Inputs: (1) 3G/HD/SD-SDI Program Video SDI In; (2) 3G/HD/SD-SDI Key/Fill pair SDI In; all 75Ω
SDI Outputs: (2) 3G/HD/SD-SDI Program Video + Key/Fill SDI Out; 75Ω
HDMI Output: (1) HDMI output/preview (video only)
Formats Supported: SMPTE 259M, SMPTE 292M, SMPTE 424M
Receive Cable Length: 3G/HD/SD: 120/180/320 m (Belden 1694A)
Return Loss: >15 dB up to 1.485 GHz; >10 dB up to 2.970 GHz
Alignment Jitter: 3G/HD/SD: < 0.3/0.2/0.2 UI
Audio Output
16-ch embedded
Diagrams
Block Diagram
RM20-9923-DSK-LG-C-DIN
- (1) Program Video SDI In
- (2) Key/Fill Pair SDI In
- (2) SDI x2 Out
- (1) HDMI Preview Out
- GPI (HD-15 connector)
- 100/1000 BaseT Ethernet Control Port
(All coaxial connectors DIN1.0/2.3)

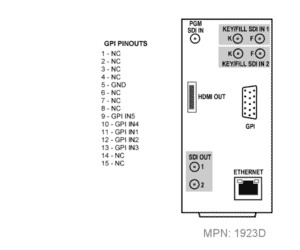

RM20-9923-DSK-LG-C-HDBNC
- (1) Program Video SDI In
- (2) Key/Fill Pair SDI In
- (2) SDI x2 Out
- (1) HDMI Preview Out
- GPI (HD-15 connector)
- 100/1000 BaseT Ethernet Control Port
(All coaxial connectors HDBNC)
RM20-9923-DSK-LG-E-DIN
- (1) Program Video SDI In (Relay bypass protected)
- (2) Key/Fill Pair SDI In
- (3) SDI x3 Out (OUT 1B relay bypass protected)
- (1) HDMI Preview Out
- GPI (HD-15 connector)
- 100/1000 BaseT Ethernet Control Port
(All coaxial connectors DIN1.0/2.3)

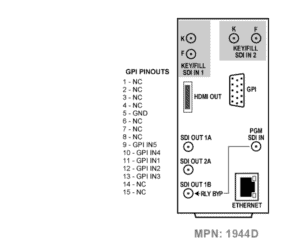

RM20-9923-DSK-LG-E-HDBNC
- (1) Program Video SDI In (Relay bypass protected)
- (2) Key/Fill Pair SDI In
- (3) SDI x3 Out (OUT 1B relay bypass protected)
- (1) HDMI Preview Out
- GPI (HD-15 connector)
- 100/1000 BaseT Ethernet Control Port
(All coaxial connectors HDBNC)
