9924-4FS-12G
Quad-Channel 12G-SDI Frame Sync with Audio Embedding/ De-Embedding of AES and MADI

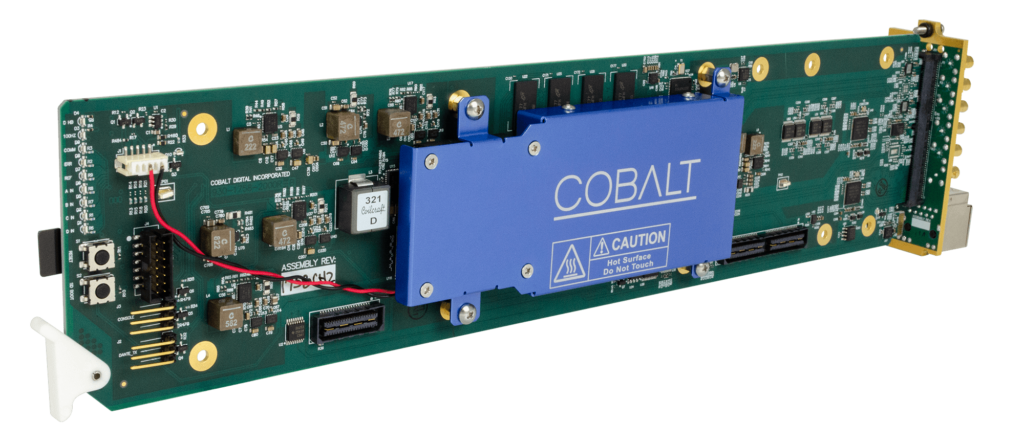

The Cobalt® 9924-4FS-12G Quad-Channel 12G-SDI Frame Sync with Audio Embedding/ De-Embedding of AES and MADI offers four independent signal paths of frame sync / audio embedding and de-embedding on a single open-Gear® card.
9924-4FS-12G
Key Features
Frame Sync with full H/V offset and manual/LOS video generator
Advanced audio processing allows routing, gain, delay and flexible mixing as standard features

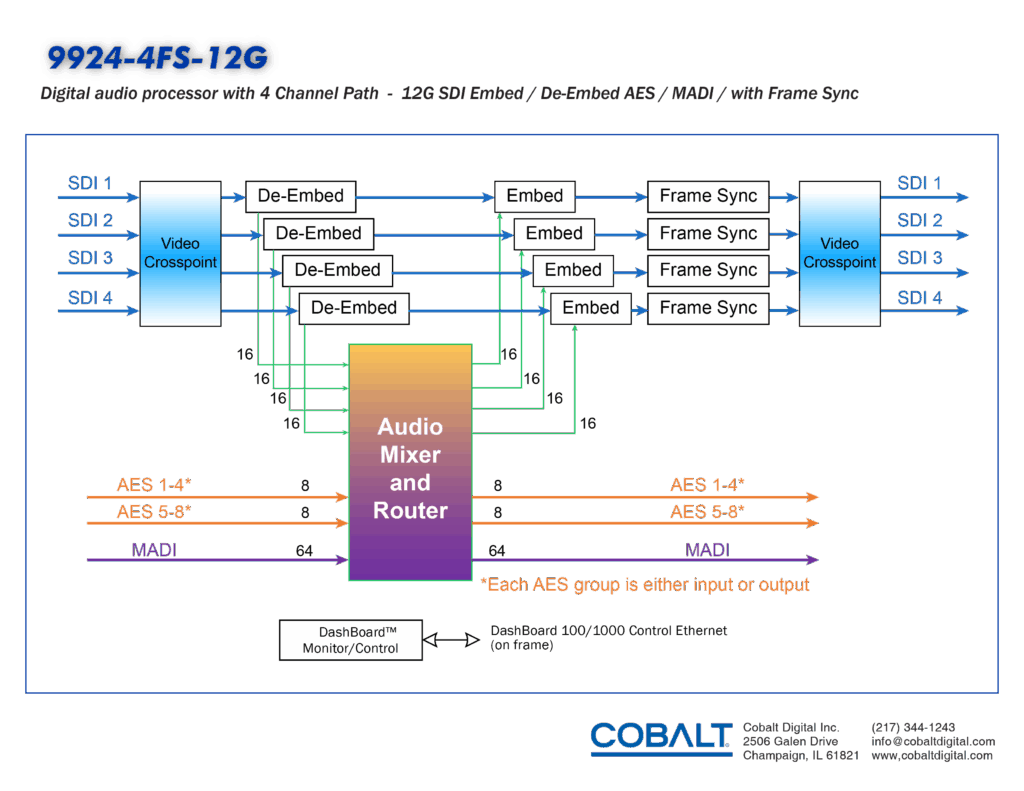

Full audio mixing between SDI, MADI, and AES
SDI Output crosspoint – connect any Output to any Input
Two Gigabit Ethernet ports (reserved for future use)
Remote control/monitoring via Dashboard™ software or OGCP-9000 remote control panels
Hot-swappable
Five year warranty
Specifications
12G/6G/3G/1.5G/SD-SDI Input/Outputs
(4) 75Ω inputs (max)
(4) 75Ω outputs (max)
SDI Formats Supported: SMPTE ST2082-1,10, 424M, 292M, SMPTE 259M-C.
Supports resolutions of: NTSC, PAL, 720p, 1080i, 1080psf, 1080p, and 2160p
Supports frame rate of: 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60
Return Loss:
> 5 dB up to 12 GHz
> 7 dB up to 6 GHz
> 10 dB up to 3 GHz
>15 dB up to 1.485 GHz
Input Cable Length:
45m Belden 1694A cable at 11.88 Gbps
120m Belden 1694A cable at 2.97 Gbps
240m Belden 1694A cable at 1.485 Gbps
400m Belden 1694A cable at 270 Mbps
Output Signal Level: 800 mV ±10%
DC Offset: 0 V ± 50 mV
Rise and Fall Time @ 11.88 Gbps: < 45 ps
Alignment Jitter (12G/6G/3G/1.5G/SD): < 0.3/0.3/0.3/0.2/0.2 UI
AES Audio Inputs/Outputs
(8) 75Ω coaxial ports; each block of 4 ports is software-configurable as Input or Output
MADI Audio Inputs/Outputs
(1) 75Ω Input
(1) 75Ω Output
Frame Reference Input
(2) reference from frame bus. SMPTE 170M/318M “Black Burst”, SMPTE 274M/296M “Tri-Level”
Power Inputs
< 30 Watts
Note: All specifications are subject to change.
Diagrams

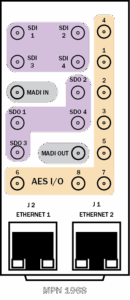

RM20-9924-4FS-A-HDBNC (MPN 1968)
20-Slot Frame Rear I/O Module (Double-Width)
(4) 12G/6G/3G/1.5G/SD-SDI Inputs
(4) 12G/6G/3G/1.5G/SD-SDI Processed Outputs
(8) AES I/O
(1) MADI Input
(1) MADI Output
(2) 1G Ethernet ports (reserved for future use)
*All coaxial connectors HDBNC
RM20-9924-4FS-A-HDBNC
20-Slot Frame Rear I/O Module (Standard-Width)
(4) 12G/6G/3G/1.5G/SD/SD SDI Inputs
(4) 12G/6G/3G/1.5G/SD/SD SDI Processed Outputs
(8) AES I/O
(1) MADI Input
(1) MADI Output
*All coaxial connectors HDBNC
Note: Mates to card in an odd-numbered frame slot.
