The 9930ADC-AES75-RG 75-Ohm (Unbalanced) 4-Channel Analog-To-2-Pair AES Audio Converter with Remote Gain Control is a broadcast-quality Analog-To-Digital Converter (ADC) that converts four professional-level balanced analog audio inputs to a pair of AES-3id outputs. Each AES output is available over a 2×1 distribution amplifier.
The 9930ADC-AES75-RG supports audio sampling frequencies from 32kHz to 96kHz using AES (DARS) reference, video black reference, or 48kHz internal reference (the AES sampling rate is determined by the reference selected). The 9930ADC-AES75-RG supports full 24 dBu input levels for outputs up to 0 dBFS digital.
A built-in DSP allows mono-mix and L/R-only outputs. Input sensitivity trim for both pairs of analog inputs allows the input ADC to be tailored to professional as well as consumer levels, thereby maximizing ADC performance for any input level.
The space-saving design and very low power consumption of the 9930ADC-AES75-RG provides for high density installation.
Key Features
High-density design accommodates two analog input pairs
2x1 DA outputs provided for each AES output
Full remote control of operating mode and input sensitivity control
Multiple DSP modes – stereo/pass-thru, mono mix, L/R only outputs
Supports audio sampling frequencies from 32 kHz to 96 kHz
Convenient input sensitivity trim optimizes ADC performance for various input levels. Control available via DIP or remote control
Selectable card switch control or DashBoard™ remote control (usable with DashBoard™ and Cobalt OGCP-9000 remote control panels)
Hot-swappable
Five year warranty
Specifications
Power
< 3.8 Watts
Analog Audio Inputs
Number of Inputs: (4; 2 stereo pairs), balanced
Impedance: >20 kΩ
Nominal Input Level: +4 dB
Connector Type: WECO® 3-pin removable
Reference Input
Signal (from frame): REF 1, REF 2 supplying AES3-id, DARS, or Video Black ref
Internal Reference: 48 kHz
Performance
Quantization: 24-bit
Frequency Response: ±0.5 dB (20 Hz to 20 kHz)
Jitter: <5 ns
S/N: -114 dB unweighted
S/N (at –20 dBFS): -118 dB (“A” weighted)
THD+N: <-110 dB (0.002%)
Separation: >100 dB
AES Outputs
Number of Outputs: (4; two 1×2 DA), unbalanced AES-3id BNC (available as stereo, pass-thru, mono-mixed, or L/R only)
Impedance: 75 Ω
Return Loss: -25 dB
Sample Freq. Range: 32 kHz to 69 kHz (per ref received)
Rise/Fall Times: 30 ns
Output Level: 1.0 Vp-p ±10%
Diagrams

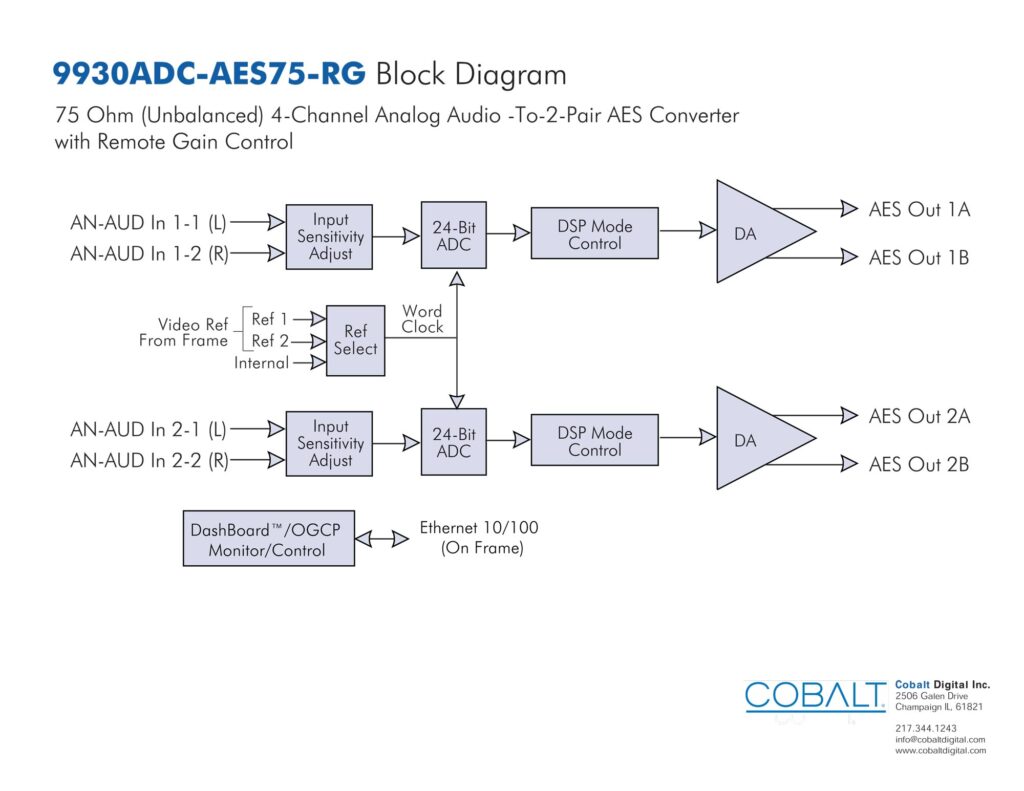

Block Diagram

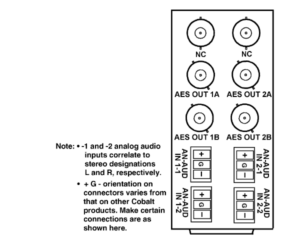

RM20-9930ADC75-B
- (4) Analog Audio In (AN-AUD IN 1-1 thru AN-AUD IN 2-2)
- (4) AES Audio Out (AES OUT 1A thru AES OUT 2B)
