The Cobalt® 9940-ACO 3G/HD/SD-SDI Multi-Input Intelligent Auto-Changeover Switch with Optional Trouble Slate Inserter allows manual selection of input, or failover to alternate inputs (Auto-Changeover) on loss of input conditions as well as user-configurable Video Quality Event intelligent assessments such as black/frozen frame or audio silence. Also included standard is closed captioning absence/presence detection for CEA 608/708 and line 21 SD closed captioning. Video Quality or Closed-Captioning event status can independently be propagated for each event type as GPO, automated alert email, input routing changes, or card user presets you can configure to provide any number of special actions such as routing changes or burn-in text alert messages. A user trouble slate graphic file can be uploaded to the card, which in turn can be automatically inserted in active video if any Video Quality Event triggered errors occur.
Two discrete character burn strings can be inserted on output video, with each string inserted as static text and/or insert only upon LOS. Any of several standard test patterns can be inserted as an input LOS marker. A moving-box insertion can serve as a dynamic raster confidence check even when the input video image is static. Timecode can be received and prioritized among any standard SMPTE embedded or audio LTC timecode, and in turn outputted and burned-in on the output video.
Preset save/load allows saving custom card settings while allowing one-button revert to factory settings. Layered presets allow invoking changes related only to a specific area of concern (audio routing, for example) while not changing any other processing settings or aspects. Full user DashBoard™ or Remote Control Panel remote control allows full status and control access locally or across a standard Ethernet network. GPIO allows direct input routing control and status monitoring.
The 9940-ACO is also available in stand-alone form factor BBG-1040-ACO.
Key Features
Multi-input, with manual selection or Intelligent Auto-Changeover failover. Latching relay bypass retains manual or failover input-to-output routing even in the event of power failure.
Intelligent Auto-Changeover can be set to invoke failover or alerts for basic input loss as well as intelligent failover/alert based on black/frozen frame or audio silence. Threshold and hold-off are user configurable.
Video Quality and Closed-Captioning Absence detection and flagging with GPO, automated alert email, input auto-changeover, or engage custom user preset actions
Moving-box/motion insertion enable serves as a dynamic raster confidence check even in cases where the input video image is static
Optional user trouble slate graphic import allows trouble slate to be displayed upon user-selectable input error conditions (such as CC or audio loss, or frozen frame)
Dual independent burn-in text string insertion allows condition-based insertion (such as basic ID text for valid input and different text message for failover conditions)
Timecode processing can prioritize, filter for, and convert between specific SMPTE embedded-video or audio LTC, with output/burn-in timecode using selected format
Frame sync with full H/V offset and manual/LOS video pattern generator. Frame sync can also convert raster format between 29.97/59.94 and 30/60 formats.
Full audio crosspoint with delay control available for all audio outputs
Remote control/monitoring via Dashboard™ software or OGCP-9000 remote control panels
Hot-swappable
Five year warranty
Specifications
Power
< 18 Watts
Video Input/Outputs
Up to (4) 75Ω BNC outputs (selectable as processed SDI IN or IN RCK).
SDI Formats Supported: SMPTE 259M, SMPTE 292M, SMPTE 424M
SDI Receive Cable Length: 3G/HD/SD: 120/180/320 m (Belden 1694A)
SDI Return Loss: >15 dB up to 1.485 GHz; >10 dB up to 2.970 GHz
SDI Alignment Jitter: 3G/HD/SD: < 0.3/0.2/0.2 UI
Minimum SDI Latency (framesync disabled):
SD: 127 pixels; 9.4 us
720p: 330 pixels; 4.45 us
1080i: 271 pixels; 3.65 us
1080p: 361 pixels; 2.43 us
Input Select/Auto-Changeover Failover
Manual selection (forced) of any input.
Failover to alternate input on loss of target input. Failover invoked upon LOS or user configurable parametric criteria such as black/frozen frame or audio silence.
– Black frame trigger configurable for black intensity threshold and persistence time.
– Frozen frame trigger configurable for frozen percentage difference and persistence time.
– Audio silence trigger configurable for dBFS floor threshold and persistence time.
Relay latching for manually or failover selected path retains routing in loss of power conditions.
Timecode Insertion/Burn-In
Burn-in and embedded video output timecode selected via user controls from input video SMPTE embedded timecode and/or audio LTC. Burn-in enable/disable user controls. Configurable for burn-in string of seconds, seconds:frames, seconds:frames:field. User controls for text size and H/V position.
Text Burn-In
(2) independent strings supported. Independent insertion controls for enable/disable and enable upon LOS. User controls for text size and H/V position.
Audio Output
16-ch embedded. User crosspoint allows routing of any embedded channel to any embedded channel output. Multi-frequency tone generator for each audio output. Downmix output available for any output channel pair. Master delay control; range of -33 msec to +3000 msec.
Frame Reference Input
(2) reference from frame bus. SMPTE 170M/318M “Black Burst”, SMPTE 274M/296M “Tri-Level”
GPIO
(2) GPI configurable to select input routing.
(2) GPO configurable to invoke upon input selected.
Diagrams

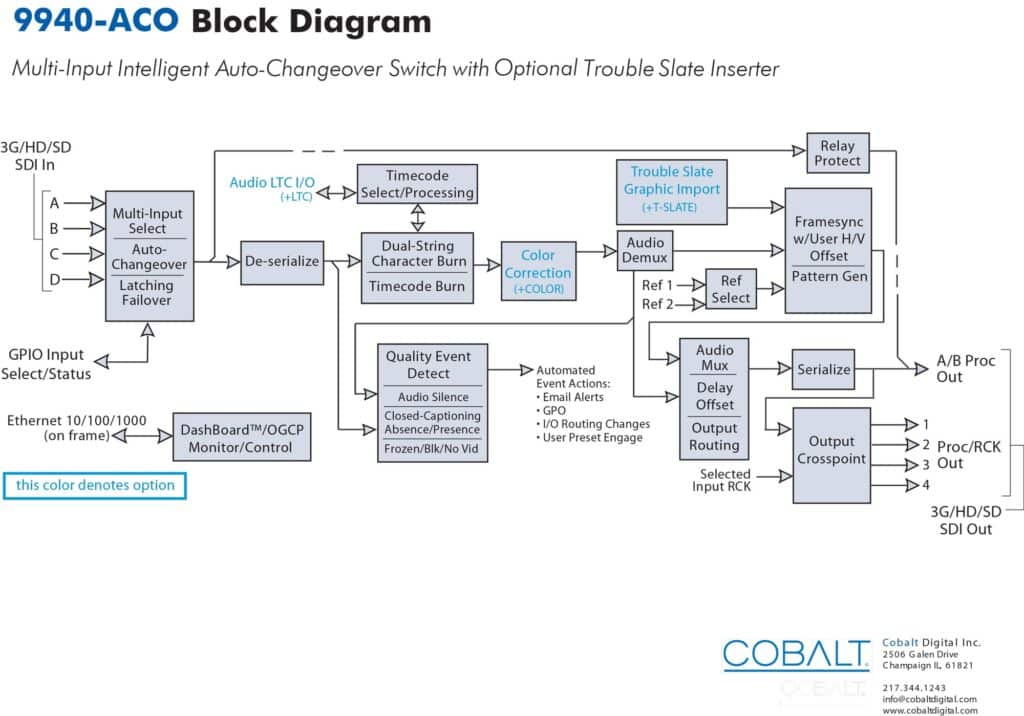

Block Diagram
Some Rear I/O Modules shown below may also be used for other Cobalt card models. This allows you to re-use rear modules from one card model to another. The Manufacturing Part Number (MPN) shown in the images below is the common code that is used to identify multi-use rear modules. Cross-compatibility can be checked using this number and About Cobalt Rear I/O Modules and Rear Module Cross-Reference at Reference and Help Documents.
RM20-9940-A/S
(Dual-card (split) rear module; connections are per card)
- (2) SDI In
- (3) SDI Out
(All coaxial connectors BNC)
RM20-9940-B/S-DIN
(Dual-card (split) rear module; connections are per card)
- (4) SDI In
(6) SDI Out
(All coaxial connectors DIN1.0/2.3)
RM20-9940-B/S-HDBNC
(Dual-card (split) rear module; connections are per card)
- (4) SDI In
(6) SDI Out
(All coaxial connectors HDBNC)
RM20-9940-C
- (4) SDI In (selectable manually or as failover)
- GPIO/COMM port (RJ-45)
- (4) SDI Out (each selectable as processed out or input RCK)
- (1) Relay protected SDI Out (proc or SDI IN B on loss of power)
(All coaxial connectors BNC)
RM20-9940-F
- (2) SDI In BNCs
- (1) SDI Out BNC with Relay Failover Protect
- (3) SDI Out BNCs (selectable as Proc out or RCK)
- (2) GPI
- (2) GPO
