The Cobalt® 9990-DEC-MPEG MPEG4 AVC and MPEG2 Decoder with ASI and IP Inputs and SDI Outputs provides a high performance real-time MPEG-2 and MPEG-4 SD and HD video decoding openGear® solution. Its design is practically future-proof and decodes traditional video formats such as UDP and RTP (MPEG Transport Stream) as well as Internet and Mobile formats such as RTMP (Adobe® Flash) and HLS (Apple® HTTP Live Streaming).
The 9990-DEC-MPEG supports newer cameras that output RTMP and security cameras that output RTSP. Its high-density, low power design saves on operating expenses, with up to 10 cards installed in a 20-slot openGear® frame.
IP and DVB-ASI input streams are supported, with outputs as ASI, DVB-ASI, SDI, HDMI, and CVBS (for SD streams) using MPEG4 AVC or MPEG2 decoding. The 9990-DEC-MPEG can decode from several audio codecs and provides Dolby® pass-thru. SMPTE-2038 processing allows de-embedding SMPTE-2038 generic ancillary data packets.
Full user DashBoard™ remote control allows full status and control access locally or across a standard Ethernet network. A complete SNMP MIB is also included.
Key Features
Comprehensive MPEG decoding solution – MPEG4 AVC and MPEG2 to ASI, SDI, HDMI and CVBS with built-in audio codecs. Up to two DA SDI BNC outputs. Convenience IP output also.
IP reception of unicast or multicast
DVB-ASI Turnaround to IP and ASI with SPTS Splitting
Supports RTMP and RTSP sources
MPEG-1 Layer II, AAC -LC, AAC-HE, E-AC-3 and AC-3 audio codecs standard (Dolby pass-thru; Dolby decode option available)
SMPTE-2038 processing allows de-embedding SMPTE-2038 generic ancillary data packets
Support for RTP/ARQ interoperability with +RTP/ARQ Cobalt Encoder option. (Decoder +ARQ license included standard.)
Support for selecting desired video PID in multi-angle streams
Several options available for scalable configuring
SNMP MIB included
Low-power/high-density design
Remote control/monitoring via Dashboard™ software
Hot-swappable
Five year warranty
Specifications
Power
< 8 Watts
Inputs
(1) DVB-ASI 75Ω BNC
(1) IP; 1000Base-T RJ-45
Gen lock (from frame ref 1/2)
Outputs
Up to (2) HD/SD-SDI 75Ω BNC (4:2:2 10-bit; dual SDI outputs available only on Rev 2 or higher hardware)
(1) HDMI
(1) CVBS 75Ω BNC
(1) DVB-ASI 75Ω BNC
(2) Analog Audio Out L/R (balanced 3-pin terminals or unbal RCA depending on rear module used)
Network Transport Protocols
UDP (Unicast or Multicast)
RTP (Unicast or Multicast)
RTMP Client or Server (Adobe Flash)
RTSP (Security Camera)
SMPTE 2022 Pro-MPEG-FEC
ARQ
HTTP Live Streaming (HLS) client
Video Resolution
3G*:
1920 x 1080p – 50/59.94/60
HD:
1920 x 1080i – 50/59.94/60
720 x 1280p – 50/59.94
SD:
480 x 720 – 29.97
576 x 720 – 25
Video Codec Supported
MPEG-2
H.264 4:2:0 High Profile
Audio Codec Supported/Processing
MPEG-1 Layer 2 (mp2)
AAC-LC
HE-AAC
AC-3, E-AC-3 (Dolby® pass-thru)
*These resolutions are only available with HDMI output.
Diagrams

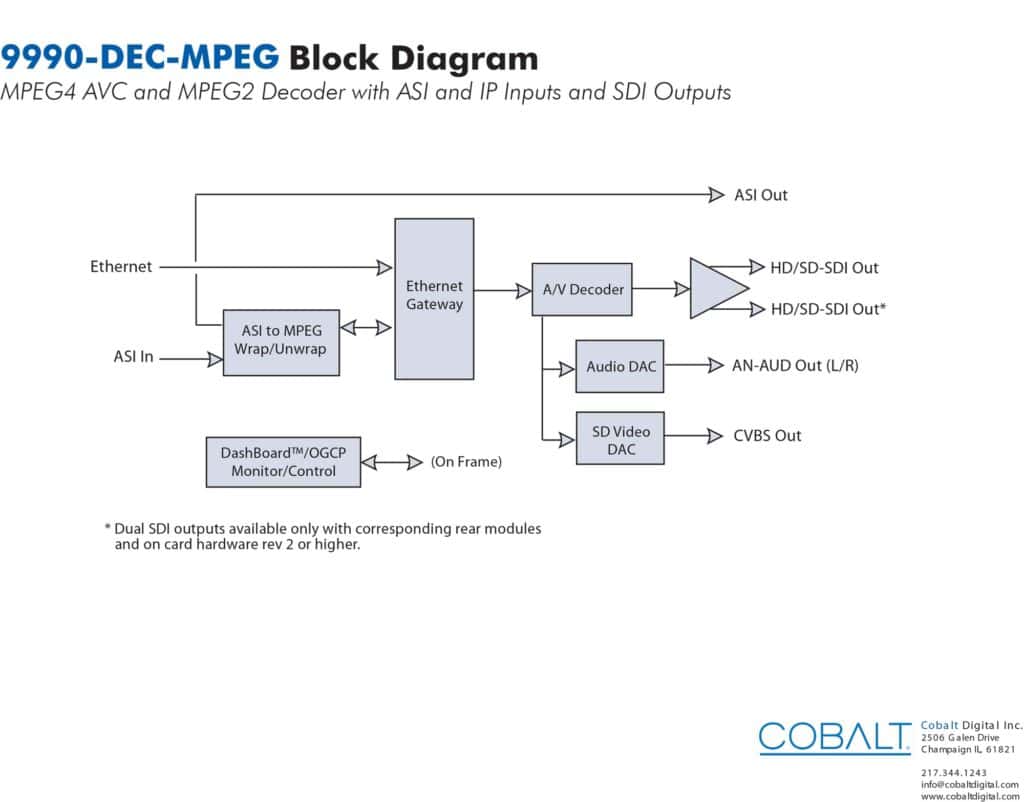

Block Diagram

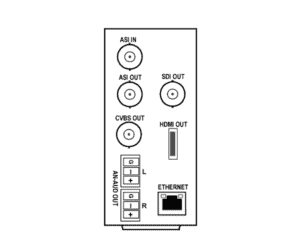

RM20-9990DECMPEG-B
- (1) ASI In BNC
- (1) ASI Out BNC
- (1) SDI Out BNC
- (2) Analog Audio Out (L/R pair; balanced)
- (1) CVBS Out BNC
- (1) HDMI Out
- (1) GigE Ethernet Port

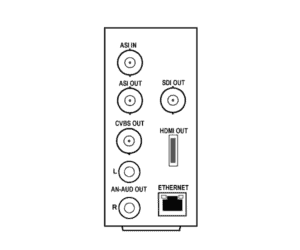

RM20-9990DECMPEG-C
- (1) ASI In BNC
- (1) ASI Out BNC
- (1) SDI Out BNC
- (2) Analog Audio Out (L/R pair; RCA unbalanced)
- (1) CVBS Out BNC
- (1) HDMI Out
- (1) GigE Ethernet Port

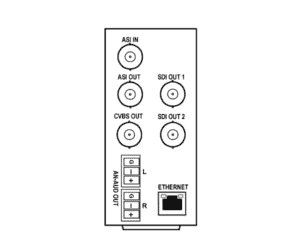

RM20-9990DECMPEG-D
- (1) ASI In BNC
- (1) ASI Out BNC
- (2) SDI Out BNC
- (2) Analog Audio Out (L/R pair; balanced)
- (1) CVBS Out BNC
- (1) GigE Ethernet Port
Note: Rear module compatible only with rev 2 or higher card hardware.

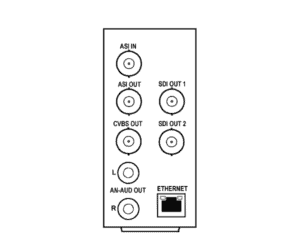

RM20-9990DECMPEG-E
- (1) ASI In BNC
- (1) ASI Out BNC
- (2) SDI Out BNC
- (2) Analog Audio Out (L/R pair; RCA unbalanced)
- (1) CVBS Out BNC
- (1) GigE Ethernet Port
Note: Rear module compatible only with rev 2 or higher card hardware.
