The Cobalt® 9990-ENC-H264-IP HD/SD-SDI/CVBS H.264 Encoder with Streaming IP Output provides a card-based solution for distribution of MPEG-4 encoding. The encoder is designed specifically for distribution, with cost savings of offering only streaming IP instead of IP and DVB-ASI which is not needed for distribution. The 9990-ENC-H264-IP is perfectly suited for IP video distribution over the Internet or over a dedicated IP link. Utilizing the openGear® open-architecture platform, the 9990-ENC-H264-IP offers easy-to-use DashBoard™ setup and control operator interface. Up to 10 of the cards can be installed in a 20-slot frame, using less than 150W total, for reduced operating expenses. In addition to HD/SD-SDI inputs, the 9990-ENC-H264-IP provides the flexibility of supporting SD analog composite video and an analog audio stereo pair per input channel.
The 9990-ENC-H264-IP offers the latest advances in video compression that delivers excellent video quality at very low bit rates. Unique encoding designs allow delivery of multiple HD and SD video services simultaneously. The 9990-ENC-H264-IP provides two Ethernet outputs, supporting full-duplex 100 Mb/s and 1 Gb/s operation. Input video auto-detect mode allows encoding to automatically configure an output that correspond to the input, with resolution and frame rate same as input, and scaling set to same as input or other applicable choices. SMPTE-2038 processing allows inserting generic ancillary data packets in the transport stream, with frame accuracy. Up to four DID/SDID pairs can be supported.
Using HTTP Live Streaming, the 9990-ENC-H264-IP can transmit broadcast-quality video to mobile phones (Apple and Android 4.0 supported) and tablets.
Full user remote monitor/control allows full card status and control access across a standard Ethernet network. Status monitoring is also available at card edge.
The 9990-ENC-H264-IP is also available in stand-alone form factor BBG-1190-ENC-H264-IP.
Key Features
Card-based design allows scalability, from 1 channel to 20 channels per frame
Input video auto-detect mode automatically configures output to correspond to input frame rate and scaling or convert formats using built-in UDX scaler
Low power/high-density design
Full support of CEA-608 and CEA-708 closed captioning. Closed-captioning filtering allows filtering to allow and use only SMPTE-334M and/or CEA-708 closed captioning.
Support for inserting generic ancillary data packets in the transport stream using SMPTE-2038, with frame accuracy. Up to four DID/SDID pairs can be supported.
SCTE 104 to SCTE 35 conversion
Built-in video/audio ADC and embedder allows direct use with SD composite video and audio analog sources
RTMP support for publishing to Adobe® Media Server, availing SDI content to Internet viewers. Streams to CDNs, Akamai, Ustream, YouTube, Wowza Cloud service and many others.
HTTP Live Streaming protocol allows viewing by Apple® and Android™ 3.0 (or higher) devices
Remote control/monitoring via DashBoard™ software
Hot-swappable
Five year warranty
Specifications
Electrical
Power: 6 Watts
Processing Channels
(1) channel
(Second additional channel available
with option -ENC-H264-IP)
HD/SD-SDI Input
(1) input/channel; each configurable as:
HD-SDI (SMPTE 292M)
SD-SDI (SMPTE 259M) with EDH
Composite analog video (PAL/NTSC)
Audio Inputs Supported
Embedded SDI (1 pair/channel)
Unbalanced or balanced stereo audio pair (see Ordering Information)
Video Encoding
MPEG-4 AVC High profile at level 4.2 (HP@L4.2)
MPEG-4 AVC High profile at level 4.0 (HP@L4.0)
CBR & VBR
2Mbps to 12Mbps (configurable)
SD Video:
MPEG-4 AVC Main profile at level 3.0 (MP@L3.0)
CBR & VBR
1.5Mbps to 10 Mbps (configurable)
Audio Encoding
MPEG-4 AAC-LC
Lip sync adjustment
Video Resolution Supported
HD: 1920 x 1080p 60/50/30/29.97/25
1920 x 1080/1440i 25/29.97/30
720 x 1280/960/640p 59.94/50/30/29.97/25
SD: 576 x 720/528i 29.97fps
576 x 720/528i 25fps
Video Pre-Processing
Closed Captions CEA 608B and CEA-708C
WSS/AFD
Management and Control
10/100Base-T Ethernet
Configuration Import/Export
Audible/visual fault warning
In-band and out-of-band control
SNMP v1, v2
Datasafe automated card configuration
Accurate bit rate control
Startup to streaming in seconds
Ethernet Outputs
Number of outputs: (2) 100/1000Base-T RJ-45 ports, auto-negotiate or fixed speed
IPv4, IPv6, UDP
Regulatory Compliance
CE: CE marked in accordance with 93/68/EEC (22/07/03) Directive
UL: UL approval
US FCC: Part 15
EMC: EN55022, EN55024, EN6100-3-2
Diagrams

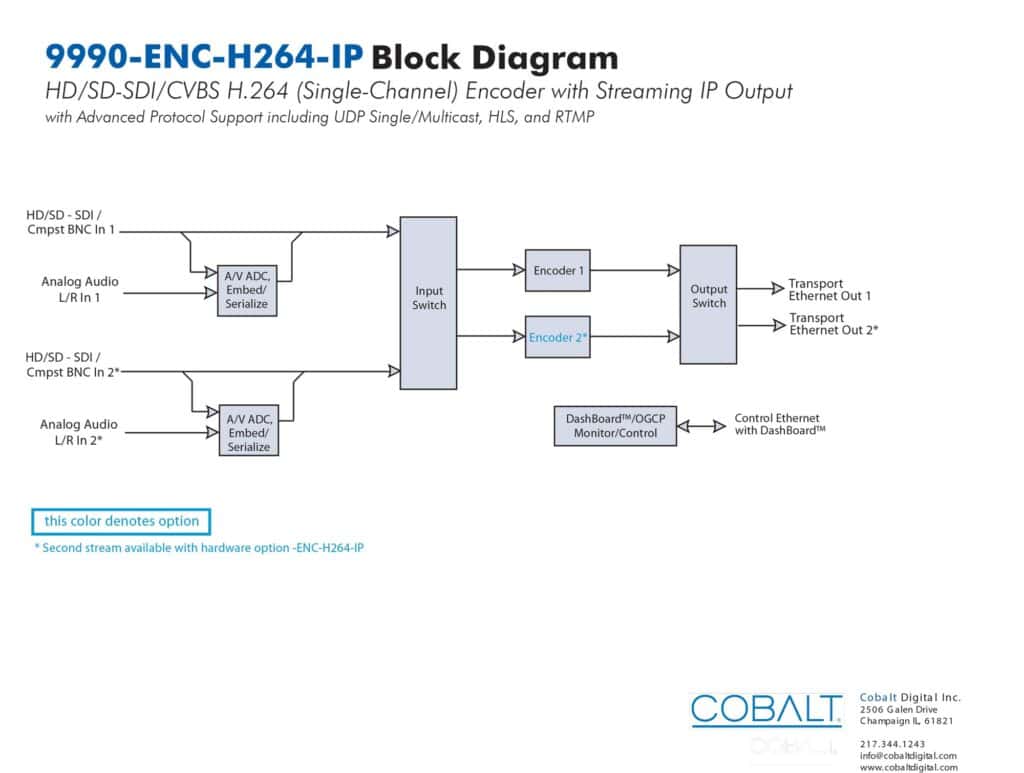

Block Diagram
RM20-9990-ENC-B
- (2) SDI/CVBS In (signal type selected in DashBoard card control)
- (4) Analog Audio In (2 L/R pairs; balanced)
- (2) GigE Ethernet Ports
(All video coaxial connectors BNC)

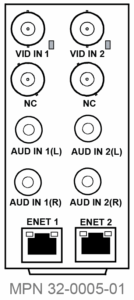

RM20-9990-ENC-U
- (2) SDI/CVBS In (signal type selected in DashBoard card control)
- (4) Analog Audio In (2 L/R pairs; RCA unbalanced)
- (2) GigE Ethernet Ports
(All video coaxial connectors BNC)
