The Cobalt® ARIA 9934-AUD-PRO-DSP 3G/HD/SD-SDI Advanced Audio Processor with DSP Audio Options Support and Full Embed/De-Embed provides a DSP-based platform that supports multiple audio DSP options. When optioned with various diverse audio processing options, the DSP-based processing core (which supports numerous simultaneous processing engines) uses license “credits” which allows flexible tailoring of multiple proc function instances. In this manner, the ARIA 9934-AUD-PRO-DSP provides much more flexibility than other audio processors that used fixed processing assets (for example, this flexibility allows “trading” credits for more Dolby encoders while backing out of loudness processors or other engine assets).
Audio proc options include Dolby® Real-Time Loudness Leveling automatic loudness processing, Dolby® encode/decode, and Linear Acoustic® UPMAX™ automatic upmixing. +DSP options can be ordered with new-card purchase, or field-installed as software option upgrades without removing the card from its frame. Included as standard features are downmixing, flex mixing, and full AES and balanced analog audio embed/de-embed.
Also included standard is bulk and per-channel audio delay controls that easily address lip-sync issues. Option +TTS provides high-quality Text-To-Speech synthesis, directly converting EAS text to digital audio speech with no baseband signal breakouts or add-ons. The ARIA 9934-AUD-PRO-DSP is available with numerous options that expand its function well beyond audio DSP and embed/de-embed to maximize frame processing density and system economy.
Quality Check option +QC allows failover to alternate inputs or other actions based on user-configurable criteria such as black/frozen frame, audio silence or CC absence. The 9934-AUD-PRO-DSP also provides analog CVBS video inputs and outputs, and analog audio embedding and de-embedding.
Preset save/load allows saving custom card settings while allowing one-button revert to factory settings. Layered presets allow invoking changes related only to a specific area of concern (audio routing, for example) while not changing any other processing settings or aspects. Full user DashBoard™ or Remote Control Panel remote control allows full status and control access locally or across a standard Ethernet network. GPIO allows direct input routing control and status monitoring.
The ARIA 9934-AUD-PRO-DSP is also available in stand-alone form factor BBG-1034-AUD-PRO-DSP.
Key Features
Supports all popular formats: 480i, 576i, 720p, 1080i, 1080pSF, 1080p
DSP-based platform supports multiple audio DSP options, with multiple instances available using allocatable license “credits”
Dolby encoding/decoding, loudness processing, and upmixing DSP audio options available
Auto Adjust feature helps assure lip sync by assessing and alerting where DSP processing requires matching video delay
Advanced audio processing allows routing, gain, smooth delay, and flexible mixing as standard features
Full audio crosspoint with 5.1-to-stereo downmix (standard) available for all audio outputs
CVBS analog video I/O and analog/AES embed / de-embed available
Option +ANC adds full user VANC/HANC packet insertion/extraction access to DID/SDID ancillary data such as camera PTZ, SCTE 104, closed captioning, and other specialized user payloads
Option +TTS provides Text-To-Speech synthesis, directly converting EAS text to high-quality digital audio speech with no baseband signal breakouts or add-on units
High-density design
Remote control/monitoring via Dashboard™ software or OGCP-9000 remote control panels
Hot-swappable
Five year warranty
Specifications
Power
24 Watts (includes +DSP options)
SDI Input/Outputs
Up to (4) 75Ω BNC inputs
Up to (4) 75Ω BNC outputs (selectable as processed SDI IN or IN RCK)
SDI Formats Supported: SMPTE 259M, SMPTE 292M, SMPTE 424M
SDI Receive Cable Length: 3G/HD/SD: 120/180/320 m (Belden 1694A)
SDI Return Loss: >15 dB up to 1.485 GHz; >10 dB up to 2.970 GHz
SDI Alignment Jitter: 3G/HD/SD: < 0.3/0.2/0.2 UI
Timing Jitter: 3G/HD/SD: < 2.0/1.0/0.2 UI
Minimum Latency:
SD: 127 pixels; 9.4 us
720p: 330 pixels; 4.45 us
1080i: 271 pixels; 3.65 us
1080p: 361 pixels; 2.43 us
Note: SDI Return loss and receive cable length are affected by rear I/O module used. Specifications represent typical performance.
CVBS Video Input/Outputs
(1) 75Ω BNC input
(1) 75Ω BNC output. CVBS output functional only when selected processed signal is carrying SD-SDI.
ADC Resolution: 9-bit
Sampling Frequency: 27 MHz (2x over-sampling)
Y/C Separation: 4 line Adaptive Comb Filter
Freq. Response: ± 0.25 dB to 5.5 MHz
SNR: > 50 dB to 5.5 MHz (unweighted)
Differential Phase: < 1 degree
Differential Gain: < 1%
Nonlinearity < 1%
Discrete Audio Input/Outputs
AES-3id 75Ω inputs (8 pair (16-Ch) max)
AES-3id 75Ω outputs (8 pair (16-Ch) max)
Input AES SRC Range: 32 to 96 kHz
Balanced analog audio inputs (4-Ch max)
Balanced analog audio outputs (4-Ch max)
(I/O conforms to 0 dBFS = +24 dBu)
Analog Output Impedance: < 50Ω
Analog Reference Level: -20 dBFS
Analog Nominal Level: +4 dBu
Analog Max Output Level: +24 dBu (0 dBFS)
Analog Freq. Response: ±0.2 dB (20 Hz to 20 kHz)
Analog SNR: 115 dB (A weighted)
Analog THD+N: -96 dB (20 Hz to 10 kHz)
Analog Crosstalk: -106 dB (20 Hz to 20 kHz)
Frame Sync Audio/Video Delay (option +FS)
Max offset: 20 frames
Latency (min): 1 frame
Option +DLY Delay (3G/HD/SD): >800 msec / >1580 msec / >9000 msec
User Delay Offset from Video
Bulk audio delay control: -33 msec to +3000 msec.
Per-channel audio delay controls: -800 msec to +800 msec.
GPIO
(2) GPI; (2) GPO
Diagrams

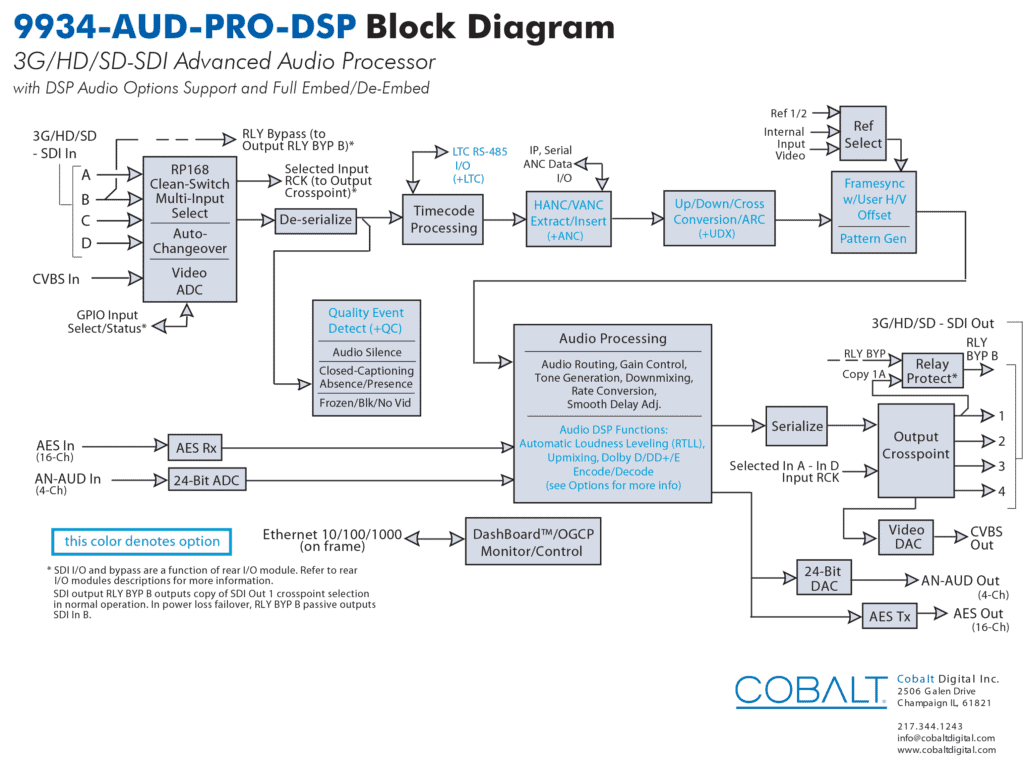

Block Diagram
Some Rear I/O Modules shown above may also be used for other Cobalt card models. This allows you to re-use rear modules from one card model to another. The Manufacturing Part Number (MPN) shown in the images below is the common code that is used to identify multi-use rear modules. Cross-compatibility can be checked using this number and About Cobalt Rear I/O Modules and Rear Module Cross-Reference at Reference and Help Documents.

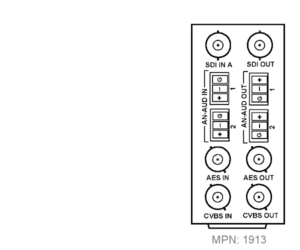

RM20-9934-B
- (1) SDI In
- (1) CVBS Analog Video In
- (2) Analog Audio Balanced In
- (1) AES In
- (1) SDI Out
- (1) CVBS Analog Video Out
- (2) Analog Audio Balanced Out
- (1) AES Out
(All coaxial connectors BNC)
RM20-9934-B-O
- (1) SDI In
- (1) CVBS Analog Video In
- (2) Analog Audio Balanced In
- (1) AES In
- (1) SDI Out
- (1) CVBS Analog Video Out
- (2) Analog Audio Balanced Out
- (1) AES Out
(All coaxial connectors BNC)

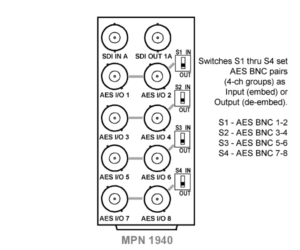

RM20-9934-C
- (1) SDI In
- (8) AES In/Out (each BNC pair selectable using PCB-mounted switch)
- (1) SDI Out
(All coaxial connectors BNC)

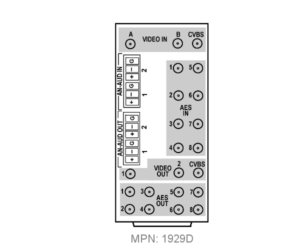

RM20-9934-D-DIN
- (2) SDI In (selectable manually or as failover)
- (1) CVBS In
- (8) AES In
- (2) Balanced Analog Audio In
- (2) SDI Out (each selectable as processed out or input RCK)
- (1) CVBS Out
- (8) AES Out
- (2) Balanced Analog Audio Out
(All coaxial connectors DIN1.0/2.3 or HD-BNC)
RM20-9934-D-HDBNC
- (2) SDI In (selectable manually or as failover)
- (1) CVBS In
- (8) AES In
- (2) Balanced Analog Audio In
- (2) SDI Out (each selectable as processed out or input RCK)
- (1) CVBS Out
- (8) AES Out
- (2) Balanced Analog Audio Out
(All coaxial connectors DIN1.0/2.3 or HD-BNC)

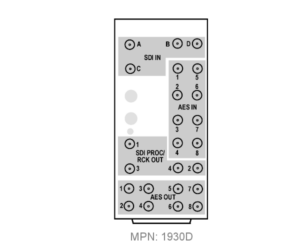

RM20-9934-E-DIN
- (4) SDI In
- (8) AES In
- (4) SDI Out (each selectable as processed out or input RCK)
- (8) AES Out
(All coaxial connectors DIN1.0/2.3 or HD-BNC)
RM20-9934-E-HDBNC
- (4) SDI In
- (8) AES In
- (4) SDI Out (each selectable as processed out or input RCK)
- (8) AES Out
(All coaxial connectors DIN1.0/2.3 or HD-BNC)

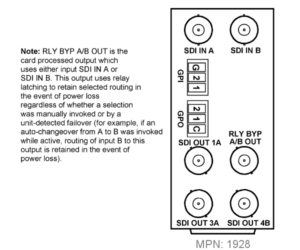

RM20-9934-F
- (2) SDI In
- (1) SDI Out with Relay Failover Protect
- (3) SDI Out (selectable as Proc out or RCK)
- (2) GPI
- (2) GPO
(All coaxial connectors BNC)

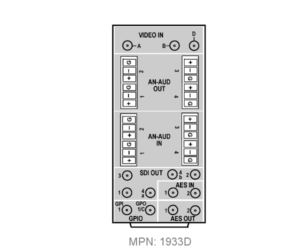

RM20-9934-H-DIN
- (3) SDI In (selectable manually or as failover)
- (2) AES In
- (4) Balanced Analog Audio In
- (5) SDI Out (each selectable as processed out or input RCK; 2x copy of SDI output 4)
- (2) AES Out
- (4) Balanced Analog Audio Out
- (1) GPI/6 Hz (coaxial)
- (1) GPO w/ isolated return; coaxial)
(All coaxial connectors DIN1.0/2.3)
RM20-9934-H-HDBNC
- (3) SDI In (selectable manually or as failover)
- (2) AES In
- (4) Balanced Analog Audio In
- (5) SDI Out (each selectable as processed out or input RCK; 2x copy of SDI output 4)
- (2) AES Out
- (4) Balanced Analog Audio Out
- (1) GPI/6 Hz (coaxial)
- (1) GPO w/ isolated return; coaxial)
(All coaxial connectors HD-BNC)

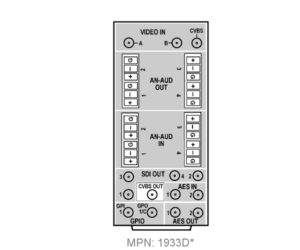

RM20-9934-J-DIN
- (2) SDI In (selectable manually or as failover)
- (1) CVBS In
- (2) AES In
- (4) Balanced Analog Audio In
- (4) SDI Out (each selectable as processed out or input RCK)
- (1) CVBS Out
- (2) AES Out
- (4) Balanced Analog Audio Out
- (1) GPI/6 Hz (coaxial)
- (1) GPO w/ isolated return; coaxial)
(All coaxial connectors DIN1.0/2.3)
RM20-9934-J-HDBNC
- (2) SDI In (selectable manually or as failover)
- (1) CVBS In
- (2) AES In
- (4) Balanced Analog Audio In
- (4) SDI Out (each selectable as processed out or input RCK)
- (1) CVBS Out
- (2) AES Out
- (4) Balanced Analog Audio Out
- (1) GPI/6 Hz (coaxial)
- (1) GPO w/ isolated return; coaxial)
(All coaxial connectors HD-BNC)
RM20-9934-K-DIN
- (4) SDI In
- (6) AES In
- (2) Balanced Analog Audio In
- (4) SDI Out (one output with relay bypass)
- (4) AES Out
- GPIO port (combined RJ-45)
(All coaxial connectors DIN1.0/2.3)
RM20-9934-K-HDBNC
- (4) SDI In
- (6) AES In
- (2) Balanced Analog Audio In
- (4) SDI Out (one output with relay bypass)
- (4) AES Out
- GPIO port (combined RJ-45)
(All coaxial connectors HD-BNC)

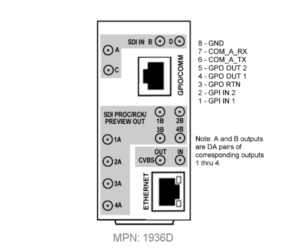

RM20-9934-L-DIN
- (4) SDI In
- CVBS In
- (8) SDI Out (1×2 DA output of each crosspoint output)
- CVBS Out
- COMM/GPIO port (RJ-45)
- 100/1000 BaseT Ethernet Control Port
(All coaxial connectors DIN1.0/2.3)
RM20-9934-L-HDBNC
- (4) SDI In
- CVBS In
- (8) SDI Out (1×2 DA output of each crosspoint output)
- CVBS Out
- COMM/GPIO port (RJ-45)
- 100/1000 BaseT Ethernet Control Port
(All coaxial connectors HD-BNC)
RM20-9934-N-DIN
- (4) SDI In
- (1) CVBS Analog Video In
- (4) Balanced Analog Audio In
- (8) AES In
- (8) SDI Out (1 with relay bypass protect)
- (1) CVBS Analog Video Out
- (4) Balanced Analog Audio Out
- (8) AES Out
- (1) GPIO (Combined RJ-45 connector)
- 100/1000 BaseT Ethernet Port
(All coaxial connectors DIN1.0/2.3)
RM20-9934-N-HDBNC
- (4) SDI In
- (1) CVBS Analog Video In
- (4) Balanced Analog Audio In
- (8) AES In
- (8) SDI Out (1 with relay bypass protect)
- (1) CVBS Analog Video Out
- (4) Balanced Analog Audio Out
- (8) AES Out
- (1) GPIO (Combined RJ-45 connector)
- 100/1000 BaseT Ethernet Port
(All coaxial connectors HD-BNC)
Note: On this DSP-equipped card, an adjacent card will not fit into the immediately adjacent slot to the front-of-frame right. (For example, if DSP-equipped card is in slot 8, an adjacent card will not fit in slot 9. This would be the case of an adjacent card that installs into an odd frame slot, or the case where a Split Rear Module serves two cards in the adjacent odd/even slot pairs (in this example slots 9/10)).
