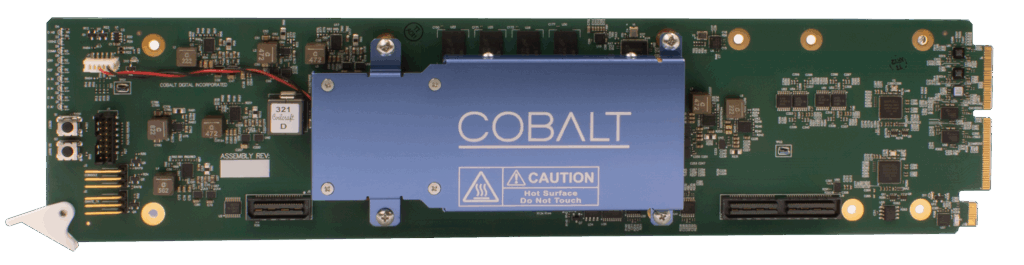

Cobalt® introduces the ARIA OG-AUD2-DANTE card in a openGear® form factor. The COBALT ARIA OG-AUD2-DANTE is a 2x channel unit with 12G SDI and DANTE/ AES/MADI which can simultaneously embed and de-embed audio between SDI, DANTE, AES and MADI with flexible routing and mixing. This card also includes a built-in frame sync. This openGear® card features two gigabit Ethernet ports, and a 32×32 Dante channel matrix mixer. The Cobalt ARIA OG-AUD2-DANTE — High-density, compact openGear® card-based solution, with multiple devices is able to be combined into a single frame for multi-channel operation, as well as offering the standard features of redundant hot-swappable power supplies and hot-swappable cards. Free DashBoard™ software for remote control and configuration.
Key Features
8 AES Inputs / Outputs each block of 4 ports is software configurable as Input or Output
Dual 1G Ethernet ports for redundant Dante operation
2) 12G SDI Inputs
2) 12G SDI Outputs
Embedding and De-embedding of AES I/O
Simultaneous embedding and de-embedding
DANTE matrix size: ARIA OG-AUD2-DANTE: 32x32
Full routing and mixing between SDI, DANTE, MADI and AES
SDI Output crosspoint – connect any Output to any Input
FIVE YEAR WARRANTY
Specifications
DANTE networked audio
12G/6G/3G/HD/SD/AES/MADI
AES em-bedding & de-embedding
12G/6G/3G/HD/SD-SDI Input/Outputs
(2) 75Ω inputs (max)
(2) 75Ω outputs (max)
SDI Formats Supported: SMPTE ST2082-1,10, 424M, 292M, SMPTE 259M-C.
Return Loss:
> 15 dB up to 1.485 GHz
> 10 dB up to 3 GHz
> 7 dB up to 6 GHz
> 5 dB up to 12 GHz
Input Cable Length:
45m Belden 1694A cable at 11.88 Gbps
120m Belden 1694A cable at 2.97 Gbps
240m Belden 1694A cable at 1.485 Gbps
400m Belden 1694A cable at 270 Mbps
Output Signal Level: 800 mV ±10%
DC Offset: 0 V ± 50 mV
Rise and Fall Time @ 11.88 Gbps: < 45 ps
Alignment Jitter (12G/3G/HD/SD): < 0.3/0.3/0.2/0.2 UI
AES Audio Inputs/Outputs
(8) 75Ω coaxial ports (max); port direction assignable as inputs or outputs in groups of 4 ports.
MADI Audio Inputs/Outputs
(2) 75Ω coaxial ports
See Rear Module illustrations for specific information.
Frame Reference Input
(2) reference from frame bus. SMPTE 170M/318M “Black Burst”, SMPTE 274M/296M “Tri-Level”
Note: All specifications are preliminary and subject to change.
Diagrams

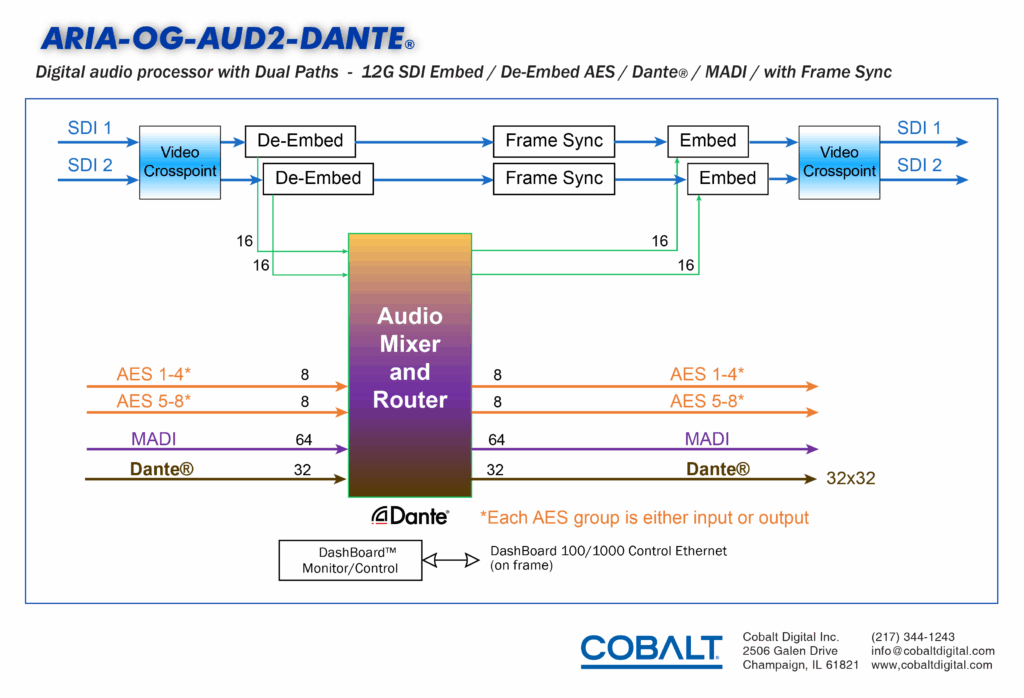

Block Diagram

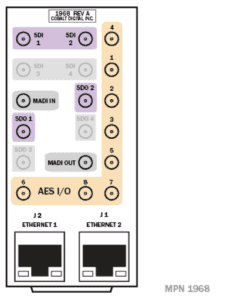

RM20-OG-AUD2-DANTE-A-DIN-HDBNC
- 2) SDI Inputs
- 2) SDI Outputs
- 1) MADI Input
- 1) MADI Output
- 8) AES I/O ports (controllable as Inputs or Outputs in two groups of 4)
- 2 Ethernet ports for Dante Audio networks
- All coaxial connectors are HDBNC
