ARIA OG-AUD4-DANTE
Quad Path 12G SDI DANTE/AES/MADI/Embed/De-Embed functions
Product Categories
12G / 4K-UHD12G Signal Processors
Embedders / De-EmbeddersAES Embedders/De-Embedders
Audio Processors12G Audio Processors
openGear® CardsEmbedders and De-Embedders
Simultaneously embed and de-embed audio between SDI, DANTE, AES and MADI with flexible routing and mixing.
Cobalt Digital introduces the ARIA OG-AUD4-DANTE — a DANTE® card in openGear® form factor. The COBALT ARIA OG-AUD4-DANTE is a quad path unit with 12G SDI and DANTE/AES/MADI which can simultaneously embed and de-embed audio between SDI, DANTE, AES and MADI with flexible routing and mixing.
This card also includes a built-in frame sync.
This openGear card features two gigabit Ethernet ports, and a 64×64 DANTE channel matrix mixer.
The Cobalt ARIA OG-AUD2-DANTE — High-density, compact openGear card-based solution, allows multiple devices to be installed in a single frame for up to 40 paths per 20-slot frame, as well as offering the standard features of redundant hot-swappable power supplies and hot-swappable cards.
ARIA OG-AUD4-DANTE
Key Features
(4) SDI Inputs and Outputs, capable of up to 12G-SDI operation
(1) MADI Input and (1) MADI Output
(8) AES inputs/outputs – each block of 4 ports is software configurable as Input or Output
Simultaneous embedding and de-embedding
DashBoard™ Ethernet control and set up
Full routing and mixing between SDI, DANTE, MADI, and AES
SDI Crosspoints - Connect any Input to any Processing Path and any Processing Path to any Output.
(2) Gigabit Ethernet ports for redundant DANTE operation
ARIA OG-AUD4-DANTE, DANTE matrix size: 64x64
Five year warranty
Specifications
12G/6G/3G/1.5G/SD-SDI Input/Outputs
(4) 75Ω inputs (max)
(4) 75Ω outputs (max)
Supports resolutions of: NTSC, PAL, 720p, 1080i, 1080psf, 1080p, and 2160p
Supports frame rate of: 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60
SDI Formats Supported: SMPTE ST2082-1,10, 424M, 292M, SMPTE 259M-C. All inputs/outputs 12G compliant.
MADI Input/Outputs
(1) 75Ω MADI input
(1) 75Ω MADI output
AES Input/Outputs
(8) 75Ω AES Input/Outputs. Each block of four ports is software-configurable as Input or Output.
1G Ethernet Ports
(2) 1G Ethernet ports
Return Loss:
> 5 dB up to 12 GHz
> 7 dB up to 6 GHz
> 10 dB up to 3 GHz
> 15 dB up to 1.485 GHz
Input Cable Length:
45m Belden 1694A cable at 11.88 Gbps
120m Belden 1694A cable at 2.97 Gbps
240m Belden 1694A cable at 1.485 Gbps
400m Belden 1694A cable at 270 Mbps
Power Output: < 35 Watts
Output Signal Level: 800 mV ± 10%
DC Offset: 0 V ± 50 mV
Rise and Fall Time @ 11.88 Gbps: < 45 ps
Alignment Jitter (12G/3G/1.5G/SD):
< 0.3/0.3/0.2/0.2 UI
Frame Sync Audio/VIdeo Delay
Max offset: 20 frames
Latency (min): 1 frame
User Audio Delay Offset from Video
Bulk delay control: -33 msec to +3000 msec.
Per-channel delay controls: -800 msec to +800 msec
Frame Reference Input
(2) reference from frame bus. SMPTE 170M/318M “Black Burst”, SMPTE 274M/296M “Tri-Level”
Frame Loading
(Max. recommended number of ARIA OG-AUD4-DANTE cards supported per Frame Model)
• HPF-9000 Frame: (5) cards
• HPF-9500 Frame: (5) cards
• HPF-MAX Frame: (10) cards
• OG3 Frame: (5) cards
• oGx Frame: (7) cards
Diagrams

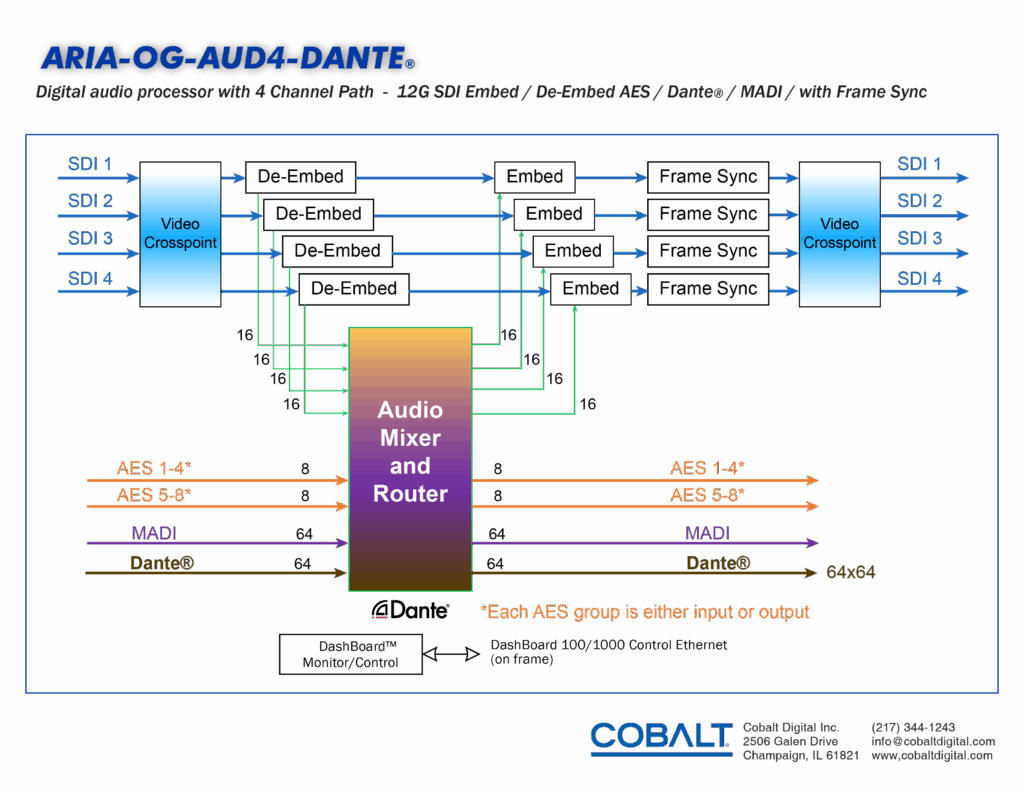

Block Diagram

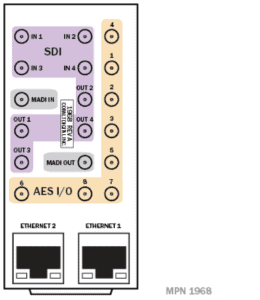

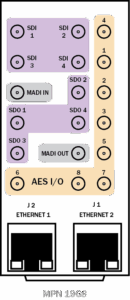

RM20-OG-AUD4-DANTE-A-HDBNC
20-Slot Frame Rear I/O Module (Standard-Width)
(4) 12G/6G/3G/1.5G/SD-SDI Inputs
(4) 12G/6G/3G/1.5G/SD-SDI Processed Outputs
(8) AES I/O
(1) MADI Input
(1) MADI Output
(2) 1G Ethernet ports
*All coaxial connectors are HDBNC
MPN 1968 Note: Mates to card in an even-numbered frame slot.
