The Cobalt® BBG-1023-DSK-LG 3G/HD/SD-SDI Standalone Downstream Keyer with Dual Key/Fill Paths and Logo Insertion provides flexible SDI downstream keying and logo insertion. The single program video input can be directed to either or both of two key/fill/logo insertion paths, allowing changing from one key/fill/insertion scheme to another in an instant. The BBG-1023-DSK-LG can also store up to four logo graphic files which can be flexibly inserted into either key/fill path. Two key/fill paths can be outputted simultaneously, with each path using uniquely different key/fill and logo insertions as desired. For each path, two discrete character burn strings and timecode can be inserted on output video.
The BBG-1023-DSK-LG is a perfect solution for flexible multi-market program branding and keyed character generator crawl insertion.
The BBG-1023-DSK-LG can be remote-controlled using DashBoard™. GPI allows direct control.
The compact standalone form factor allows desktop usage, as well as the 1/3-rack size of the BBG-1023-DSK-LG allowing 3 units to be installed in a 1RU space (an optional mounting tray is available that provides secure mounting of the units to a standard 19” frame).
Key Features
Dual independent key/fill engines and two processing paths allow changing from one key/fill/insertion scheme to another in an instant.
On-card memory stores logo/ID bug graphic files, with independent logo insertion on each key/fill path
Supports 3G/HD/SD-SDI inputs as program and key/fill
Per-path dual independent burn-in text string and timecode insertion
Convenient HDMI Preview Output allows preview of path 1 or path 2 outputs
Remote control/monitoring via DashBoard™ software, OGCP-9000 Remote Control Panel, GPI, or Web Browser User Interface
Redundant power supply option
Compact footprint – up to 3 units in a 1RU space. Optional tray provides secure captive-fastener mounting of 3 units in a 1RU tray.
Five-Year warranty
Specifications
Power
< 18 Watts. Power supplied by 12VDC AC adapter, universal input (included).
Video Input/Outputs
Video Inputs: Video Inputs: (1) 3G/HD/SD-SDI Program Video SDI In; (2) 3G/HD/SD-SDI Key/Fill pair SDI In; all 75Ω
SDI Outputs: (2) 3G/HD/SD-SDI Program Video + Key/Fill SDI Out; 75Ω
HDMI Output: (1) HDMI output/preview (video only)
Formats Supported: SMPTE 259M, SMPTE 292M, SMPTE 424M
Receive Cable Length: 3G/HD/SD: 120/180/320 m (Belden 1694A)
Return Loss: >15 dB up to 1.485 GHz; >10 dB up to 2.970 GHz
Alignment Jitter: 3G/HD/SD: < 0.3/0.2/0.2 UI
Audio Output
16-ch embedded
Physical
Dimensions (WxHxD): 5.7 x 1.4 x 14.7 in (14.5 x 3.5 x 37.3 cm) Dimensions include connector projections.
Weight: 6 lb (2.8 kg)
Diagrams

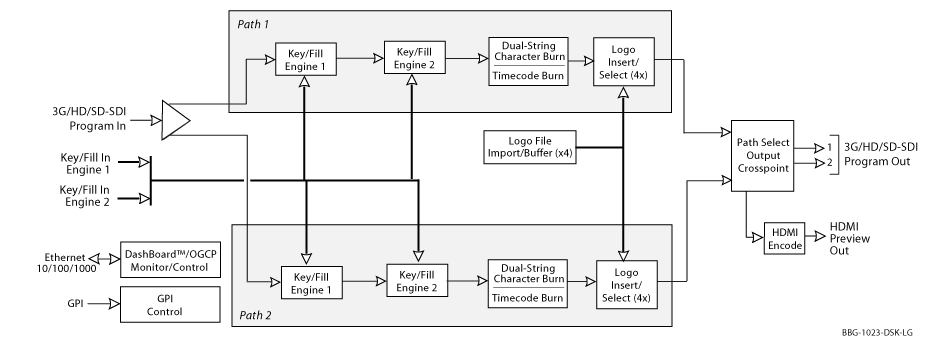

Block Diagram

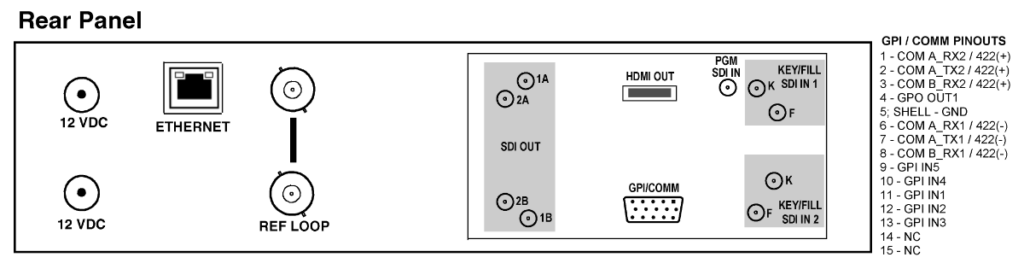

Rear Panel
The BBG-1023-DSK-LG is available with the following rear-panel I/O configurations. These rear panel modules/layouts are not swappable.
BBG-1023-DSK-LG-C-DIN
- (1) 3G/HD/SD-SDI Program Video Input
- (4) 3G/HD/SD-SDI Key/Fill Video Inputs (2 key/fill pairs)
- (2) 3G/HD/SD-SDI Program Video Outputs (user selectable as path 1 or path 2 key/fill program outputs)
- (1) HDMI/DVI Preview Output
- (1) GPIO Port (HD-15), (all coaxial connectors DIN1.0/2.3)
BBG-1023-DSK-LG-C-HDBNC
- 1) 3G/HD/SD-SDI Program Video Input
- (4) 3G/HD/SD-SDI Key/Fill Video Inputs (2 key/fill pairs)
- (2) 3G/HD/SD-SDI Program Video Outputs (user selectable as path 1 or path 2 key/fill program outputs)
- (1) HDMI/DVI Preview Output
- (1) GPIO Port (HD-15), (all coaxial connectors HD-BNC)
