The Cobalt® BBG-1080-2CSC-3G 3G/HD/SD-SDI Dual-Channel Standalone RGB Color Space Corrector / Frame Sync with Integrated Test Signal Generator and OGCP-9000/CC Control Panel Support offers two independent signal paths of color correction/frame sync in a standalone unit.
The BBG-1080-2CSC-3G offers dual independent RGB-space color correction channels with YCbCr proc features with RGB processing controls providing full offset, gain and gamma adjustments. The YCbCr proc controls provide lift, gain, saturation, phase, white clip (hard and soft), black clip, and color saturation clip.
Two independent built-in pattern generators (which provide calibrated 75% or 100% color bars among other patterns) preceding the color correction blocks allow setting custom calibration offsets to compensate for on-set monitor/camera colorimetry, with the custom settings saved to a preset, resulting in one-button recall of monitor/camera calibration settings. Any custom settings can be saved to user presets for instant recall via web GUI, DashBoard or our intuitive OGCP-9000/CC Color Correction Remote Control Panel.
Preset save/load allows saving custom settings while allowing one-button revert to factory settings. Layered presets allow invoking changes related only to a specific area of concern (audio routing, for example) while not changing any other processing settings or aspects. The BBG-1080-2CSC-3G can be remote-controlled using DashBoard™. GPIO allows direct input routing control and status monitoring.
The compact standalone form factor allows desktop usage, as well as the 1/3-rack size of the BBG-1080-2CSC allowing 3 units to be installed in a 1RU space (an optional mounting tray is available that provides secure mounting of the units to a standard 19” frame).
Key Features
Two independent processing paths
Full dual-channel independent RGB color correction (offset, gain, gamma)
Dual Frame Sync with full H/V offset and manual/LOS video pattern generator. Color corrector preceded by pattern generator allows custom offset calibrations for on-set monitor/camera colorimetry characteristics.
Passes entire YCbCr gamut in unity gain configuration
Extended YCbCr proc controls with white hard clip, white soft clip, black hard clip, and saturation clip
Phase preserved when applying saturation clip
One button bypass of color correction for comparison purposes
Compact footprint – up to 3 units in a 1RU space. Optional tray provides secure captive-fastener mounting of 3 units in a 1RU tray.
Uses DashBoard remote control (device appears as single-card frame)
Five-Year warranty
Specifications
Power
< 18 Watts. Power supplied by 12VDC AC adapter, universal input (included).
SDI Input/Outputs
Up to (4) 75Ω BNC inputs
Up to (4) 75Ω BNC outputs
SDI Formats Supported: SMPTE 259M, SMPTE 292M, SMPTE 424M
SDI Receive Cable Length: 3G/HD/SD: 120/180/320 m (Belden 1694A)
SDI Return Loss: >15 dB up to 1.485 GHz; >10 dB up to 2.970 GHz
SDI Alignment Jitter: 3G/HD/SD: < 0.3/0.2/0.2 UI
Timing Jitter: 3G/HD/SD: < 2.0/1.0/0.2 UI
Minimum Latency (frame sync disabled):
SD: 127 pixels; 9.4 us
720p: 330 pixels; 4.45 us
1080i: 271 pixels; 3.65 us
1080p: 361 pixels; 2.43 us
Frame Sync Audio/VIdeo Delay
Max offset: 20 frames
Latency (min): 1 frame
User Audio Delay Offset from Video
Bulk delay control: -33 msec to +3000 msec.
Per-channel delay controls: -800 msec to +800 msec
Frame Reference Input
Looping 2-BNC connection. SMPTE 170M/318M “Black Burst”, SMPTE 274M/296M “Tri-Level”
Return Loss: >35 dB up to 5.75 MHz
RGB Color Correction
RGB Black Adjust (one per primary): -100% to 100% in 0.1% steps
RGB White Adjust (one per primary): 0% to 200% in 0.1% steps
RGB Gamma Control (one per primary): 0.125 to 8.0 in 0.001 steps
YCbCr Processing Amp
White Adjust (Gain): 0 to 200% in 0.1% steps
Black Adjust (Lift): -100% to 100% in 0.1% steps
C Gain (Saturation): 0% to 200% in 0.1% steps
Color Phase: -360° to + 360° in 0.1 degree steps
YCbCr Clip
Y Black hard clip (values limited at or above): -6.8% to 50% in 0.1% steps
Y White hard clip (values limited at or below): 50% to 109.1% in 0.1% steps
Y White soft clip (values rolled off at): 50% to 109.1% in 0.1% steps
CbCr Saturation clip (values limited at or below): 50% to 160% in 0.1% steps
Control/Monitor Interface
Front panel network setup. DashBoard remote control via rear-panel 10/100/1000 Ethernet port.
Diagrams
Block Diagram

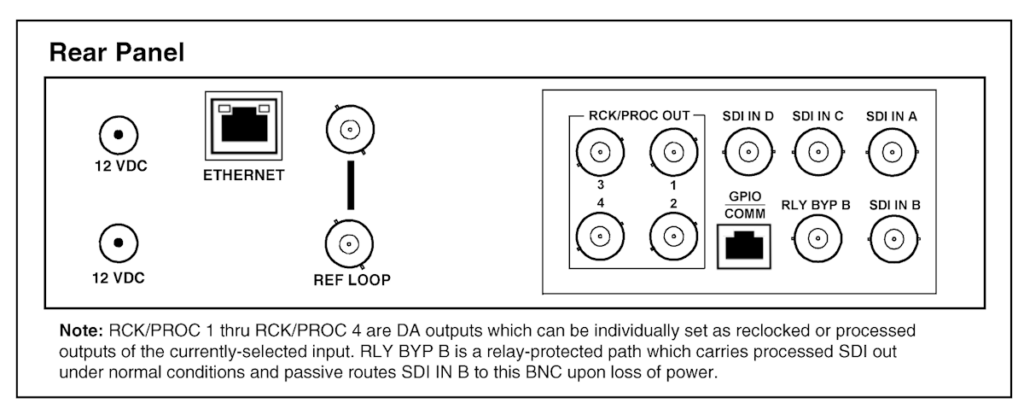

Rear Panel
