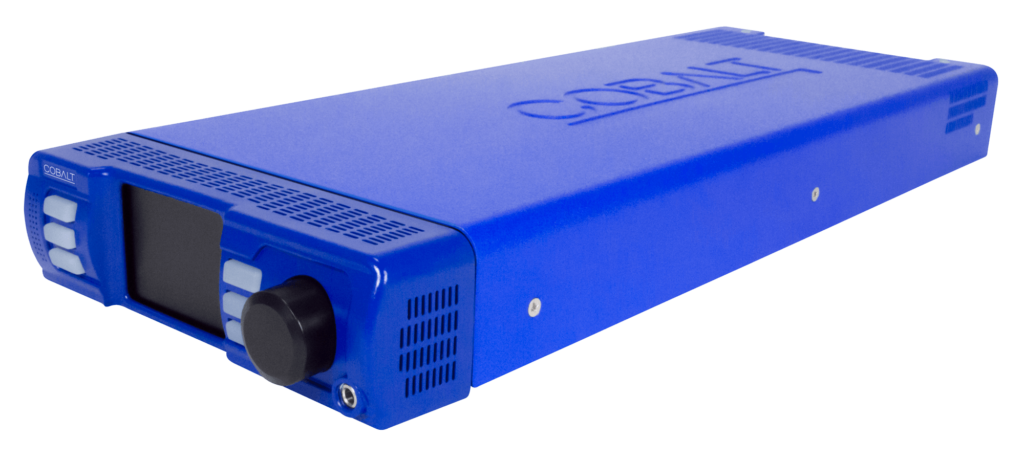

The COBALT® BBG-1300-FR is a 1/3 rack-width 1RU openGear® compatible enclosure frame capable of housing up to two cards* as a basic standalone desktop unit, or up to three units racked together side by side as a 1RU group for rack mounting. The BBG-1300-FR allows openGear® cards to be supported where a full-size 2RU 20-slot openGear® frame is not feasible or required.
Just like a full frame, the BBG-1300-FR built-in network interface allows DashBoard™ control/monitoring of any openGear® capable card. Looping reference on the BBG-1300-FR unit itself provides card reference support without using reference connections that consume card rear module connector count.

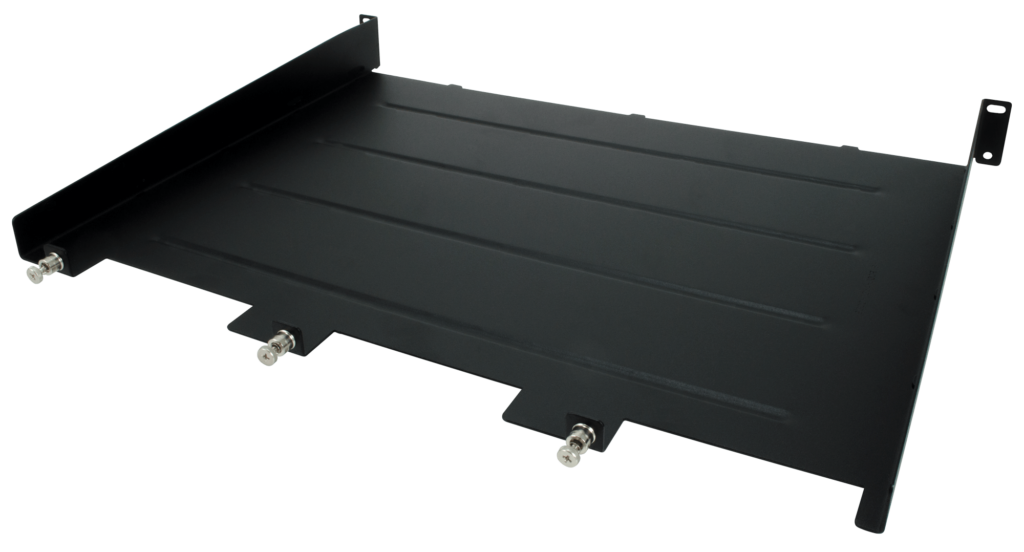

Most cards within the Cobalt product lineup can be housed in the BBG-1300-FR, with a total available power of 60 W. Up to three BBG-1300-FR units can fit onto a single 1RU tray (BBG-1300-TRAY, sold separately) for maximum density where a 2RU frame is not feasible.

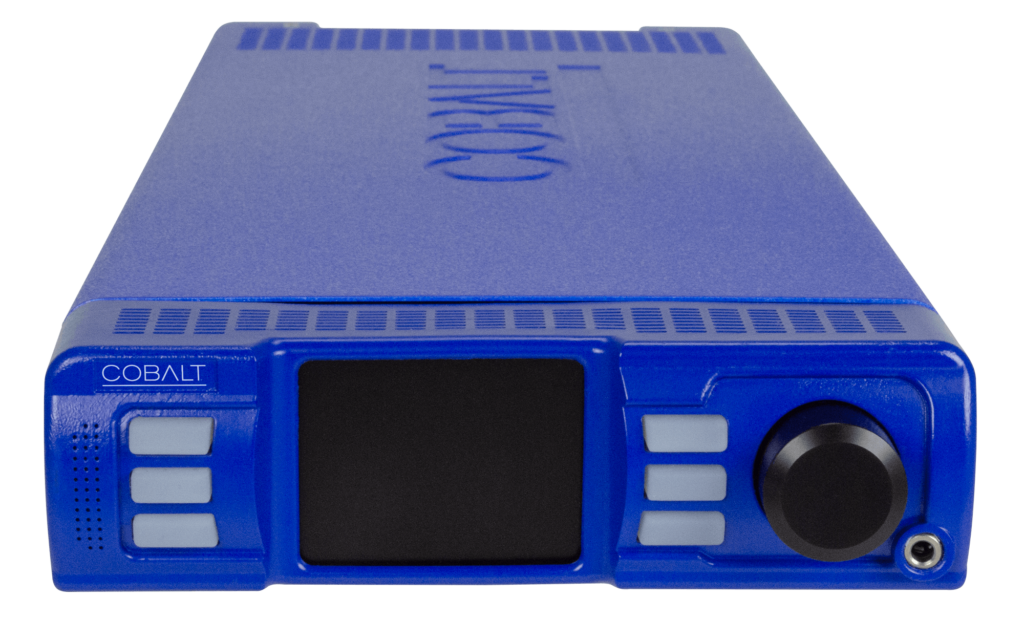

A front control panel makes status monitoring and network setup connectivity simple with an LCD display screen. The front rotary knob makes navigation simple and easy to use. SNMP control is also available.

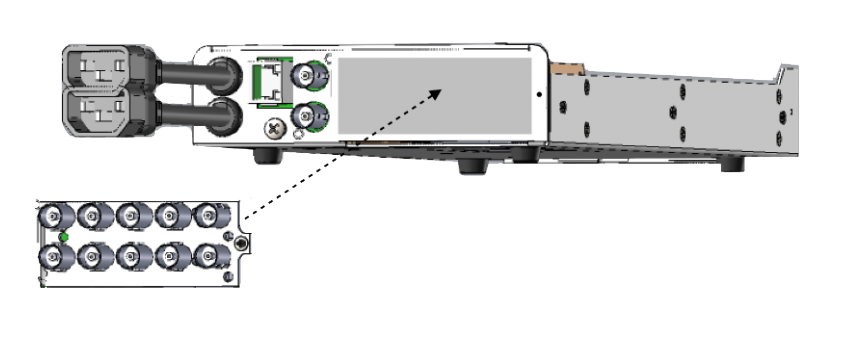

* Two-card (usually a card with a daughter-card) installation in this frame requires a two-card split Rear I/O module configured for odd-slot installation in a 20-slot frame.
Split Rear I/O modules are not available for all COBALT® cards. The BBG-1300-FR may be used with an even-slot Rear I/O module if the installed card fills only one slot with no daughter card.
For example, a 9922-FS card for an even slot may go in a BBG-1300-FR but not if the card has the DSP option installed.
Key Features
Provides openGear® card support in a compact package where a full-size 2RU 20-slot openGear® frame is not feasible or required
High power for latest 4K and IP card solutions
Full openGear® compatibility supporting openGear-compatible cards as well as many of the latest and legacy 20-slot frame openGear rear modules
Looping reference internally routed to all user card slots
Dual power supplies for power redundancy
Network Controller function enables multiple copies of DashBoard™ for seamless remote setup, monitoring, and control. Network Controller “smart” functionality provides Gigabit Ethernet to both user card slots.
Front display with rotary knob and buttons for simple and quick control

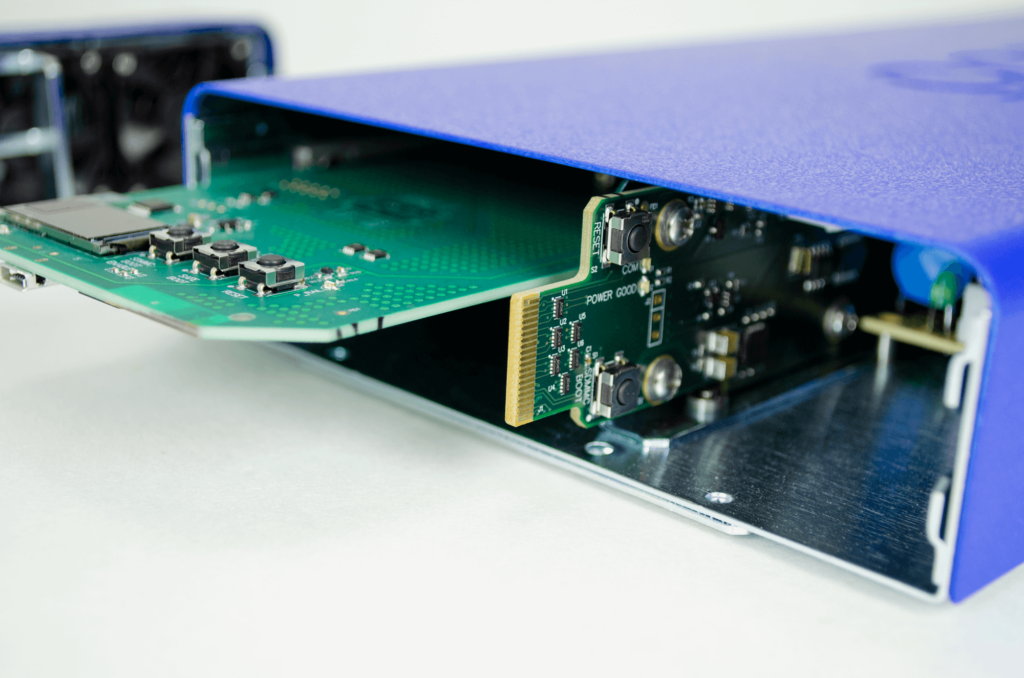

Pull-away front door panel allows quick, easy card insertion
Optional Frame Support Bracket kit provides frame rear support for mobile applications
Remote control/monitoring via DashBoard™ or SNMP
Five year warranty
