The BBG-2EO-12G Dual Coax-To-Fiber throw-down converter unit is a new part of the Blue Box group of compact, rugged, and portable converter boxes. Super-easy to use, Blue Box Dual Coax-To-Fiber supports SMPTE ST2082, ST2081, 424M, 292M, and 259M as well as ASI and MADI audio on two independent coax-to-fiber paths. Auto-mode EQ/reclocking automatically sets to the signal type being received while allowing unrecognized formats to be safely passed without reclocking (auto-reclock can also be manually disabled for either path as desired). Its wide operating range (from 5Mbps to 12Gbps) flexibly supports most professional digital serial communications. Fully error-free pathological pattern operation is fully compatible with other professional fiber video interfaces. SFP-based EO converters provide state-of-the-art fiber performance, power consumption, and compactness.
BBG-2EO-12G receives its operating power via a USB connection or using an AC adapter connection. These power sources can be simultaneously used to provide redundant power sourcing.
Key Features
Dual independent fiber-to-coax paths – all in one easy to use throw-down box
Full support of 5Mbps thru 12Gbps transport conversions, with seamless auto-mode EQ/reclocking. No switches to set for different payloads.
Dual-channel input lock status indicators. Optical Tx power meter fields allow optical Tx confidence assessment.
Compatible with SMPTE ST2082, ST2081, 424M, 292M, 259M, 310M, M2S, DVB-ASI, and MADI audio
Error-free pathological support. Full compatibility with other BlueBox™ Coax/Fiber units and Cobalt 9400-series openGear® frame-installed fiber cards.
Available with ST, LC, or FC fiber termination. (BBG-2EO-12G-FC, BBG-2EO-12G-ST, BBG-2EO-12G-LC)
Compact size and low weight design easily affixes directly to camera or host device chassis. Optional BBG-MB mounting bracket provides rigid, secure mounting to mounting surfaces.
USB remote control/status in addition to device indicator and switches
SFP-based EO converters provide state-of-the-art fiber performance, power consumption, and compactness
Powers directly from host equipment USB or standard corded power adapter. USB power and corded adapter can be simultaneously used to provide redundant power sourcing.
Rugged construction backed with a five-year warranty
Specifications
Power
5-16 VDC, 2.4 W
DC Power Connectors
USB Mini and coaxial locking connector (for use with supplied Cobalt power adapter)
Standards/Data Rates Supported
SMPTE ST2082, ST2081, 424M, 292M, 259M, 344M, 305M, DVB-ASI
5Mbps to 12Gbps pathological pattern operation
(does not support AES-3id audio or other standards using data rates < 5Mbps)
Inputs
(2) 75Ω BNCs. Reclocking automatically engaged for recognized signal standards; bypassed for unrecognized standards.
Return Loss: >18 dBm up to 270 MHz
Outputs
(2) Fiber outputs per ordered configuration.
- BBG-2EO-12G-FC – Type FC fiber connectors
- BBG-2EO-12G-ST – Type ST fiber connectors
- BBG-2EO-12G-LC -Type LC fiber connectors
Wavelength: 1310 nm
Power: -5.0 dBm (min)
Dimensions
5.5” x 3” x 1” (including connector projections)
(139 x 77 x 26 mm)
Operating Temperature Range
32°F to 122°F
(0°C to 50°C)
Note: Specifications subject to change.

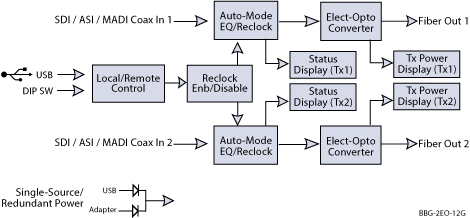

Diagrams
Note: Device includes one PS4 Power Supply (AC adapter). Power supplies listed below are for replacement or spares purposes:
• PS4 Universal Power Supply, UL/CSA. Input: 100-240V, 60/50 Hz. Output: 5 VDC @ 12 Watts
• PS5 Universal Power Supply, IEC Connector, CE/UL/CSA. Input: 100-240V, 60/50 Hz. Output: 5V, 2A (International Power Supply. Specify country of destination.)
Note: The USB GUI application available for BBG-2EO-12G is a free download (Windows Security Certified) that can be downloaded from our Support web page. Instructions for downloading and using the app are included in product documentation. The application is not required for device usage where only DIP switch configuration is desired.
Currently, this application is available for only the following operating systems:
– Windows Vista
– Windows 7
– Windows 8
– Windows 8.1
– Windows 10
