Cobalt Digital introduces our newest factory installed software definable encoding platform. This daughtercard when placed with the 9992-ENC becomes the PACIFIC 9992-ENC-INDIGO. This platform is capable of handling up to 4 channels of 1080p encoding with additional +AVC licenses. The +AVC licenses can be upgraded to HEVC with the +HEVC license.
(Includes one +AVC, two +MP1L2-AAC licenses-2 pairs and SMPTE ST-2110 Integrated Support Hardware).
If a card has 4 x +AVC and 4 x +HEVC licenses, it can be upgraded to 4K using the +4K license.
- Options (sold separately)
*Additional discount available with a BBG-1300 bundle.
Key Features
Up to 4x channels of 1080p encoding with additional +AVC licenses.
Two SFP cages for ST2110 support
Five-Year Warranty
Specifications
IP 2110 Interface
(2) 10/25G SFP 28 Cages
2110 Formats
-20
-22 (with +JPEGXS option)
-30
-40
2022-7 Seemless Redundancy
NMOS
IS-04
IS-05
Diagrams

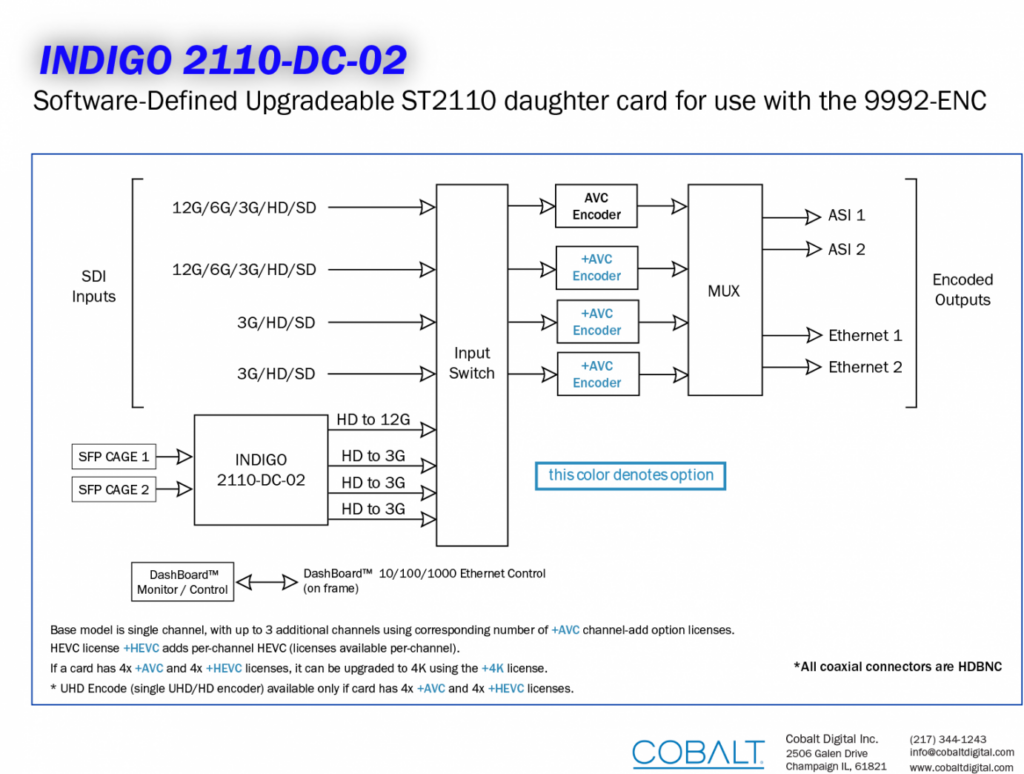

Block Diagram

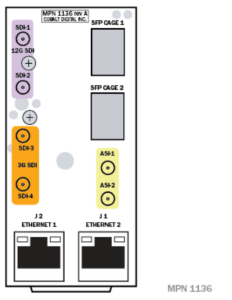

RM20-9992-ENC-INDIGO-HDBNC
- 20-Slot Frame Rear I/O Module (Standard-Width)
- (2) 12G/6G/3G/HD-SD-SDI Coaxial Inputs
- (2) 3G/HD/SD-SDI Coaxial Inputs
- (2) ASI Output BNCs
- (2) GigE Ethernet Media Ports
- (2) 25G SFP 28 cage receptacles
- (All coaxial connectors HDBNC)
