The Cobalt INDIGO OG-2110-BIDI4-GATEWAY has native SMPTE ST 2110 support in an openGear® format card with dual 25G Ethernet interfaces for ST 2022-7 support. The INDIGO OG-2110-BIDI4-GATEWAY is a bi-directional quad channel native ST 2110 interface to SDI I/O. The transmit and receive paths of the gateway can operate simultaneously. INDIGO OG-2110-BIDI4-GATEWAY also includes support for ST 2022-7 seamless redundancy switching, as well as IS-04/IS-05 NMOS for automatic discovery and configuration.
INDIGO ST 2110 is also supported on Cobalt’s 9904-UDX-4K and 9905-MPx processing cards and on the PACIFIC 9992-ENC-INDIGO encoder. The card features four 12G/6G/3G/HD/SD/SD-SDI Inputs, four 12G/6G/3G/HD/SD/SD-SDI Outputs, and two 25G SFP28 cages.
The free DashBoard™ software control also provides configuration and control of the unit via ethernet.
Key Features
Highly integrated 4 channel ST 2110 gateway openGear® card. With the powerful INDIGO OG-2110-BIDI4-Gateway card, all processing paths are operating simultaneously.
Offers dual 25G Ethernet interfaces for ST 2022-7 support of 4K signals without the need for any type of compression and to support ST 2022-7 seamless redundancy switching for improved network reliability.
Built-in NMOS support offers straightforward interface to an existing network, with auto discovery by the network management.
High-density, compact openGear® card-based multi-channel transmit/receive solution, offering the standard features of redundant hot swappable power supplies and hot-swappable cards.
Five-Year Warranty
Specifications
Inputs
(4) 12G/6G/3G/HD/SD/SD-SDI
Outputs
(4) 12G/6G/3G/HD/SD/SD-SDI
Fiber Receptacles
(2) 25G SFP28 cage receptacles
All coaxial connectors HDBNC
Diagrams

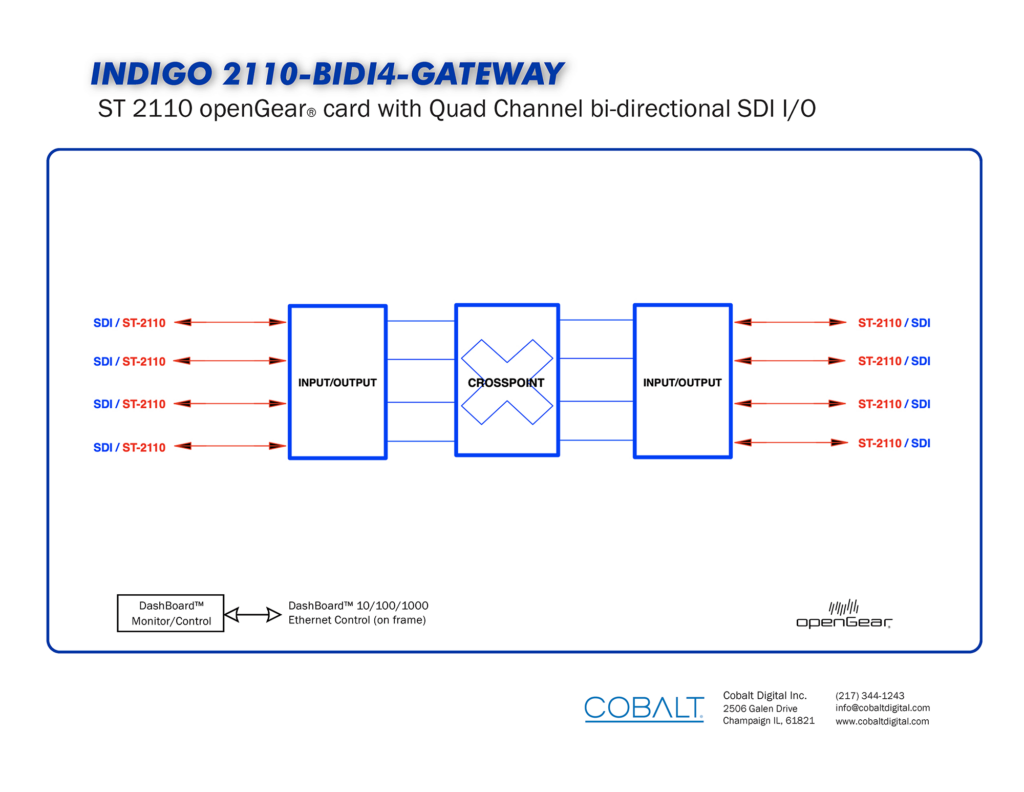

Block Diagram

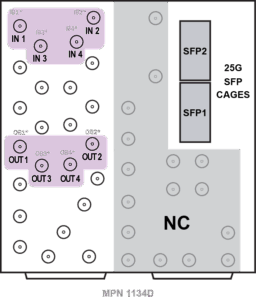

RM20-OG-2110-BIDI-GATEWAY-A
- 20-Slot Frame Rear I/O Module (Double-Width)
- (4) 12G/6G/3G/HD/SD/SD-SDI Inputs
- (4) 12G/6G/3G/HD/SD/SD-SDI Outputs
- (2) 25G SFP28 cage receptacles
- All coaxial connectors HDBNC
- Available for: INDIGO OG-2110-BIDI4-GATEWAY card. Supported on oGx, HPF-9500 and HPF-MAX openGear® frames.
*NOT supported on HPF-9000 frames or HPF-9500-N frames
Note: the AC input feature is no longer available for new orders.
