The COBALT SAPPHIRE BBG-2110-2H mini-converter addresses the need to display received ST 2110 or JPEG-XS* content on HDMI monitors in a simple and cost-effective way. The mini-converter is designed to be mounted behind the monitor. The BBG-2110-2H is a two-channel unit with independent HDMI outputs.
The converter includes two SFP cages with support for 10G and 25G Ethernet ports, a 1Gb copper Ethernet port for out of band management, support for SMPTE ST 2022-7 Seamless Switching up to Class C operation for WAN environments, support for NMOS IS-04/IS-05 control and management (both in-band and out-of-band), and in-band PTP support.
Available in a passive cooling, fan-less design for quiet environments or a smaller, active cooling, fan design.
Support for uncompressed ST 2110-20 video.
* +JPEG-XS optional license
Key Features
Converts ST 2110-20 or -22 JPEG-XS (license required) streams with associated -30 audio and -40 ancillary data essences to HDMI.
SAPPHIRE BBG units are capable of fully asynchronous operation and are IPMX compliant.
Supports 4K-UHDX
Supports NMOS IS-04/IS-05 control, both in-band and out-of-band.
Supports all popular formats: 720p, 1080i, 1080p, and 2160p (2160p is available on the first path only).
Supports SMPTE ST 2022-7 Seamless Redundancy up to Class C for WAN operation.
Available with an active cooling fan (smaller package) or a passive fan-less version for quiet operation.
Can be mounted behind the monitor with optional brackets.
Web interface and DashBoard™ control.
Two 12V DC inputs (for redundant power supply)
Specifications
Outputs:
(2) HDMI outputs
Stream Interfaces:
(2) 10G/25G SFP 28 cages
Management Port:
100/1000 Mbps Ethernet with Auto-MDIX
Standards Support:
Uncompressed ST 2110-20 Video
JPEG-XS ST 2110-22 (Option license)
VSF TR-08 Support for ST 2110-30 audio
ST 2110-40 ancillary data essences
SAPPHIRE BBG units are capable of fully asynchronous operation and are IPMX-compliant.

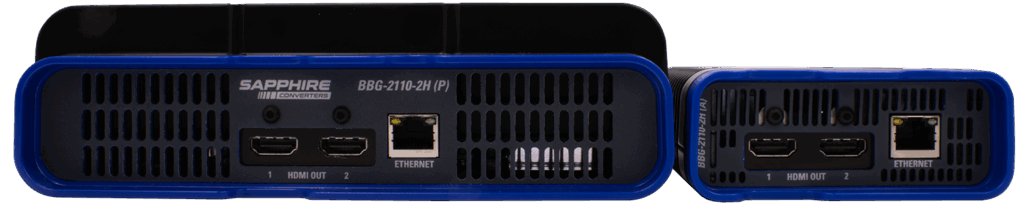

Dimensions:

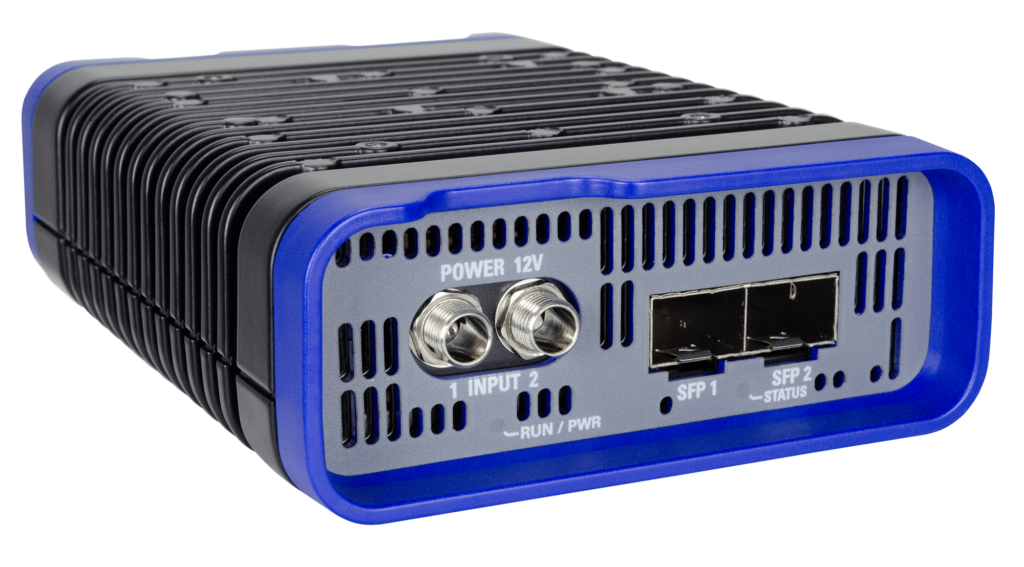

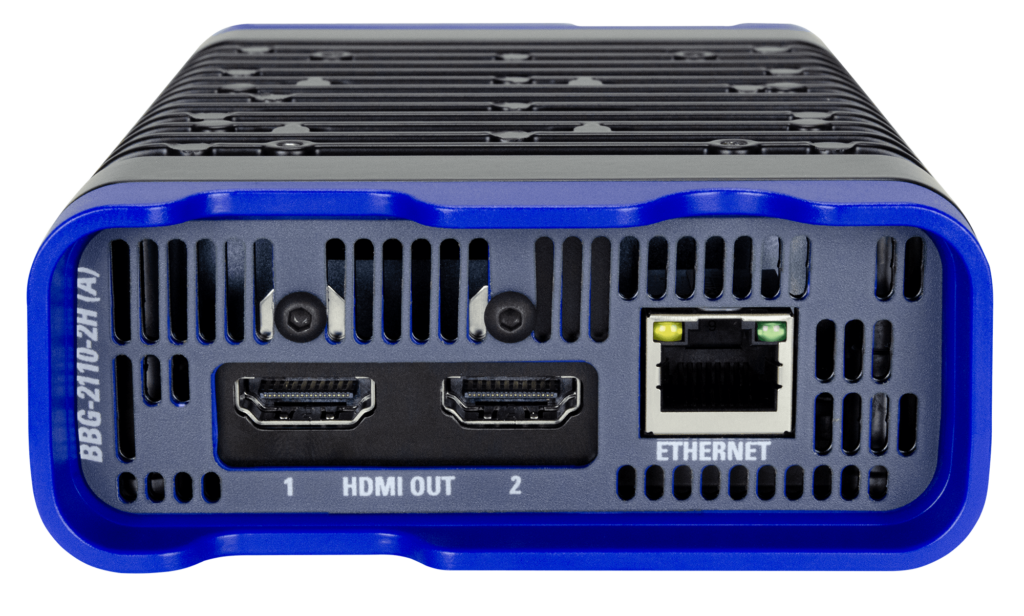

SAPPHIRE BBG-2110-2H (A) – Active Cooling
This unit has active cooling (fan) – Dimensions: 3.92” x 5.52” x 1.58”
SAPPHIRE BBG-2110-2H (P) – Fan-less Passive Cooling
This unit has passive cooling (no fan) – Dimensions: 8” x 5.5” x 2.37”
Power
12 VDC, 20 W
(2) DC Power Connectors (for redundant power supply)
Diagrams
Mounting Bracket Options

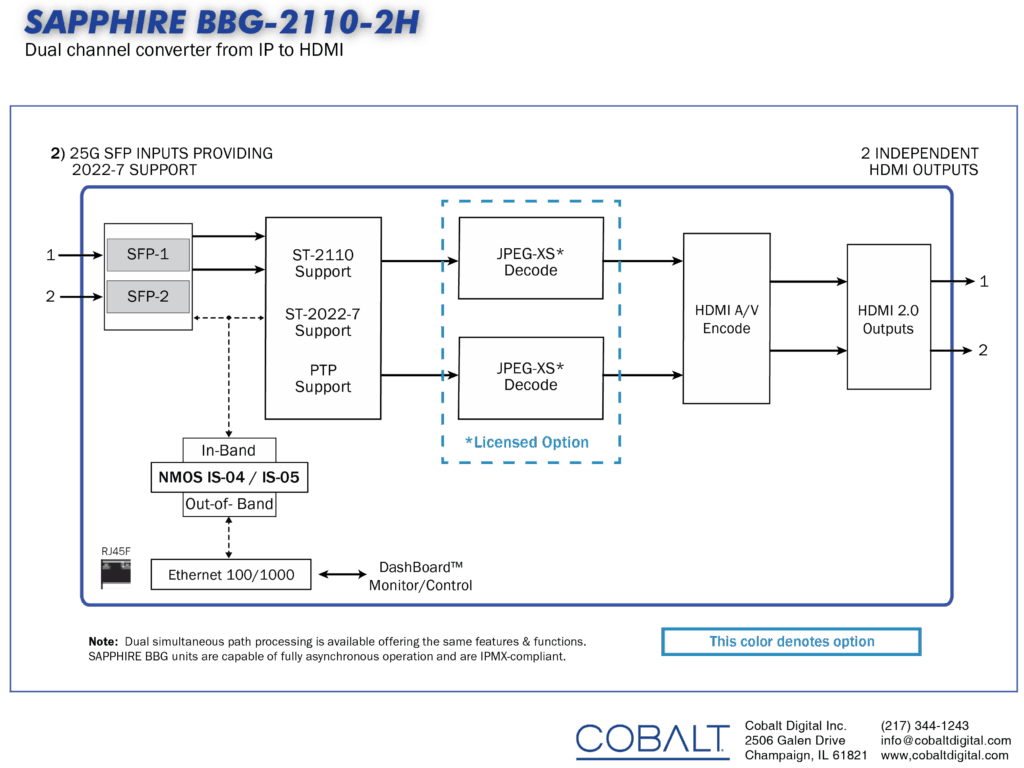

Block Diagram

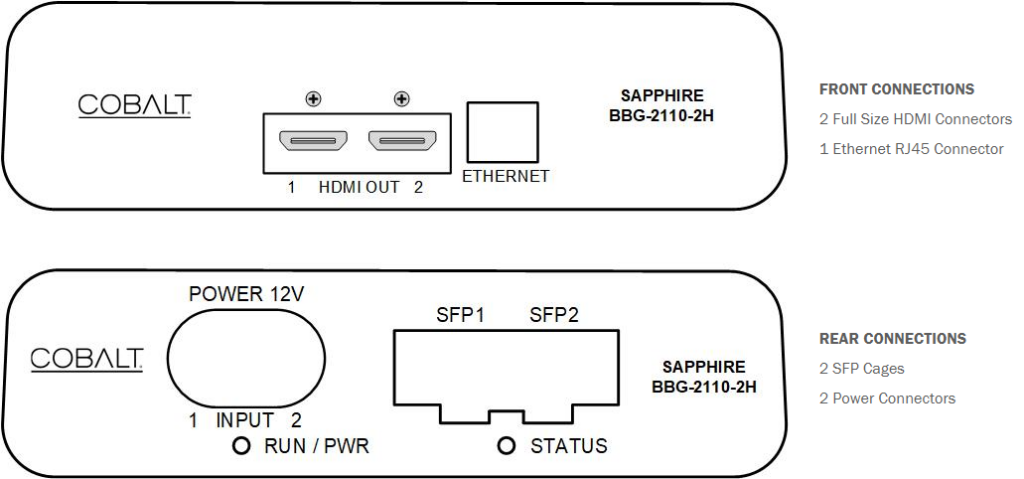

Front and Rear Connectors
