The COBALT SAPPHIRE BBG-2110-H/S mini‑converter addresses the need to display received JPEG‑XS* content on HDMI monitors in a simple and cost‑effective way. The mini‑converter is designed to be mounted behind the monitor. The BBG‑2110‑H/S is a single‑channel unit with simultaneous 12G SDI and HDMI outputs.
The converter includes dual SFP cages with support for 10G and 25G Ethernet ports, additional 1Gb copper Ethernet port for out- of band management, support for SMPTE ST 2022‑7 Seamless Switching up to Class C operation for WAN environments, support for NMOS IS‑04/IS‑05 control and management (both in‑band and out‑of-band), and in‑band PTP support. Also available is a passive fan‑less design option for quiet environments. The unit also has support for uncompressed ST 2110‑20 video.
The SAPPHIRE BBG units are the ideal choice for directly displaying incoming JPEG‑XS* content on HDMI monitors, including content originating from a WAN connection. The units can be mounted directly behind the monitor and will not take up any rack space, and are incredibly quiet, which makes them ideal for control rooms.
Key Features
Converts one JPEG‑XS* (Option license) stream with associated audio and ancillary data essences to HDMI.
Supports SMPTE ST 2022‑7 Seamless Redundancy up to Class C for WAN operation.
Fan‑less option for quiet operation or Active fan cooling version if needed.
Support for uncompressed ST-2110‑20 video
Can be mounted behind the monitor with optional brackets.
12G SDI (HD-BNC)
Supports NMOS IS‑04/IS‑05 control, both in‑band and out‑of‑band.
Web interface and DashBoard™ control.
Dual power supply connections for redundancy.
Supports all popular formats: 720p, 1080i, 1080p, 2160p
SAPPHIRE BBG units are capable of fully asynchronous operation and are IPMX-compliant.
Specifications
Note: All specifications are preliminary and subject to change.
Outputs:
Simultaneous HDMI and SDI outputs (2)
Stream Interfaces:
Dual 10G/25G SFP 28 cages
Management Port:
100/1000 Mbps Ethernet with Auto‑MDIX
Standards Support
Uncompressed ST 2110-20 video
JPEG‑XS ST 2110‑22
VSF TR‑08 Support for ST 2110‑30 audio
ST 2110‑40 ancillary data essences
12G SDI
SAPPHIRE BBG units are capable of fully asynchronous operation and are IPMX-compliant.
Dimensions:
Sapphire BBG-2110-H/S (A) – Active Cooling
This unit has active cooling (fan) Dimensions: 4” x 5.5” x 1.5”
Sapphire BBG-2110-H/S (P) – Fanless Passive Cooling
This unit has passive cooling (no fan) Dimensions: 8” x 5.5” x 2.5”
Diagrams

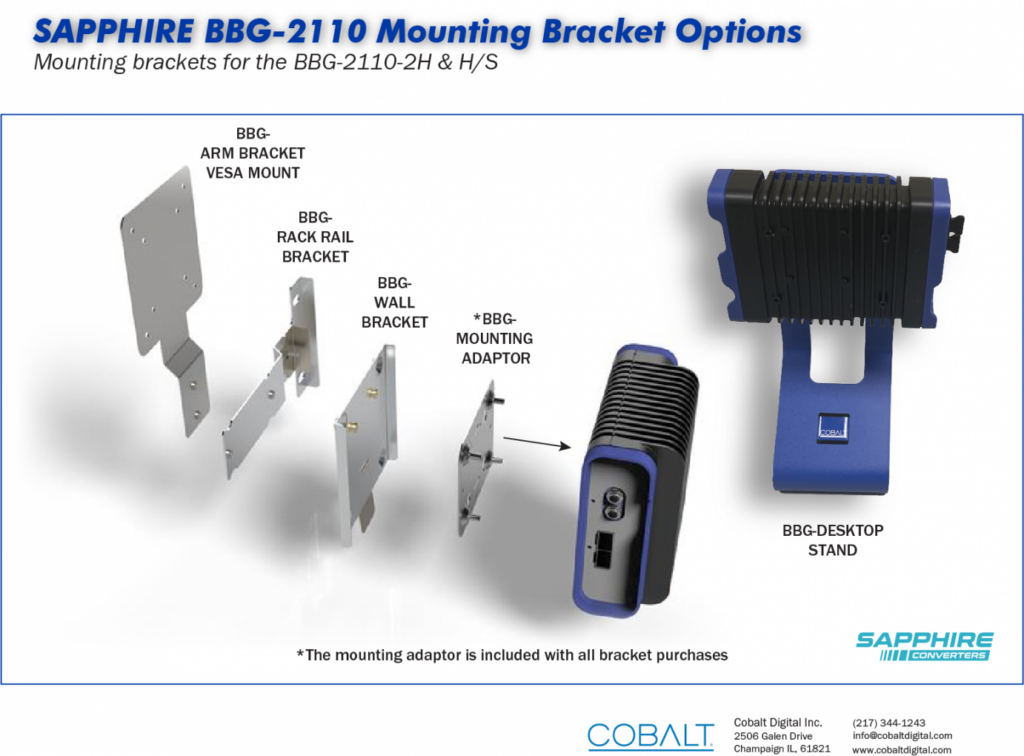

Mounting Bracket Options
Block Diagram

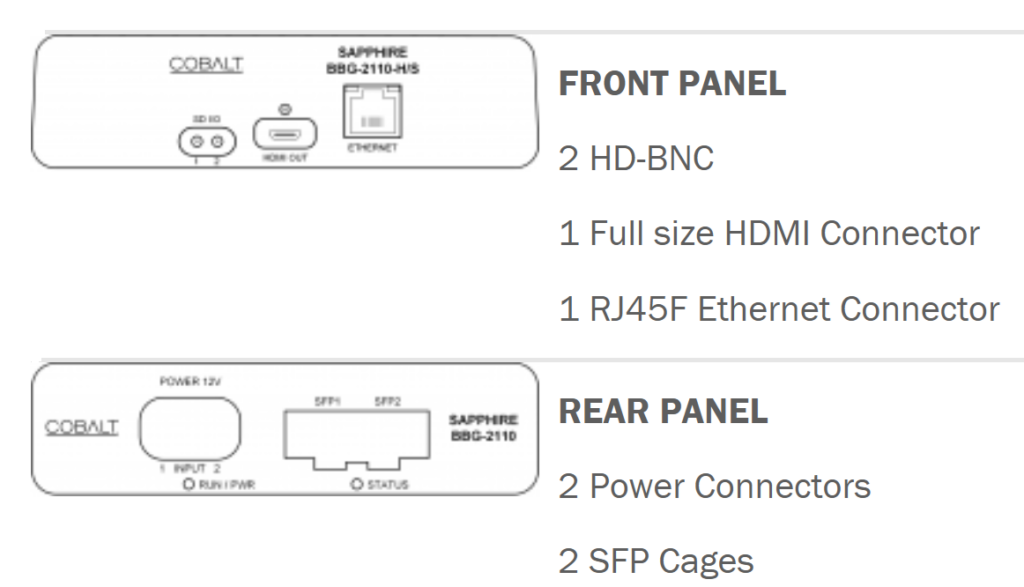

Front and Rear Connectors
