Key Features
Specifications
Inputs
(2) 75Ω independent BNC channels SMPTE-259/292/424
Outputs
(2) independent LC Fiber channels SMPTE-297
Reclocking
270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps – Auto Select
All other rates are passed through
Physical Dimensions
Size: openGear 2U form factor – front slot/rear card Weight: 0.5 lb (0.3 kg
Environment
Operating temperature: 32° – 104°F (0°-40°C) Relative Humidity: 10-90% noncondensing
Power
2.5 watts max per card

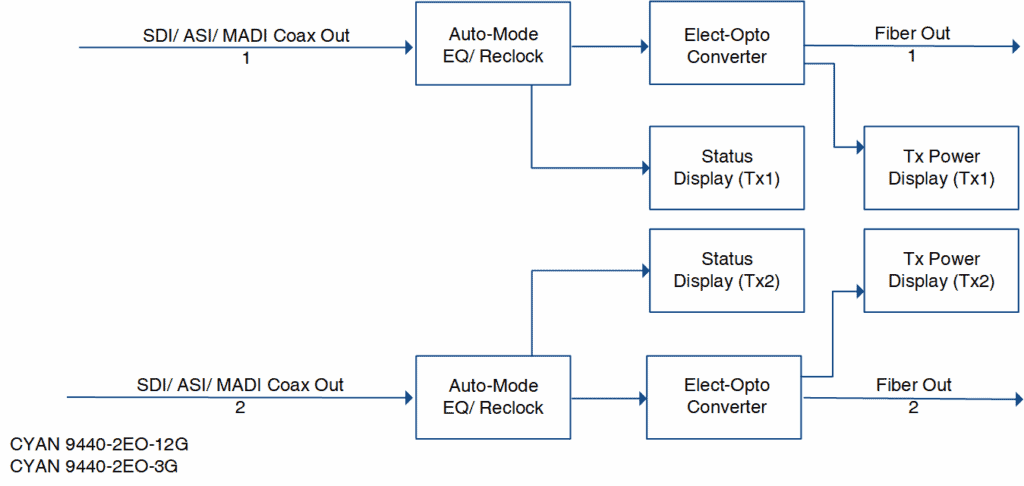

Diagrams
Each card requires a particular rear module plate that shows the Inputs and Outputs for the card.
RM20-9440-2EO-A
This plate is marked with Inputs and Outputs for Optical (Fiber) and Electrical (BNC Coax) connections on the specific 9440 card.
