The Cobalt® CYAN 9440-2OE-12G openGear® compatible fiber optic 2-channel transport receivers allow signals to be transmitted over optical fiber cable. The CYAN 9440-2OE-12G supports up to 12Gbps. The card has two independent fiber inputs and coax outputs.
The CYAN 9440-2OE series receivers meet SMPTE ST 2082, ST 2081, 424M, 292M, and 259M standards as well as ASI and MADI audio on two independent fiber-to-coax paths. Auto-mode EQ/reclocking automatically sets to the signal type being received while allowing unrecognized formats to be safely passed without reclocking.
Its wide operating range (from 270Mbps to 12Gbps) flexibly supports most professional digital serial communications.
Using the Ross® Video Dashboard software, the 9440-2OE series receivers can be conveniently configured and monitored over a PC or local network.
Key Features
Dual independent fiber-to-coax paths
On-card indicators provide input lock status and data rates
Supports 12G/6G/3G/1.5G/SD-SDI /ASI /MADI
Reclocked inputs eliminate jitter and improve signal integrity
Non-inverted outputs maintain the signal’s phase which is critical in applications where preserving the signal’s waveform and timing is critical
Full support of 270Mbps - 12Gbps transport conversions, with seamless auto-mode EQ/reclocking.
Compatible with SMPTE ST 2082, ST 2081, 424M, 292M, 259M, ASI, and MADI
The fiber connector is attached to the card providing a reliable and secure connection.
Remote control and monitoring via Dashboard software
Hot swappable
Specifications
Inputs
(2) independent Fiber channels (ST, LT, or Fiber) SMPTE-297
Outputs
(2) 75Ω independent BNC channels SMPTE-259/292/424
Environment
Operating temperature: 32° – 104°F (0°-40°C) Relative Humidity: 10-90% noncondensing
Power
2.5 watts max per card
Diagrams

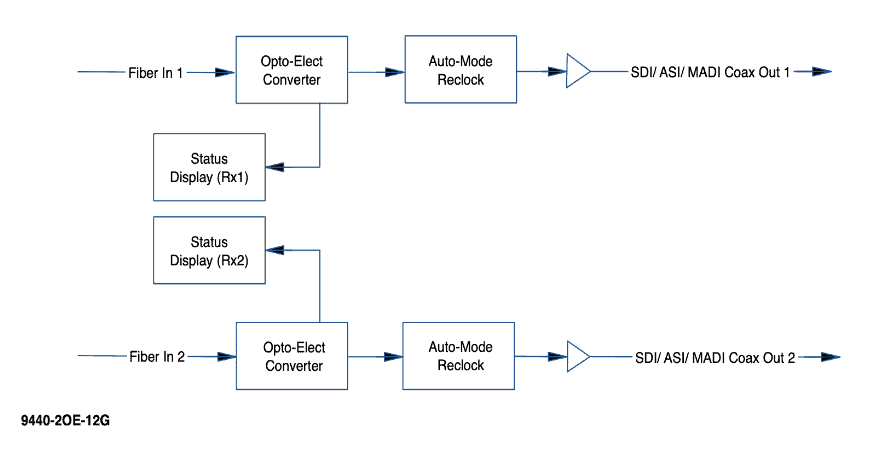

Block Diagram
Each card requires a particular rear module plate that shows the Inputs and Outputs for the card.
RM20-9440-2OE-A
This plate is marked with Inputs and Outputs for Optical (Fiber) and Electrical (BNC Coax) connections on the specific 9440 card.
