The Cobalt® CYAN 9440-EOOE 12G/3G/HD/SD-SDI / ASI / MADI Transceiver Fiber & Coax paths supports SMPTE ST2082, ST2081, 424M, 292M, and 259M as well as ASI and MADI audio.
Auto-mode EQ/reclocking automatically sets to the signal type being received while allowing unrecognized formats to be safely passed without reclocking. Its wide operating range (from 5Mbps to 12Gbps) flexibly supports most professional digital serial communications.
Fully error-free pathological pattern operation is fully compatible with other professional fiber video interfaces. Excellent receive performance allows coaxial receive EQ for up to 50m/70m/150m/180m (12G/6G/3G/HD) (1694A). Full user DashBoard or Remote Control Panel remote control allows full status and control access locally or across a standard Ethernet network.
Key Features
Full support of 12G/3G/HD/SD-SDI and ASI/DVB
Independent fiber receiver and transmitters can be linked to any card channel, offering full EOOE transceiver operation
Excellent receive performance allows coaxial receive EQ for up to 50m/70m/150m/180m (12G/6G/3G/HD) (1694A)
Reclocked inputs eliminate jitter and improve signal integrity
The fiber connector is attached to the card providing a reliable and secure connection.
Optical Tx and Rx power status fields allow optical Tx/Rx confidence assessment
Specifications
Standards/Data Rates Supported
SMPTE ST2082, ST2081, 424M, 292M, 259M, 344M, 305M, DVB-ASI
5Mbps to 12Gbps pathological pattern operation
(does not support AES-3id audio or other standards using data rates < 5Mbps)
Input (Fiber-to-Coax Path; Fiber Receive)
(1) Fiber input. FC, ST, or LC connectors per ordered configuration
Wavelength: 1260 to 1620 nm
Sensitivity/Input Usable Range: -18 dBm min; -1 dBm max
Output (Fiber-to-Coax Path; Fiber Receive)
(1) 75Ω BNC. Reclocking automatically engaged for recognized signal standards; bypassed for unrecognized standards.
Return Loss: >18 dBm up to 270 MHz
Input (Coax-to-Fiber Path; Fiber Transmit)
(1) 75Ω BNC
Return Loss: >18 dBm up to 270 MHz
Output (Coax-to-Fiber Path; Fiber Transmit)
(1) Fiber output. FC, ST, or LC connectors per ordered configuration (see Ordering Info). Reclocking automatically engaged for recognized signal standards; bypassed for unrecognized standards.
Wavelength: 1310 nm
Power: -5.0 dBm (min)
Diagrams

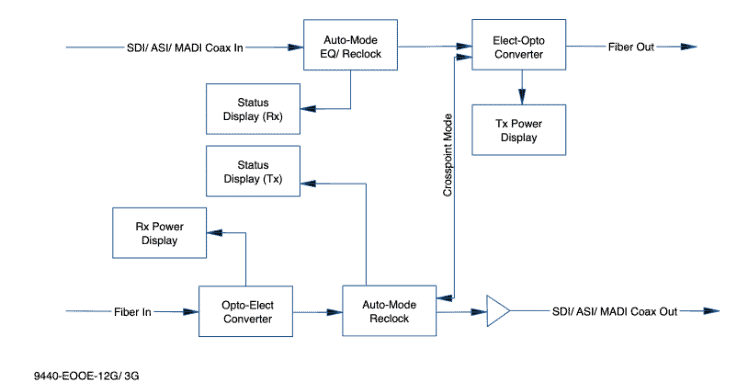

Block Diagram
Each card requires a particular rear module plate that shows the Inputs and Outputs for the card.
RM20-9440-EOOE-A
This plate is marked with Inputs and Outputs for Optical (Fiber) and Electrical (BNC Coax) connections on the specific 9440 card.
