The Cobalt® 9490 series of CWDM passive multiplexers (mux) and de-multiplexers (demux) offer a flexible, cost-effective solution to mux and demux up to eight fiber channels onto a shared fiber trunk. Used in conjunction with our fiber EO and OE converter cards, digital video, audio, and IP can all be carried over a shared fiber trunk. CWDM offers a cost-effective, scalable, and convenient solution for multiplexing and de-multiplexing discrete channels onto a shared fiber trunk.
The 9490CWDM mux units and companion de-mux units are available in 4 and 8-channel versions. Both 8 and 4-channel versions are available with expansion ports that allow additional passive mux/demux units to be daisy-chained on to the shared fiber trunk. The passive devices use no frame power and are fully functional regardless of frame power or communication status. Each device occupies 2 frame slots.
Key Features
Modular, scalable design allows expansion from 4 to 16 wavelengths (channels)
Bi-directional operation
Fully passive design using low-loss filters. Requires no frame power or communications.
Supports single-mode fiber
Fits 20-slot openGear frames using blindmate-connection rear I/O modules
Five year warranty
Specifications
Filter Wavelengths
See Ordering Information
Insertion Loss
3.1 dB (max) per channel (mux or demux)
3.0 dB (max) (expansion port; mux or demux)
Adjacent Channel Isolation
30 dB (min)
Non-Adjacent Channel Isolation
40 dB (min)
Passband Ripple
0.3 dB
Channel Passband
+/- 6.5 nm
Channel Spacing
20 nm
Return Loss
50 dB (min)
Frame Slot Usage
2 per unit
Connector Type
Type LC
Diagrams

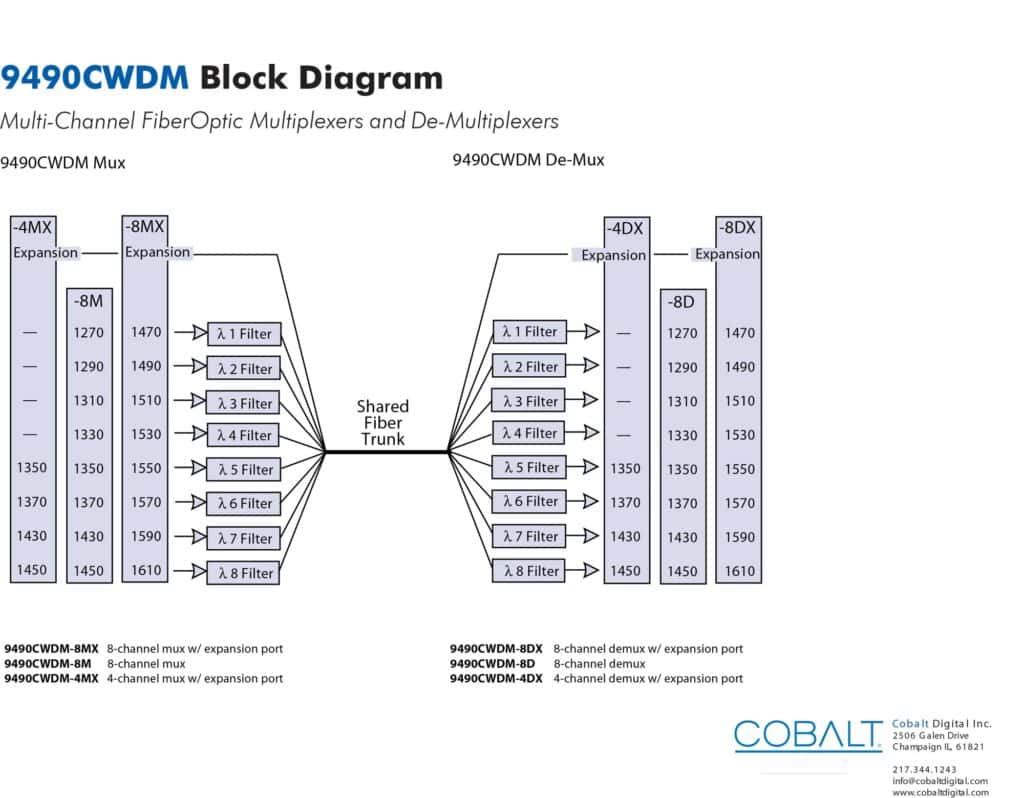

Block Diagram

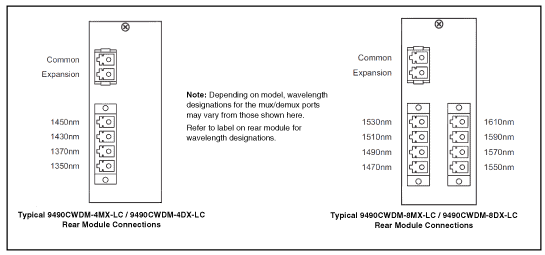

Rear Module Connectors
Need more products?
To expand your request to include multiple products or quantities, please visit our Request A Quote page.
