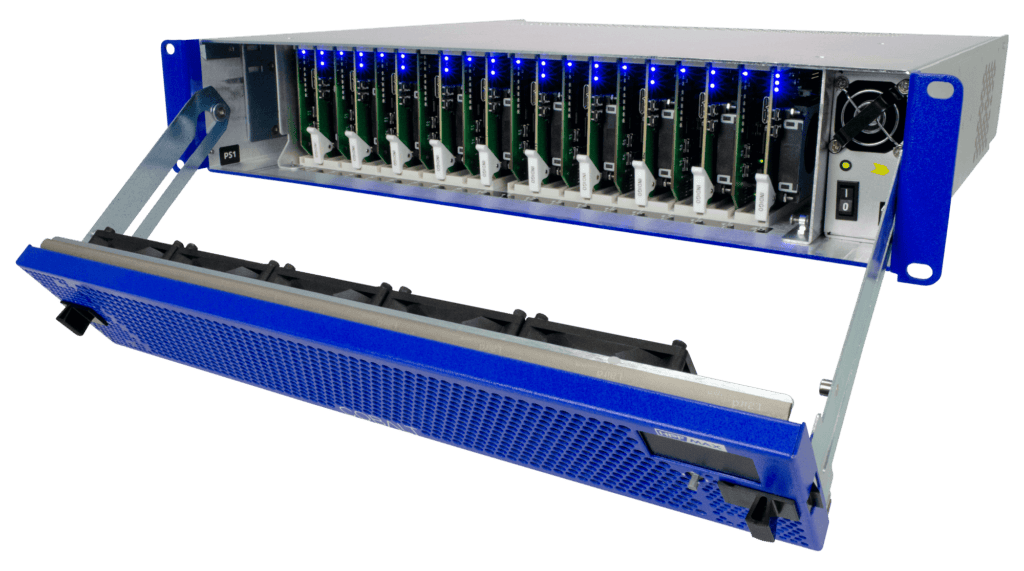

The Cobalt® HPF-MAX is a 2RU high-density openGear® modular frame offering 600 watts of net (user) available power in a high-capacity 20-slot format. It uses the same form factor and DashBoard™ remote control as our other 20-slot frames and supports all openGear compatible cards and rear I/O modules. The HPF-MAX is perfectly suited for high-density utilization. High power-density power supplies (single standard, redundant second – optional) and engineered cooling/ventilation design allow 10 high-power cards in a frame (10 x 60W = 600 W), or 20 medium-power cards in a frame (20 x 30W = 600W). Separate forced-air cooling paths are provided for the card area and the power supply areas. An intelligent fan controller adjusts fan speed with changes in power supply loading and temperature.
The is a new 20-slot frame compatible with all openGear cards. It has 600W of available power, a built-in Gigabit Ethernet backplane, and intelligent power supplies.

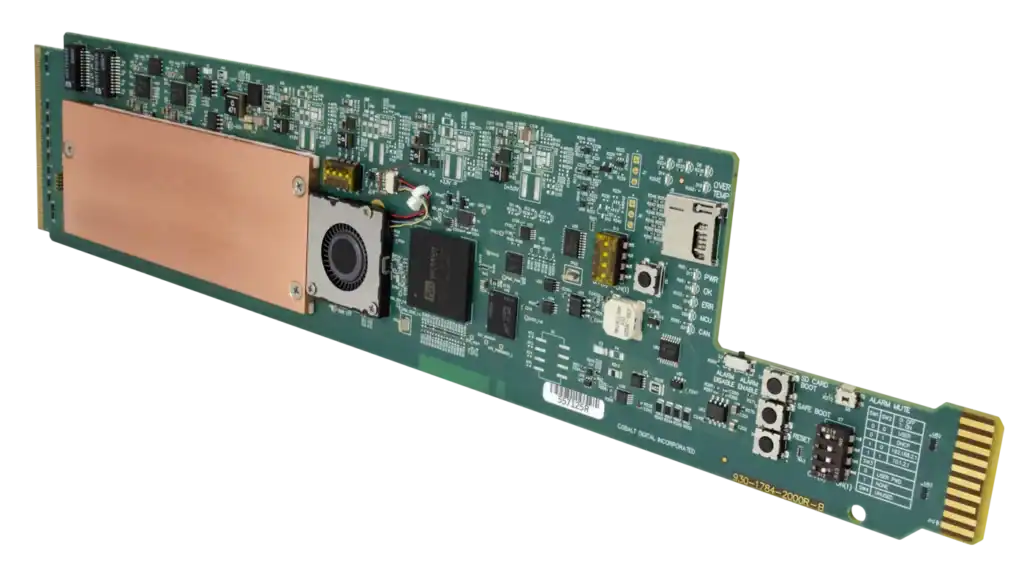

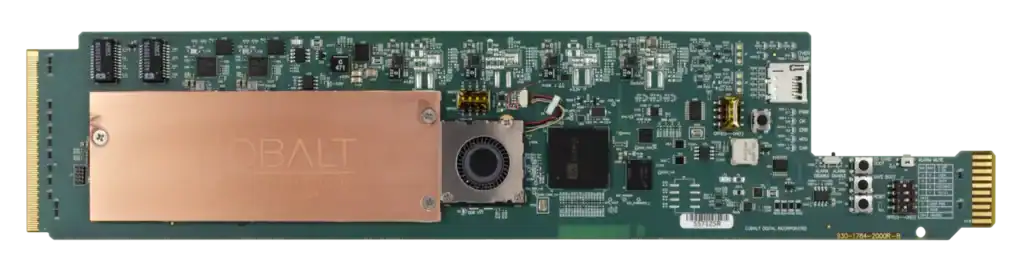

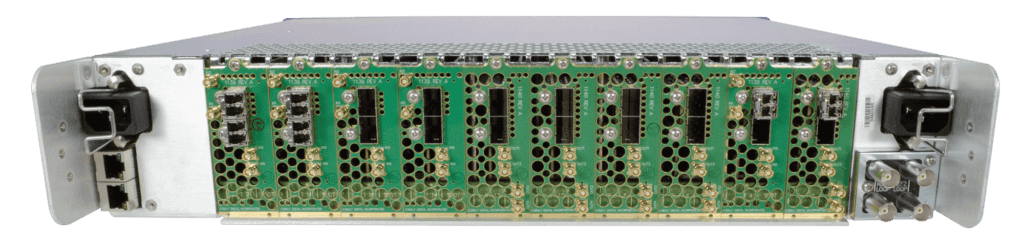

The HPF-MAX-N uses the same rear I/O modules as our current 20-slot frames, allowing a seamless transition from a current 20-slot frame to the HPF-MAX-N. The HPF-MAX-N frame offers Gigabit Ethernet connection to all card slots with the included HPF-GE-FC network controller. The rear modules offer a broad selection for a flexible and wide array of interfaces such as BNC, HD-BNC, twisted-pair audio, and fiber optic. Special high-density/high-ventilation rear I/O modules offer even greater packaging density when used with compatible Cobalt Digital® cards. The HPF-MAX can accommodate two front-loaded PS-MAX power supply modules. Adding a second (optional) supply gives the frame full power redundancy.
Key Features
High-power with 600 Watts available (net)
Full openGear® compatibility supporting openGear-compatible cards as well as latest and legacy 20-slot frame openGear rear modules
Two independent looping references internally routed to all user card slots
Power supply is hot-swappable for 24/7 operation
Front LCD display and FrameGlow customizable multi-color, flexible-function light-bar. Wide high-visibility design provides “across-the-room” visibility of any customizable status or frame ID functions.
Power switch on the supply is accessible from the front of the frame.
Separate IEC power connectors to each power supply for mains power redundancy.
Network Controller Card enables multiple copies of DashBoard™ for seamless remote setup, monitoring, and control. SNMP option can be added for large scale monitoring.
Fan status and error indicator LEDs on the front of the frame.

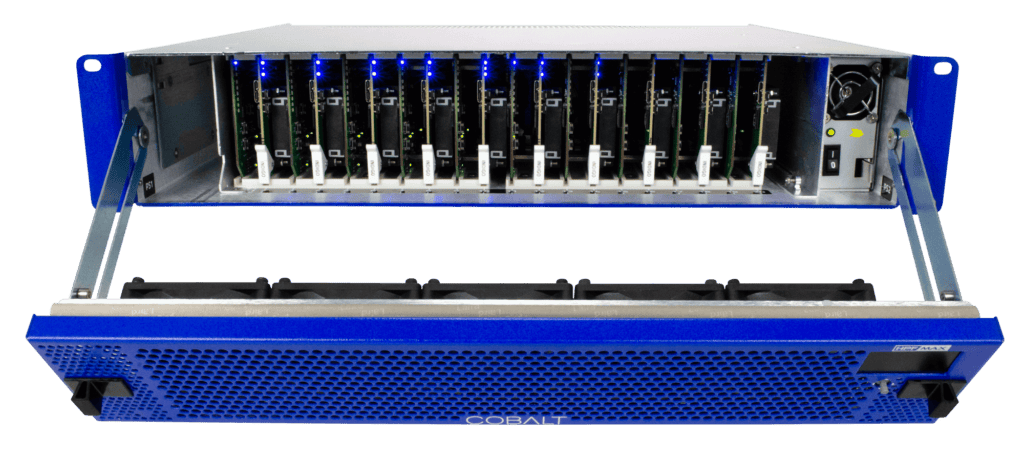

Hinged, pull-away front door panel lowers to allow quick, easy card insertion.
Optional Frame Support Bracket kit provides frame rear support for mobile applications.
Remote control/monitoring via Ethernet using free DashBoard™ software, or optional OGCP-9000 remote control panel.
Five-year warranty
Specifications
AC Line Input
AC IEC connector inputs: 100-240 VAC 8.3A 50~60Hz
Available User Card Slots
20 maximum
Available User (Net) Power
600 Watts continuous-operation maximum installed cards
80 watts assigned to Cooling Fans and Network Card Total: 680 Watts
Frame Communication
100/1000 Mbps Ethernet with Auto-MDIX
Reference Video Input
Two non-terminating (looping) Frame Reference inputs

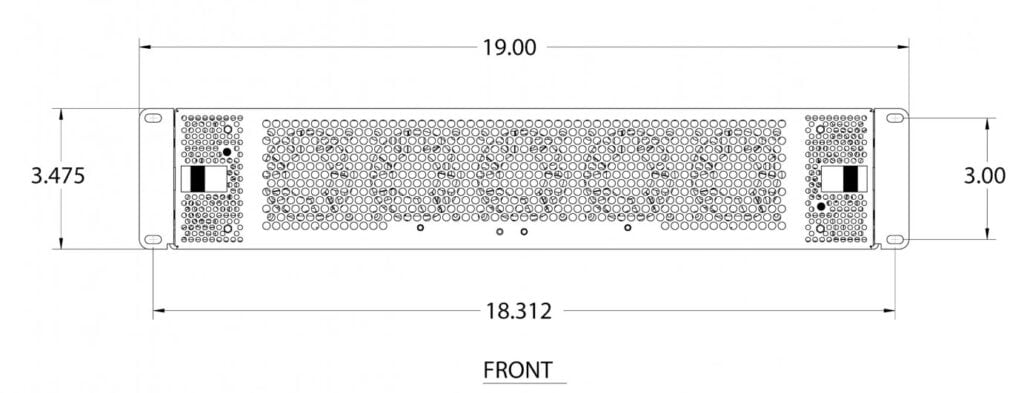

Dimensions (WxHxD)
19” x 3.5” (2RU) x 17” (48 cm x 9 cm x 43 cm)
(Dimensions include any component projections such as mounting tabs, etc.)
Weight (with single standard power supply PS-MAX)
13.9 lbs (6.3 kg)

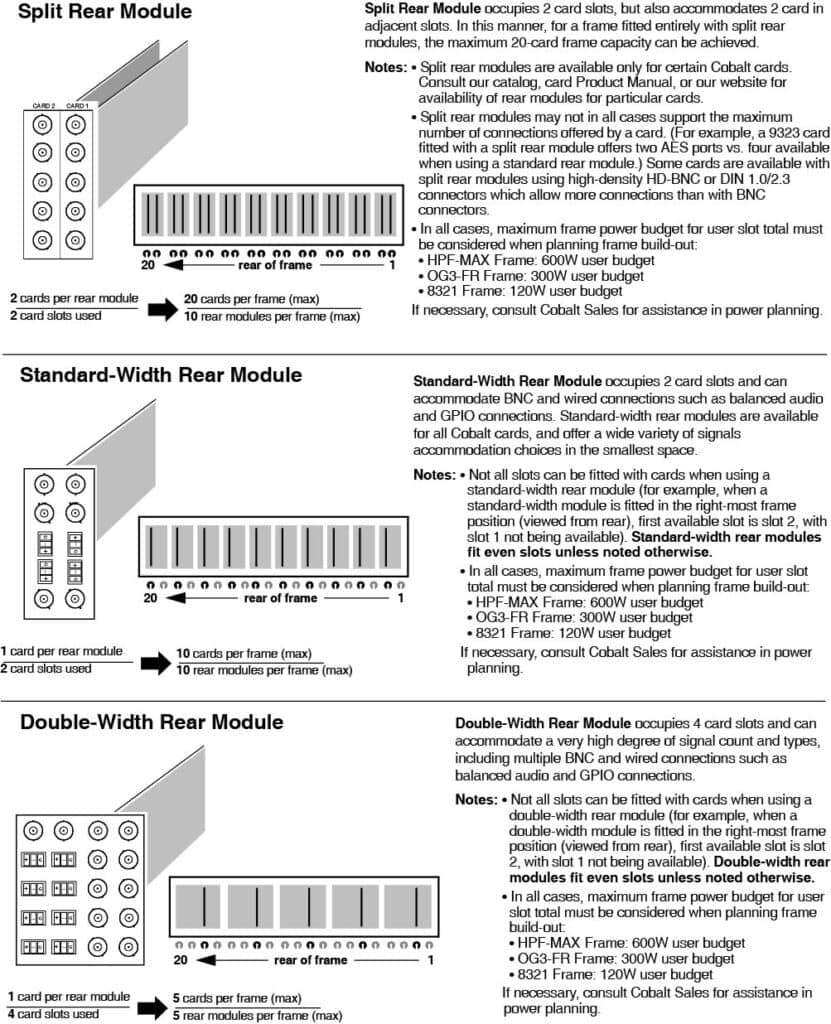

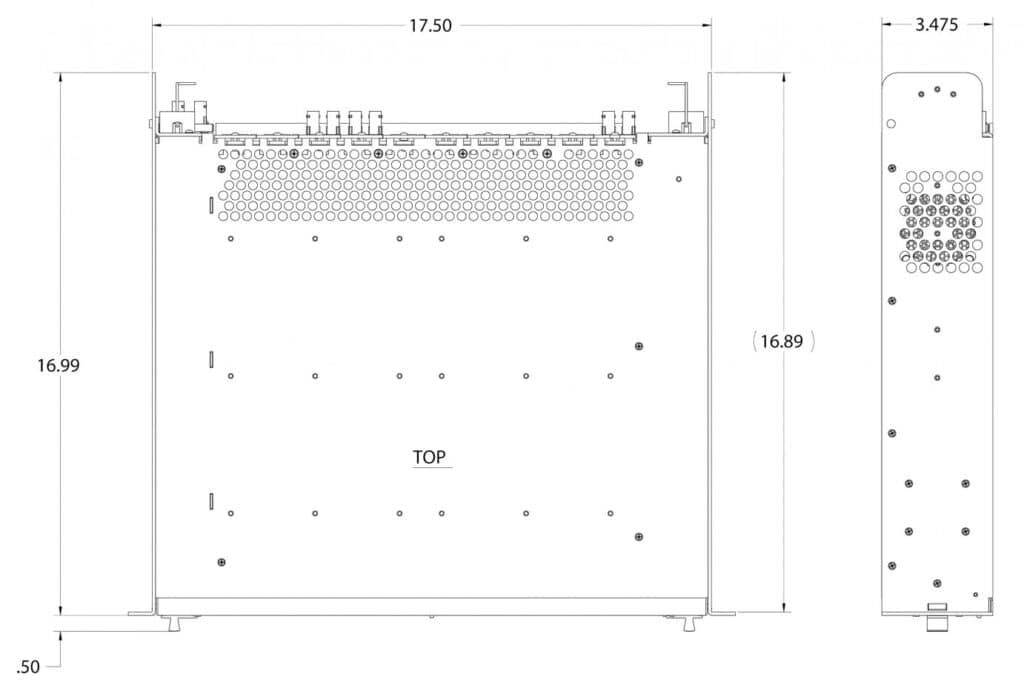

Diagrams

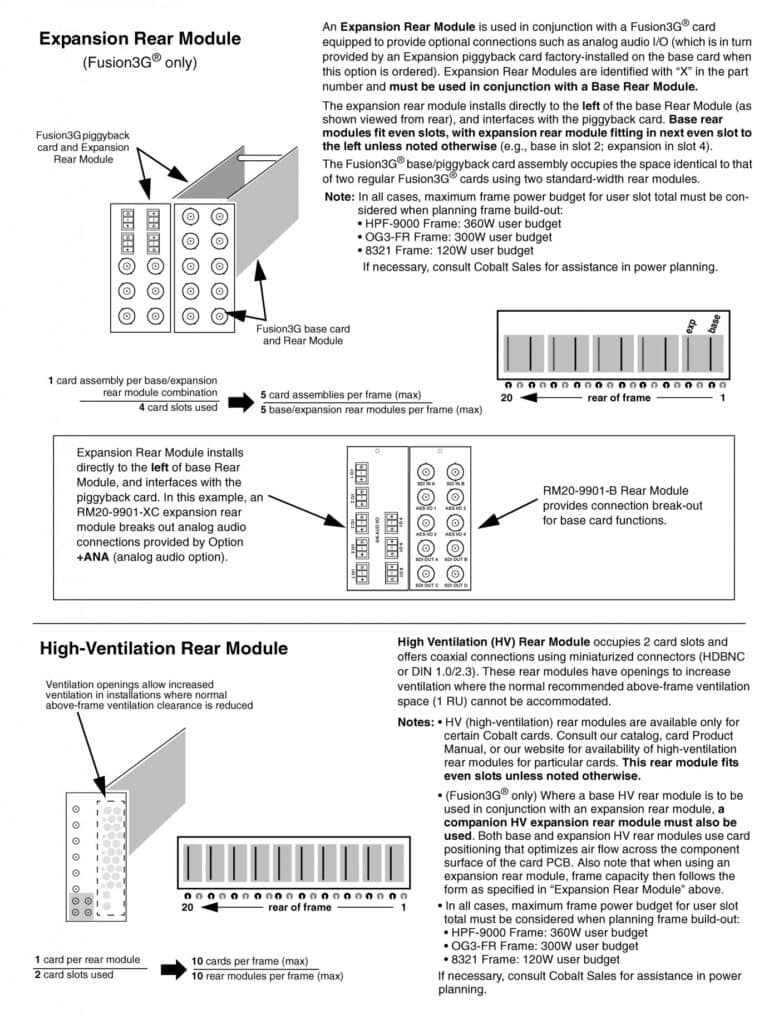

Note: Maximum cooling performance is obtained when a 1RU space is provided above the frame. Optional high-ventilation rear modules are available to increase airflow where above-frame cooling space is compromised.
Please contact Cobalt Digital Sales for more information regarding frame build-out where ventilation is less than optimal.
