The award-winning Cobalt® OG-PC-x86-A Integral Frame-Installed PC for openGear® Frames is a compact PC which is installed directly in the frame in the form of an openGear-style card with a double-width rear I/O module. The OG-PC-x86-A gets its power from the frame midplane with no external patches or sources. The full-featured PC is the perfect solution for a headless computer where rack space is limited — the OG-PC-x86-A frees-up the installation from wasting space on a separate 1RU server (especially useful for flypack setups). Using the
OG-PC-x86-A, special applications of your choice can be conveniently collocated directly in the frame.
The OG-PC-x86-A installs just like other openGear® device. The OG-PC-x86-A is equipped with a rear panel that provides dual GigE, USB 2.0 and 3.0, HDMI, serial, as well as a DisplayPort.
Basic Processing Details
• Intel® Pentium® N3710
• 1.6 GHz (2.56 GHz burst)
• 4-Core
• 8GB DDR3
Key Features
Self-contained compact integrated PC solution – eliminates the need for separate 1RU server in rack
Full-function high-speed PC with optional high-capacity SSD and dual HDD RAID backup availability
Obtains operating power from frame – no added or external power connections needed
Ruggedized openGear-compliant design. Plugs directly into frame with user ports exposed on rear of unit.
Hardware control features such as power on/off, reset, and sleep are accessible via DashBoard remote control – no need for physical collocation to invoke hard reset or similar actions
Full complement of user ports, including dual GigE and USB, as well as HDMI and DisplayPort
Low power consumption with minimal effect on overall frame power budget
Specifications
Processor System
CPU: Intel® Pentium® N3710
Base Frequency: 1.6 GHz (burst to 2.56 GHz)
Core Number: 4
BIOS: AMI UEFI 64 Mbit
Instruction Set: 64 bit
For detailed information on the Intel N3710 Processor used in this product, please see
Intel® Pentium® Processor N3710.
Memory
Technology: DDR3L 1600 MHz
Max. Capacity: 8GB
Storage
1x M.2 M-Key SATA (OS SSD specification defined by order option)
2x HDD 2.5in SATA
Display
Intel® HD Graphics 505
HDMI: 1.4b up to 3840 x 2160 at 30 Hz
DisplayPort: 1.1a up to 3840 x 2160 at 30 Hz
Ethernet
Speed: 10/100/1000 Mbps
Connectors: (2) RJ45 on rear I/O panel
Power
Note: Power figures below represent worse-case (all USB ports fully loaded; HDDs (if equipped) spinning). Current draw is distributed across multiple slots using supplied rear I/O module. As such, per-slot power consumption is not exceeded for supported 20-slot frames HPF-9000 and oGx models.
Power Consumption (no RAID HDD options): 48.6 W
Power Consumption (RAID; 1 HDD; typ): 53.6 W
Power Consumption (RAID; 2 HDD; typ): 58.6 W
Power Management: ACPI
Battery: Lithium 3 V / 210 mAH
Environmental
Operational Temperature: 0° to 45° C (32° to 113° F)
Operational Humidity: 40° C (104° F) @ 95% RH Non-Condensing
Non-Operational Temperature: -40° C to 85° C (-40° F to 185° F)
Diagrams

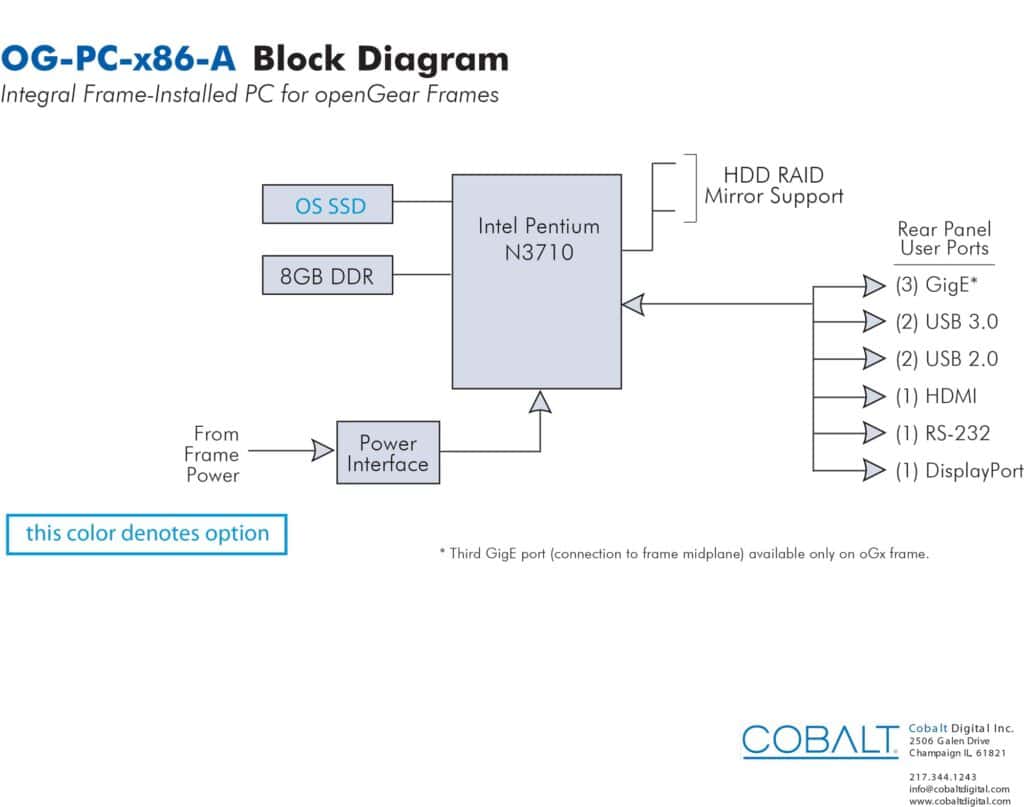

Block Diagram

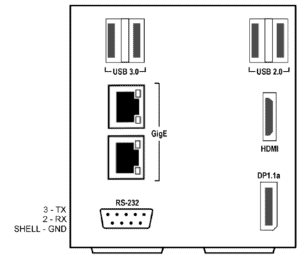

RM20-OG-PC-A
- (2) USB 3.0 (standard connector)
- (2) USB 2.0 (standard connector)
- (1) HDMI Out
- (1) DP1.1a
- (2) 10/100/1000 BaseT Ethernet (RJ-45)
- (1) RS-232 (DSUB 9(F)
Note: Options or ordering line items denoted as “-“ are hardware orderable items (such as drives pre-loaded or unloaded with OS choices).
Note: OG-PC-x86-A can be equipped to support user-added HDDs (up to two). Please contact your sales representative for more information and ordering details.
