The OGCP-9000/CC is a remote-control panel designed with a special emphasis on the Color Corrector models and models equipped with +COLOR option.
Communication with the openGear™ frame occurs over the optimized high-speed Ethernet control protocol, allowing lightning-fast access. The OGCP-9000/CC offers instantaneous, real-time adjustments, so operators can manipulate on-air signals with confidence and precision.
Rotary controls allow direct access to gain, gamma, and black for each of the RGB channels, in addition to YCbCr proc controls.
An easy-to-use keypad enables intuitive access with minimal submenus. Cards use only one level of submenus to access all of its functions.
The control panel is optimized for both bright and low-light environments. A large format, super-bright, wide-angle color LCD screen shows sharp and clear text; operators can select either a white or black background. Other features include a fully backlit keypad and user-adjustable LED backlight.
Station engineers can configure the panel to restrict availability of specific cards and parameters for operation. Configuration is done through a simple web interface, where configurations can be exported, backed up, and re-imported easily.
The OGCP-9000/CC works seamlessly with DashBoard™ control software. Any changes made with either system are instantly reflected on the other.
The OGCP-9000 family of panels also includes the award-winning OGCP-9000 remote control panel.
- Color Correction Synergies with Cobalt Color Correction and OGCP-9000/CC Remote Control Panel
Key Features
Real time adjustments, excellent for on-air manipulation
No deep submenus – all parameters can be accessed quickly
10/100 Mbps Ethernet TCP/IP connection
10/100 Mbps Ethernet TCP/IP connection
Completely configurable with password protected web interface
Optimized for bright and low light environments
Seamless integration with DashBoard™ control software
Rugged 2RU rack mounted chassis
Five year warranty
Specifications
Power
9 Watts
AC Power:
* IEC C14 Chassis Plug. 90-264 VAC @ 47-63 Hz
* Note: The AC input feature is no longer available for new orders
DC Power:
12 VDC, 1.0 A
Ethernet:
10/100 Mbps with Auto-MDIX on RJ45 socket with DC isolation
LCD:
500 cd/m2 (nits) of brightness, 300:1 contrast ratio, 120 degree viewing angle
Size:
Standard 2 RU; 5″ depth

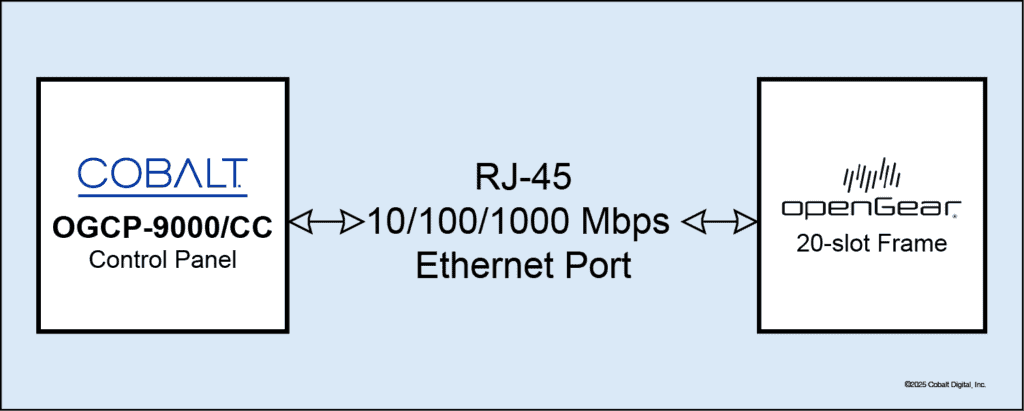

Diagrams
