The Cobalt® PACIFIC 9992-2DEC-4K-HEVC 4K HEVC/AVC/MPEG-2 Software Defined Broadcast Decoder with Single-Channel 4K or Dual-Channel 2K Video Paths is a broadcast-grade multi-standard decoder designed to meet the most stringent requirements for today’s broadcasters. It supports MPEG-2, AVC (H.264) and HEVC (H.265), with resolution up to 4K, and a full complement of audio decoding capabilities. The PACIFIC 9992-2DEC-4K-HEVC is an industry standard openGear® card module and provides an ideal platform for transitioning to state-of-the-art decoding capabilities.
The PACIFIC 9992-2DEC-4K-HEVC has a flexible licensing structure that allows customers to manage CAPEX while allowing room for future growth as needs change.
Key Features
Future-Proof — The PACIFIC 9992-2DEC-4K-HEVC Decoder supports MPEG-2, MPEG-4 AVC (H.264) and HEVC (H.265), so it can be deployed today as well as tomorrow.
Industry Standard Form-Factor — The PACIFIC 9992-2DEC-4K-HEVC is offered in the industry-standard openGear format, and is compatible with existing deployed openGear frames.
High Density — The PACIFIC 9992-2DEC-4K-HEVC supports up to two independent 1080p60 input streams, or a single UHD 4Kp60 input stream. One openGear frame can support up to 10 cards, for a total of 20 HD or 10 UHD 4K channels.
Full Audio Support — The PACIFIC 9992-2DEC-4K-HEVC supports MPEG-1 Layer II, AAC-LC, HE-AAC, Dolby AC-3/EAC-3 and LPCM (SMPTE-302M), as well as Dolby AC-3/EAC-3 pass-thru. With an optional audio board, the decoder can support up to 16 audio channels with each video service.
Ultra Low Latency — Low latency modes available
Base Unit Features — • Support for two decode channels up to 1080p60, or one 4K channel • Support for MPEG-2, MPEG-4 AVC (H.264), and HEVC (H.265) • Support for 4:2:0 8-bit/10-bit decoding • Full ancillary data support • Support for 4 stereo pairs (8 audio channels) in any combination of MPEG-1 Layer II, AAC-LC, and 'HE-AAC (v1/v2) modes • Supports UDP and RTP. Other protocols available as options. • Remote control/monitoring via Dashboard™ software • Hot-swappable • Supports all popular formats: 480i, 576i, 720p, 1080i, 1080pSF, 1080p, 2160p
Five-year warranty
Specifications
Inputs
(2) 75Ω DVB-ASI inputs
(2) Gigabit Ethernet ports for IP input, supporting the following protocols:
– UDP unicast/multicast
– RTP unicast/multicast with optional SMPTE-2022 FEC
– HTTP Live Streaming
– RIST for contribution over the Internet
Optional SMPTE-2110 baseband video over IP turnaround (Future release availability)
Outputs
(2) SDI outputs each supporting 12G-SDI, 3G-SDI, HD-SDI and SD-SDI
(2) SDI outputs each supporting 3G-SDI, HD-SDI and SD-SDI
Support for all standard frame rates (interlaced and progressive):
23.98, 24, 25, 29.97, 30, 50, 59.94, 60
Video Post-Processing
Support for up/down/cross conversion of output video (independent of incoming stream) (Future release availability)
Conversion between interlaced and progressive
Frame rate conversion
High Dynamic Range (HDR) support
Video Decoding
Decoding Standards:
– MPEG-2
– MPEG-4 AVC (H.264)
– HEVC (H.265)
Support for up to two independent 1080p60 decode sessions
Support for UHD decoding in AVC and HEVC modes (Maximum resolution 3840x2160p60)
Support for 4:2:0 and 4:2:2 (option) color spaces in all modes
Support for 8-bit / 10-bit decoding in all modes
Low Latency decoding supported
Audio Decoding
Decoding Standards:
– MPEG-1 Layer II
– AAC-LC
– HE-AAC (v1/v2)
– Dolby AC-3
– Dolby EAC-3
– LPCM (SMPTE-302M)
– Dolby AC-3/EAC-3 pass-thru support
(5.1-Surround encoding available for AAC-LC, HE-AAC, Dolby AC-3 and Dolby EAC-3; subject to licensing)
Maximum number of channels supported (subject to licensing):
– MPEG-1 Layer II: 16 stereo pairs (32 audio channels)
– Dolby AC-3: 16 stereo pairs (32 audio channels)
– Dolby EAC-3: 8 stereo pairs (16 audio channels)
– AAC-LC: 8 stereo pairs (16 audio channels)
– HE-AAC (v1/v2): 8 stereo pairs (16 audio channels)
Optional support for 5.1 Surround Sound encoding, in AAC and Dolby modes.
Optional audio module increases the capacity to 32 stereo pairs (64 audio channels), allowing full 16-channel support for the four HD inputs, in all compression modes (Future release availability).
Ancillary Data Support
Closed-Captioning: SMPTE-334M (EIA-608 and EIA-708 supported), Line 21 (SD sources)
OP-47/SMPTE RDD-08 teletext subtitles (Future release availability)
AFD: SMPTE-2016, Line 20/22 WSS (SD sources)
SCTE-104 to SCTE-35 conversion
SMPTE-2038 generic ancillary data transport (timecode, KLV, etc.)
Diagrams

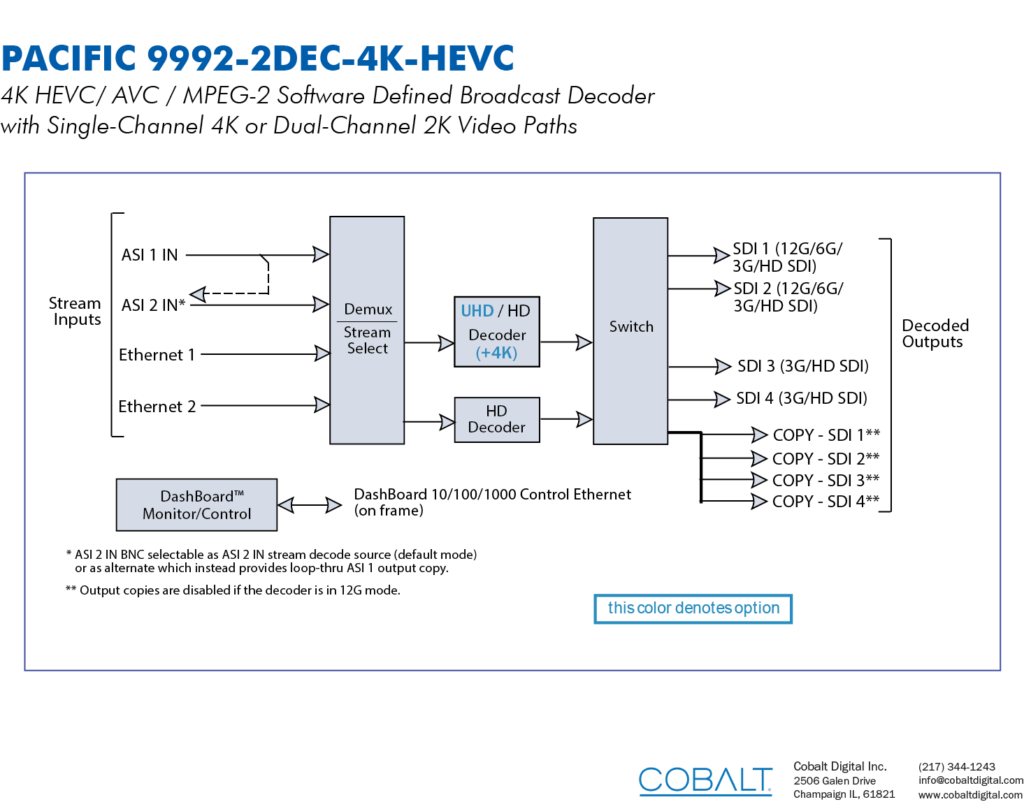

Block Diagram
RM20-9992-DEC-B-HDBNC
- (2) 12G/6G/3G/HD/SD-SDI Video Out
- (2) 3G/HD/SD-SDI Video Out
- (4) SDI Video Copy Out
- (2) ASI In BNCs
- (2) GigE Media Ports
- COMM/GPIO
(All SDI coaxial connectors HD-BNC)
