The Cobalt® ROYAL 9257 1×9 MADI Audio Distribution Amplifier provides an award-winning card-based solution for distribution of AES10 MADI signals. The card supports sampling frequencies up to 96 kHz, with a 64-channel payload supported at the industry standard 48 kHz sampling rate (all other sampling rates specified as valid per AES10-2003 are also supported at various payload capacities). Utilizing the openGear® open-architecture platform, the 9257 offers scalable incorporation and the easy-to-use DashBoard™ setup and control operator interface. Up to 20 of the 9257 cards can be installed in a 20 slot frame.
The 9257 can reliably equalize up to 250m of 1694A, and offers DashBoard™ display and alarm for input signal status and LOS alarms. The card is available with several Rear I/O Module choices that offer BNC, DIN1.0/2.3, or HD-BNC connectors. Full user remote and card-edge monitor/control allows full card status and control access locally or across a standard Ethernet network.
Key Features
Card-based design allows scalability, with up to 20 input channels per frame
Low power/high-density design; only 3.3 Watts per card
Up to 250m 1694A receive EQ capability
Remote control/monitoring via DashBoard™ software
Specifically designed and optimized for AES10 MADI interface
Hot-swappable
Five year warranty
Specifications
Power
3.3 Watts
MADI (AES10-2003) Input
Number of Inputs: 1
Impedance: 75 Ω
Data rates: 125 Mbps
Level: 0.15 – 0.6 Vp-p
MADI (AES10-2003) Outputs
Number of Outputs: 9 (max.)
Impedance: 75 Ω
Level: 0.3 – 0.6 Vp-p
Jitter: 0.1 UI
Diagrams

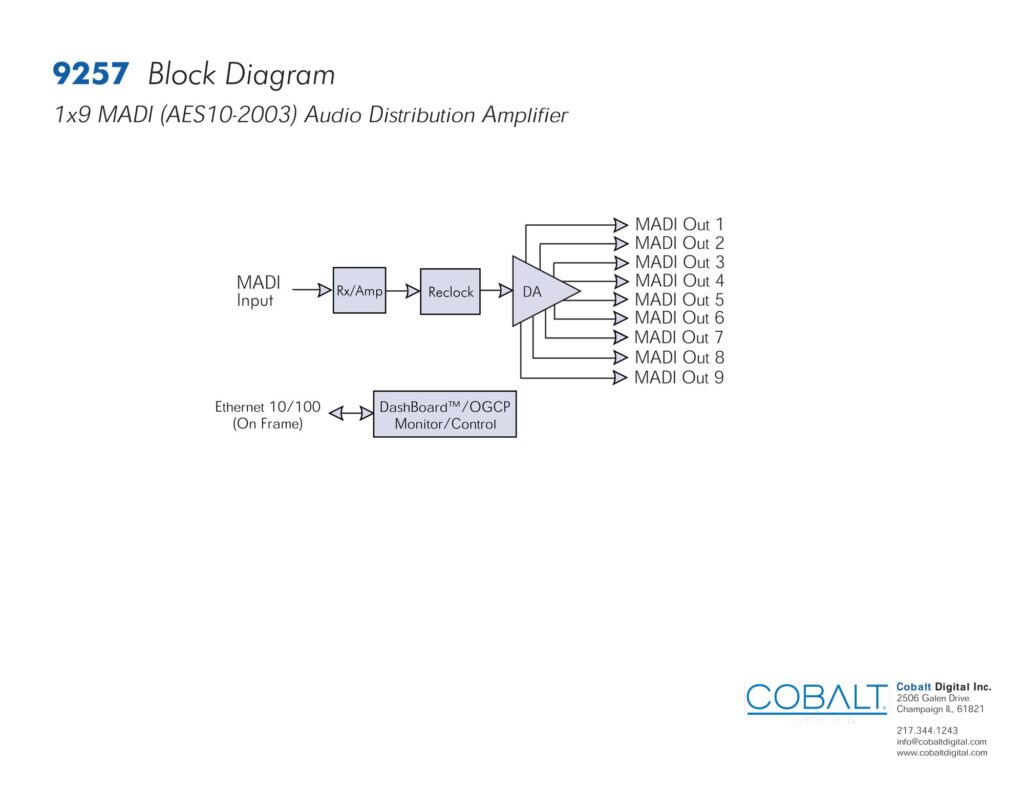

Block Diagram
RM20-9257-A

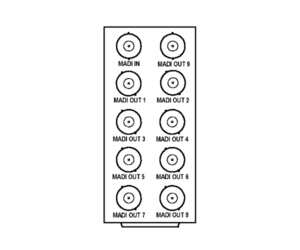

- MADI In
- (9) MADI Out
(All coaxial connectors BNC)
RM20-9257-A/S

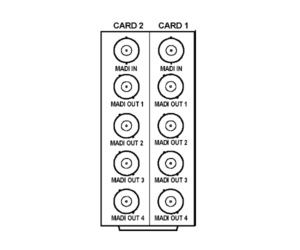

(Dual-card (split) rear module; connections are per card)
- MADI In
- (4) MADI Out
(All coaxial connectors BNC)
RM20-9257-B/S-DIN

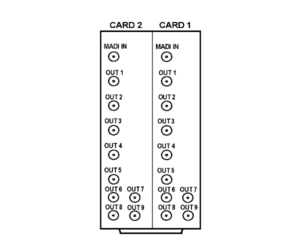

(Dual-card (split) rear module; connections are per card)
- MADI In
- (9) MADI Out
(All coaxial connectors DIN1.0/2.3)
RM20-9257-B/S-HDBNC
(Dual-card (split) rear module; connections are per card)
- MADI In
- (9) MADI Out
(All coaxial connectors HDBNC)
