The Cobalt® ROYAL 9910DA-1Q-3G-RCK 3G/HD/SD/ASI Single-Channel Multi-Rate Reclocking DA supports one input channel which can be distributed to up to 16 DA outputs. The 9910DA-1Q-3G-RCK is multi-rate with user enable/disable reclocking, and supports SDI and ASI/DVB on all inputs and outputs with non-inverting outputs.
Excellent receive performance allows receive EQ for up to 120m 3G and 160m HD cable length (1694A). Card edge and DashBoard™ remote status monitoring indicates input lock. Up to 10 of the 9910DA-1Q-3G-RCK cards can be installed in a frame to provide distribution of up to 160 outputs.
Full user DashBoard™ or Remote Control Panel remote control allows full status and control access locally or across a standard Ethernet network.
Key Features
Full support of 3G/HD/SD-SDI and ASI/DVB
Supports all popular formats: 480i, 576i, 720p, 1080i, 1080pSF, 1080p
Reclocking can be enabled or disabled for input
Excellent receive performance – EQ allows 1694A cable lengths up to 120m (3G) / 160m (HD) / 400m (SD)
Input data rate auto-detection for all industry-standard data rates
All outputs are non-inverting – ASI can be outputted on any output
Card edge and DashBoard™ status and individual input lock indicators
Hot-swappable
Five year warranty
Specifications
Power
< 3 Watts
3G/HD/SD-SDI / ASI Inputs
(1) 75Ω coaxial input (A)
SDI Formats Supported: SMPTE 259M, SMPTE 292M, SMPTE 424M
SDI Return Loss: >15 dB up to 1.485 GHz; >10 dB up to 2.970 GHz
Receive Performance (Cable Length; Belden 1694A)
3 Gbps: 120m
1.485 Gbps: 160m
143-360 Mbps: 400m
3G/HD/SD-SDI / ASI Outputs
75Ω coaxial outputs (16 total).
Signal Level: 800 mV nominal
Return Loss: >15 dB at 5 MHz – 1.485 GHz
Jitter (wideband): HD < 0.2 UI
Diagrams

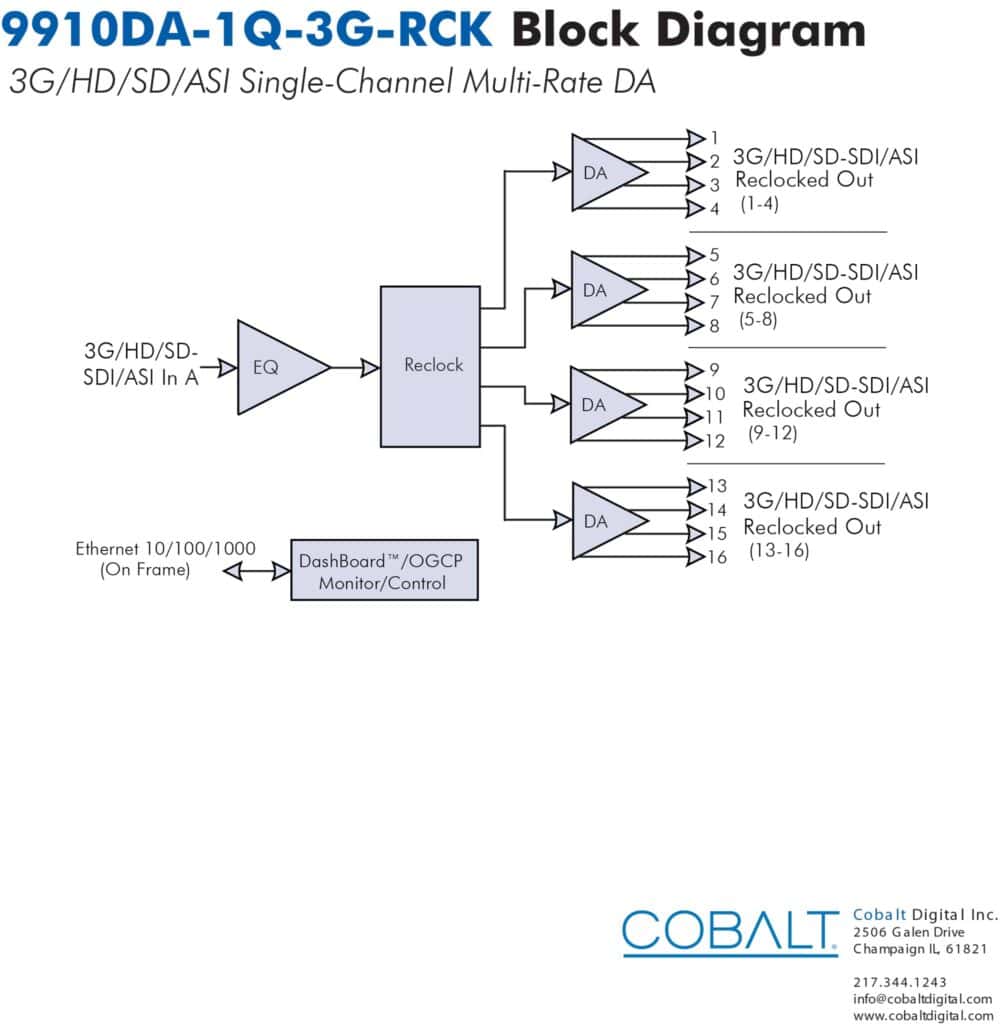

Block Diagram
RM20-9910-1Q-B-DIN
- (1) SDI/ASI In
- (16) SDI/ASI Out
(All coaxial connectors DIN 1.0/2.3)
RM20-9910-1Q-B-HDBNC
- (1) SDI/ASI In
- (16) SDI/ASI Out
(All coaxial connectors HDBNC)
RM20-9910-1Q-D
- 1) SDI/ASI In
- (9) SDI/ASI Out
(All coaxial connectors BNC)
RM20-9910-1Q-E
- (1) SDI/ASI In
- (16) SDI/ASI Out
(All coaxial connectors BNC)
