The Cobalt® ROYAL 9910DA-4Q-3G 3G/HD/SD/ASI Quad-Channel Multi-Rate DA with x4 Output Crosspoint supports four input channels which can be crosspoint-routed to any of 16 DA outputs. The 9910DA-4Q-3G is multi-rate, and supports SDI and ASI/DVB on all inputs and outputs with non-inverting outputs. The quad-input capacity provides a one-card solution for distribution of 3G quadrant-division content over 3G/HD/SD-SDI interfaces.
The extremely flexible crosspoint (which is user-configurable via DashBoard™ GUI remote control) allows quad 1×4, dual 1×8, single 1×16 and other routing possibilities (such as dual 1×4 plus a single 1×8). Any of the four input channels can be distributed or duplicated across four groups of 1×4 DAs, and any of the four inputs can be set to use an alternate failover input upon loss of signal.
Excellent receive performance allows receive EQ for up to 120m 3G and 160m HD cable length (1694A). Card edge and DashBoard™ remote status monitoring indicates input lock for each input channel. Up to 10 of the 9910DA-4Q-3G cards can be installed in a frame to provide 40 channels of input, with distribution to up to 160 outputs.
Full user DashBoard™ or Remote Control Panel remote control allows full status and control access locally or across a standard Ethernet network.
Key Features
Full support of 3G/HD/SD-SDI and ASI/DVB
Supports all popular formats: 480i, 576i, 720p, 1080i, 1080pSF, 1080p
Excellent receive performance – EQ allows 1694A cable lengths up to 120m (3G) / 160m (HD) / 400m (SD)
One-card solution for distribution of 3G quadrant-division content over 3G/HD/SD-SDI interfaces
Flexible output crosspoint allows card to function as quad-channel 1x4, dual-channel 1x8, or single-channel 1x16 reclocking DA
Failsafe mode automatically switches to selected secondary input on loss of primary input
Input data rate auto-detection for all industry-standard data rates
All outputs are non-inverting – ASI can be outputted on any output
Card edge and DashBoard™ status and individual input lock indicators
Hot-swappable
Five year warranty
Specifications
Power
< 3 Watts
3G/HD/SD-SDI / ASI Inputs
(4) 75Ω coaxial inputs (A thru D)
SDI Formats Supported: SMPTE 259M, SMPTE 292M, SMPTE 424M
SDI Return Loss: >15 dB up to 1.485 GHz; >10 dB up to 2.970 GHz
Receive Performance (Cable Length; Belden 1694A)
3 Gbps: 120m
1.485 Gbps: 160m
143-360 Mbps: 400m
3G/HD/SD-SDI / ASI Outputs
(4×4) 75Ω coaxial outputs (16 total). Each group of 4 outputs can be crosspoint connected to inputs A thru D.
Signal Level: 800 mV nominal
Return Loss: >15 dB at 5 MHz – 1.485 GHz
Jitter (wideband): HD < 0.2 UI
Diagrams

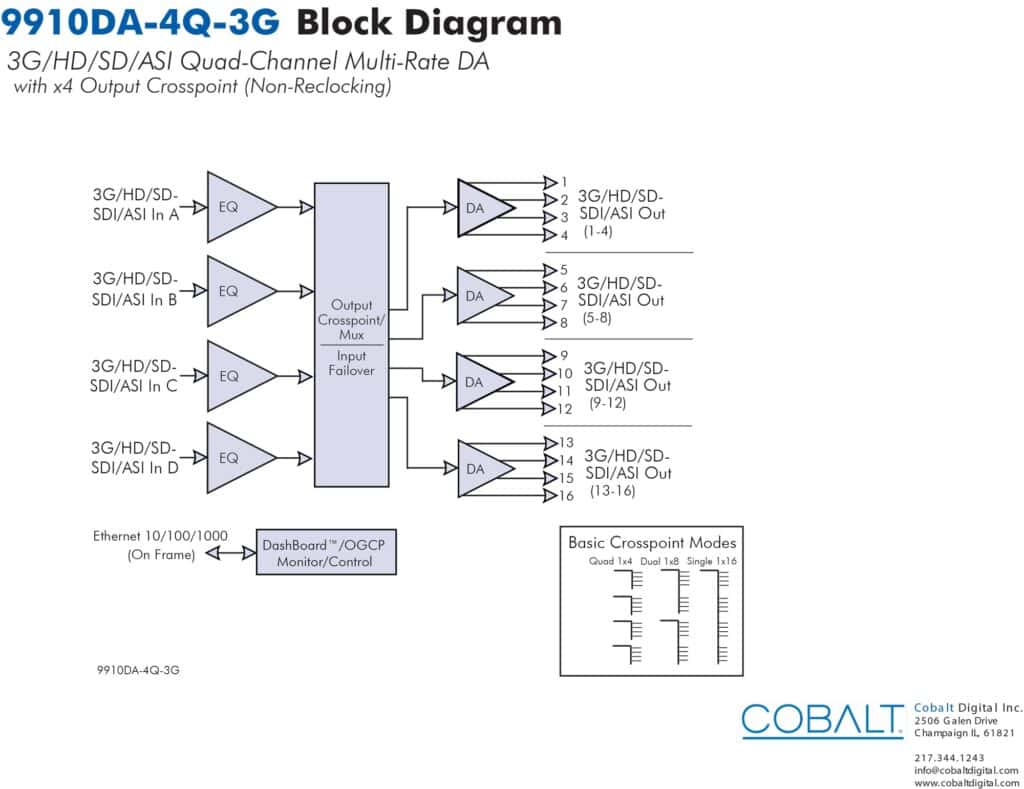

Block Diagram
Rear I/O Module output designations here correlate to output numbers for four DA quadrants as shown in the card block diagram (for example, SDI OUT 3 in diagrams below is tied to (driven from) DA quadrant “SDI Out (1-4)” in the block diagram; SDI OUT 5 in diagrams below is tied to (driven from) DA quadrant “SDI Out (5-8)” in the block diagram). As such, SDI outputs within a quadrant group can only be sourced from a particular input at one time (for example, if the card is set to feed SDI IN A to quadrant SDI Out (1-4), the rear module outputs 1 thru 4 will all output SDI IN A). Dissimilar inputs cannot be routed within a quadrant group (for example, SDI OUT 1 sourced from SDI IN A and SDI OUT 2 sourced from SDI IN B).
RM20-9910-4Q-A
- (2) SDI/ASI In
- (8) SDI/ASI Out
(All coaxial connectors BNC)
RM20-9910-4Q-B-DIN
- (4) SDI/ASI In
- (16) SDI/ASI Out
(All coaxial connectors DIN 1.0/2.3)
RM20-9910-4Q-B-HDBNC
- (4) SDI/ASI In
- (16) SDI/ASI Out
(All coaxial connectors HDBNC)
RM20-9910-4Q-C
- (3) SDI/ASI In
- (7) SDI/ASI Out
(All coaxial connectors BNC)
RM20-9910-4Q-D
- (1) SDI/ASI In
- (9) SDI/ASI Out
(All coaxial connectors BNC)
RM20-9910-4Q-E
- (4) SDI/ASI In
- (16) SDI/ASI Out
(All coaxial connectors BNC)
Note: Connector numbers with asterisks (*) here denote the connector generic designation number screened on the rear module PCB.
