The Cobalt® ROYAL 9910DA-AV Analog Video Distribution Amplifier provides 1×8 distribution with one analog input and eight 75Ω analog outputs. Card jumpers allow setting the input as differential (floating ground) or single-ended, and Hi-Z looping input or on-card 75Ω terminated. A trim control located on the front of the card allows gain control. The card can be accessed using DashBoard™ remote control for status monitoring. Status monitoring shows the video format of the input signal.
Key Features
Multi-mode input provides differential or single-ended input and hi-Z looping or card-terminated operation
Remote monitoring via DashBoard™ software or OGCP-9000 Remote Control Panel. Card Status display shows presence and video format (e.g., 525i, 720p, 1080i) of input signal.
Hot-swappable
Five year warranty
Specifications
Power
2 Watts
Analog Video Input
Number of inputs: (1)
(Compatible with any NTSC or PAL black-burst or tri-level analog video format.)
Impedance: User selectable as hi-Z looping or card-terminated 75Ω
Level: 1 Vp-p, nominal
Return Loss: 46 dB @ 3.58 MHz
Input modes: User selectable as differential/single-ended and AC or DC coupled
Analog Video Outputs
Number of DA outputs: up to (8)
Impedance: 75Ω
Level: 1 Vp-p, nominal
Looping Output: (1)
Performance
Frequency response: >0.05 dB @ 3.58 MHz
Differential Gain: >0.15% @ 3.58 MHz
Differential Phase: >0.15° @ 3.58 MHz
S/N: >60 dB; 5 MHz BW
Diagrams

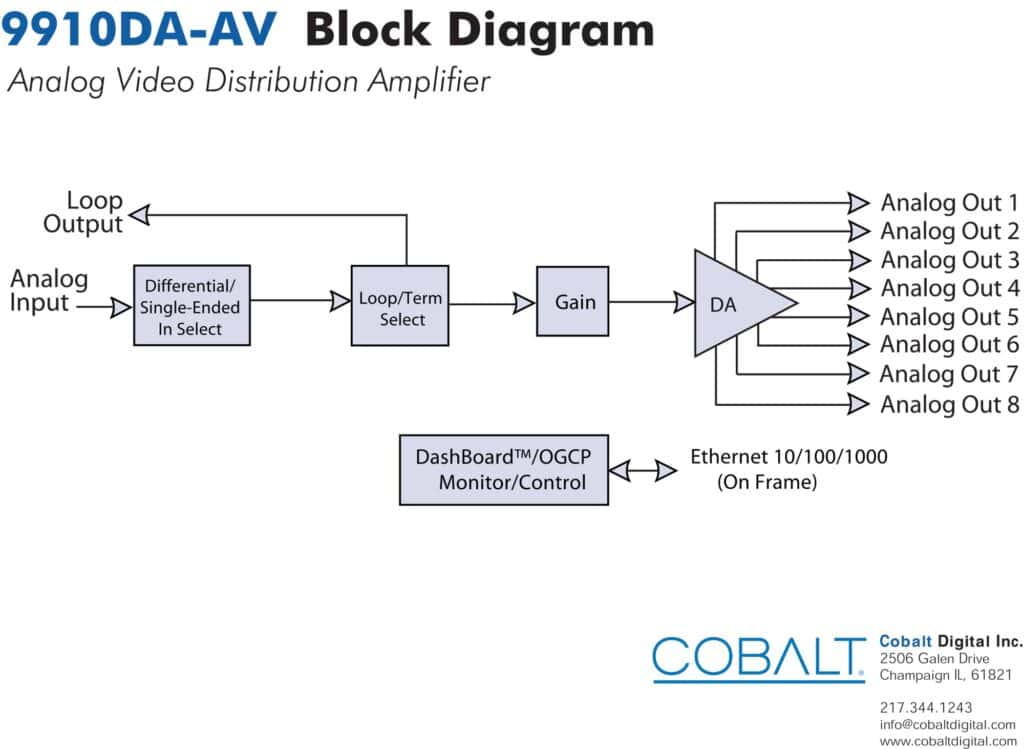

Block Diagram
Some Rear I/O Modules shown below may also be used for other Cobalt card models. This allows you to re-use rear modules from one card model to another. The Manufacturing Part Number (MPN) shown in the images below is the common code that is used to identify multi-use rear modules. Cross-compatibility can be checked using this number and About Cobalt Rear I/O Modules and Rear Module Cross-Reference at Reference and Help Documents.
RM20-9910AV-B
- Analog Video In
- (1) Loop Output
- (8) Analog Video Out
(All coaxial connectors BNC)

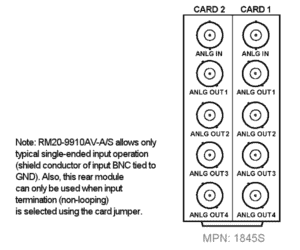

RM20-9910AV-A/S
(Dual-card (split) rear module; connections are per card)
- Analog Video In
- (4) Analog Video Out
(All coaxial connectors BNC)

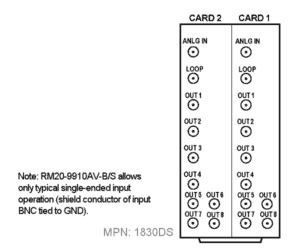

RM20-9910AV-B/S-DIN
(Dual-card (split) rear module; connections are per card)
- Analog Video In
- (1) Loop Output
- (8) Analog Video Out
(All coaxial connectors DIN1.0/2.3)
RM20-9910AV-B/S-HDBNC
(Dual-card (split) rear module; connections are per card)
- Analog Video In
- (1) Loop Output
- (8) Analog Video Out
(All coaxial connectors HDBNC)
