The Cobalt® ROYAL 9913DA-AES110-RG 110-Ohm (Balanced) AES/EBU Distribution Amplifier with Remote Gain Control is a broadcast-quality AES distribution amplifier that provides up to eight copies of the input AES/EBU signal. A transformer-coupled input helps prevent ground loop and other grounding-related problems.
The 9913DA-AES110-RG supports audio sampling frequencies from 32kHz to 96kHz. Cable equalization and reclocking techniques enable the 9913DA-AES110-RG to recover the incoming digital audio signal reliably. The 9913DA-AES110-RG also includes built-in loudness measurement, with ITU1770 LKFS loudness measurement displayed in DashBoard.
A built-in DSP allows mono-mix and L/R-only outputs (these functions can be locked out for Dolby® signal processing). The DSP attenuation function allows overall gain (stereo ganged) trim (offset) via DashBoard™ remote control.
The space-saving design and very low power consumption of the 9913DA-AES110-RG provides for high density, allowing two cards to be collocated in adjacent slots and served by a single, standard-width “split” rear module.
Key Features
Full remote control of operating mode and gain control
Multiple DSP modes – stereo/pass-thru, mono mix, L/R only outputs
Transformer-coupled input prevents ground loop issues and other ground-related problems
DashBoard LKFS loudness display (10-second averaging)
Convenient DSP gain trim via DIP or remote control
Selectable card switch control or DashBoard™ remote control (usable with DashBoard™ and Cobalt OGCP-9000 remote control panels)
Hot-swappable
Five year warranty
Specifications
Power
< 2.2 Watts
AES Input
Number of Inputs: (1), balanced AES/EBU (transformer coupled)
Impedance: 110 Ω, balanced
Maximum Input Level: +27.5 dBu
Connector Type: WECO® removable modular
Equalization: 2000ft (650m) over 110 Ω, twisted-pair cable
Performance
Sampling Rates: 32 kHz to 96 kHz
Signal Level: 0.2 – 7 Vp-p
Resolution: 24-bit
Output Jitter: < 5 ns
AES Output
Number of Outputs: (8) max, balanced AES/EBU (available as stereo, pass-thru, mono-mixed, or L/R only)
Impedance: 110 Ω balanced
Return Loss: -25 dB
Connector Type: WECO® removable modular
Diagrams

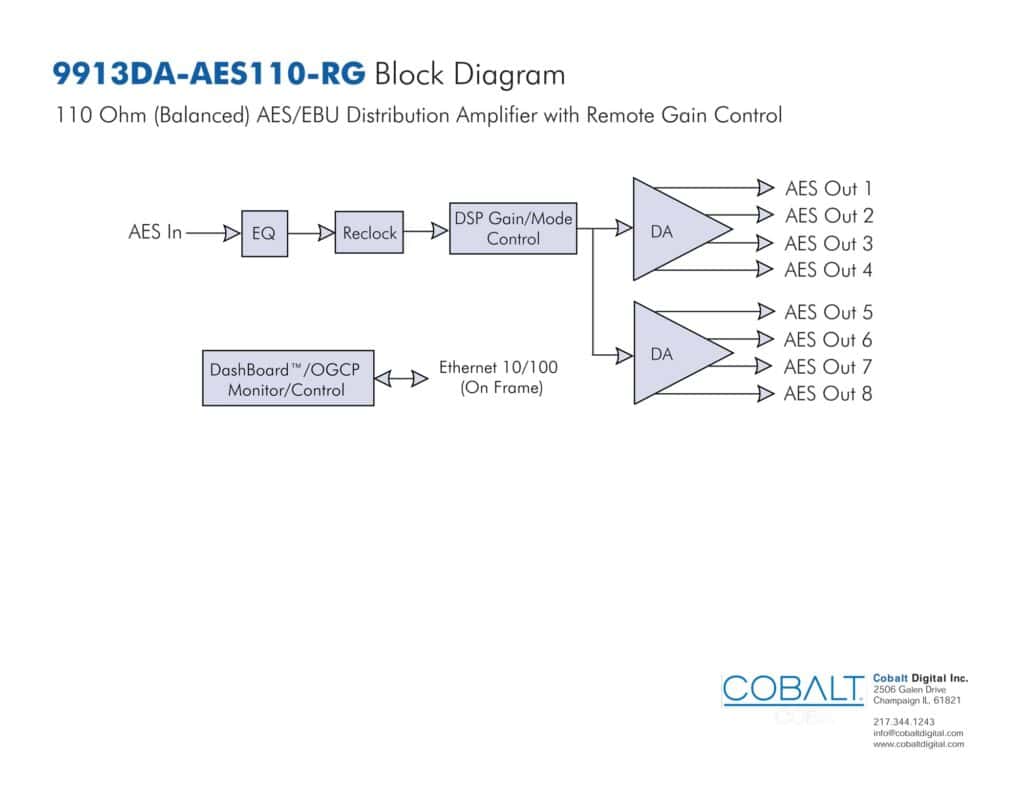

Block Diagram

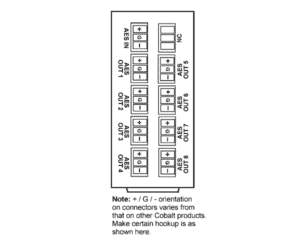

RM20-9913DA110-B
- (1) AES Audio In (AES IN)
- (8) AES Audio Out (AES OUT 1 thru AES OUT 8)

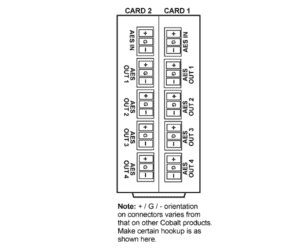

RM20-9913DA110-B/S
(Dual-card (split) rear module; connections are per card)
- (1) AES Audio In (AES IN)
- (4) AES Audio Out (AES OUT 1 thru AES OUT 4)
