The Cobalt® ROYAL 9917-DA-12G-1×8/2×4 Dual-Channel 12G/6G/3G/HD/SD/ASI/MADI Reclocking Distribution Amplifier is a two-channel, multi-rate SDI distribution amplifier capable of equalizing and reclocking 12G, 6G, 3G, HD, SD, ASI, and MADI signals. Excellent receiver EQ performance allows for up to 160m cable lengths for HD signals.

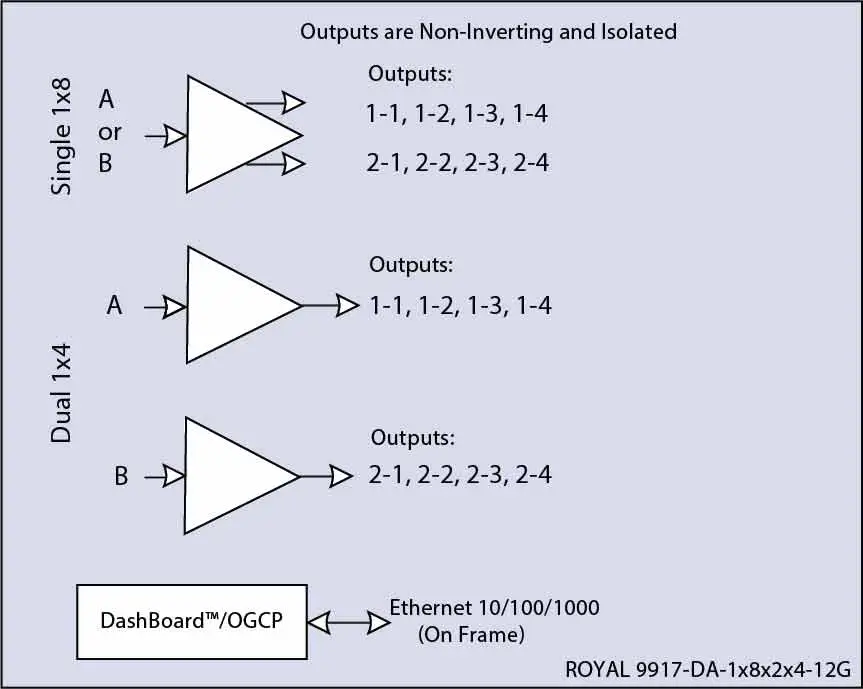

The Royal 9917-DA-12G-1×8/2×4 can be set up as either a single-channel 1:8 or dual-channel 1:4 using DashBoard™ remote control software or card-edge switches.
Key Features
Supports 12G/6G/3G/HD/SD-SDI/ASI/MADI
Dual or single input with user-configurable modes
Automatic rate detection for all industry-standard data rates
Equalize up to 160m of Belden 1694A cable at 1.485 Gbit
Not-inverting and isolated outputs
Failsafe mode automatically switches to secondary input on loss of primary input
Passes embedded audio, all ancillary data including closed caption and time code
HDR Video support
Available high-density rear modules allow up to 20 cards per frame
Remote control/monitoring via Dashboard ™ software or OGCP-9000 remote control panels
Hot-swappable
Five year warranty
Specifications
Electrical
Power: 3 Watts
12G/6G/3G/HD/SD-SDI Inputs
Number of Inputs: 2
Standard: SMPTE 424M, 292M, and 259M
Return Loss: >15 dB at 5 MHz – 1.485 GHz
>10 dB at 1.5 GHz to 3 GHz
Cable Length (tested with Belden 1694A) – Please note that cable length is dependent on the rear I/O module.
RM20-9917-A Rear I/O Module
12Gbps – 55m
6Gbps – 70m
3Gbps – 150m
1.5Gbps – 170m
270Mbps – 440m
RM20-9917-B/S-HDBNC Rear I/O Module
12Gbps- 25m
6Gbps – 60m
3Gbps – 120m
1.5Gbps- 140m
270Mbps – 250m
RM20-9917-B-HDBNC Rear I/O Module
12Gbps – 20m
6Gbps – 40m
3Gbps – 100m
1.5Gbps – 100m
270Mbps – 150m
Diagrams

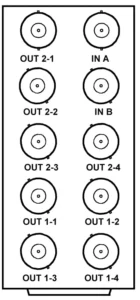

RM20-9917-A
(2) 12G/6G/3G/HD/SD-SDI/ASI/MADI Inputs
(8) 12G/6G/3G/HD/SD-SDI/ASI/MADI Outputs
(All coaxial connectors are BNC.)

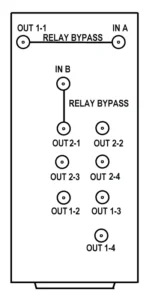

RM20-9917-B-HDBNC
(2) 12G/6G/3G/HD/SD-SDI/ASI/MADI Inputs
(8) 12G/6G/3G/HD/SD-SDI/ASI/MADI Outputs with Relay Bypass
(All coaxial connectors are HD-BNC.)

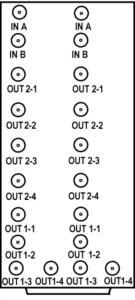

RM20-9917-B/S-HDBNC
(2) 12G/6G/3G/HD/SD-SDI/ASI/MADI Inputs
(8) Reclocked 12G/6G/3G/HD/SD-SDI/ASI/MADI Outputs 1X8 OR Dual 1X4 DA Modes)
(Connections are per-card. All coaxial connectors HD-BNC.)
