The COBALT SAPPHIRE 9926-4HtoS 3G/HD/SD Quad-Channel openGear® HDMI-To-SDI Converter with Per-Channel Frame Sync provides four independent paths of true 3G and HD conversions from HDMI to SMPTE 424M, 292M, or 259M. Each path is equipped with frame sync as well as full input and output audio crosspoints and optional per-path color correction. Input and output HDMI and SDI crosspoints allow program sourcing and distribution across any of the four HDMI inputs and four SDI outputs.
In existing openGear® installations, the quad-channel capacity of 9926-4HtoS can save space and lend to installation integrity over using throwdown devices. Preset save/load allows saving custom card settings while allowing instant revert to factory settings. Layered presets allow invoking changes related only to a specific area of concern (audio routing, for example) while not changing any other processing settings or aspects. Full user DashBoard™ or Remote Control Panel remote control allows full status and control access locally or across a standard Ethernet network.
Key Features
Supports all popular formats: 480i, 576i, 720p, 1080i, 1080p
Four independent HDMI-to-SDI processing paths on a single openGear® cards neatly integrates high capacity in openGear® environments
Each path equipped with frame sync with configurable manual or LOS-detect insertion of frozen frame or selectable-color flat-field. Optional per-path color correction.
Full input and output audio crosspoints, including independent flex mix, stereo downmixers, and audio delay functions
Remote control/monitoring via DashBoard™ software or OGCP-9000 Remote Control Panel
Hot-swappable
Make 9926-4HtoS into a standalone unit by using 9926-4HtoS with our BBG-1300-FR 1RU Enclosure for openGear® Cards standalone enclosure
Five year warranty
Specifications
Note: All specifications are preliminary and subject to change.
Power
49 Watts
Standards Supported
SMPTE 259M, 292M, 424M
HDMI Inputs
(4) HDMI 2.0; mini connectors
3G/HD/SD-SDI Outputs
(2×4) 75Ω outputs (max)
Output Signal Level: 800 mV ±10%
DC Offset: 0 V ± 50 mV
Alignment Jitter (3G/HD/SD): < 0.3/0.2/0.2 UI
Frame Sync Audio/Video Delay
Max offset: 20 frames
Latency (min): 1 frame
User Audio Delay Offset from Video
Bulk delay control: -33 msec to +3000 msec.
Per-channel delay controls: -800 msec to +800 msec
Frame Reference Input
(2) reference from frame bus. SMPTE 170M/318M “Black Burst”, SMPTE 274M/296M “Tri-Level”
Note: Per-path frame reference offers independent per-path controls (such as video delay offset). However, all paths must be locked to the same selected reference selection (e.g., frame REF 2 used for each path).
Diagrams

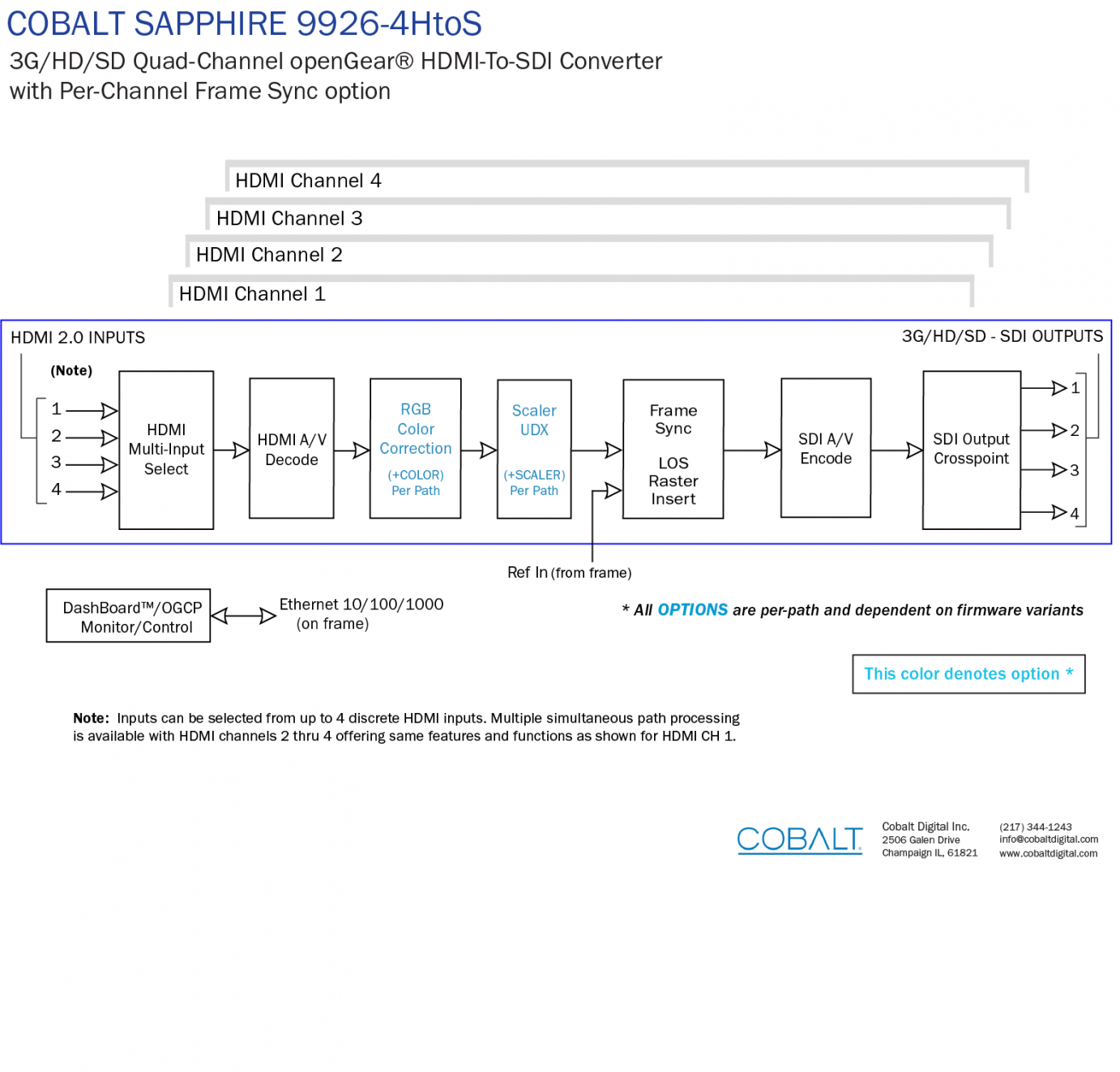

Block Diagram

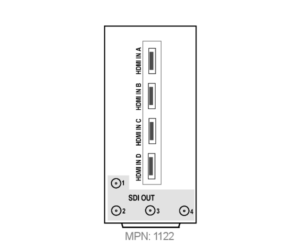

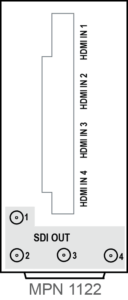

RM20-9926-B-HDBNC
• (2) HDMI Inputs
• (4) SDI Outputs – HDBNC
Note: Due to the alignment of the 9926-2HtoS card and this rear module, the combination of the card and rear module will consume the adjacent even frame slot in addition to the odd slot occupied by the card.
Note: Mates to card in odd slot.
