The COBALT SAPPHIRE 9927-2StoH 12G/6G/3G/HD/SD Dual-Channel openGear® SDI-To-HDMI Converter with Per-Channel Frame Sync provides two independent paths of true 12G / 3G and HD conversions from SMPTE 2082-1, 424M, 292M, or 259M SDI to HDMI. Each path is equipped with frame sync as well as full input and output audio crosspoints and optional per-path color correction. Input and output SDI and HDMI crosspoints allow program sourcing and distribution across either of the two SDI inputs and two HDMI outputs.
In existing openGear® installations, the dual-channel capacity of SAPPHIRE 9927-2StoH can save space and lend to installation integrity over using throwdown devices. Preset save/load allows saving custom card settings while allowing instant reverting to factory settings. Layered presets allow invoking changes related only to a specific area of concern (audio routing, for example) while not changing any other processing settings or aspects. Full user DashBoard™ or Remote Control Panel remote control allows full status and control access locally or across a standard Ethernet network.
Key Features
Supports all popular formats: 480i, 576i, 720p, 1080i, 1080p, 2160p
Two independent SDI-to-HDMI processing paths on a single openGear® cards neatly integrates high capacity in openGear® environments
Each path equipped with frame sync with configurable manual or LOS-detect insertion of frozen frame or selectable-color flat-field. Optional per-path color correction.
Independent HDMI output setup for both HDMI outputs includes colorimetry/color space, bit depth, audio setup/channel count, and HDR user setup/custom settings
Full input and output audio crosspoints, including independent flex mix, stereo downmixers, and audio delay functions
Remote control/monitoring via DashBoard™ software or OGCP-9000 Remote Control Panel
Hot-swappable
Make SAPPHIRE 9927-2StoH into a standalone unit by using 9927-2StoH with our BBG-1300-FR 1RU Enclosure for openGear® Cards standalone enclosure
Five year warranty
Specifications
Note: All specifications are preliminary and subject to change.
Power
37 Watts
Standards Supported
SMPTE 259M, 292M, 424M, 2082-1
(10-bit video processing)
12G/6G/3G/HD/SD-SDI Inputs
(2) 75Ω inputs
HDMI Outputs
(2) HDMI 2.0; Type A (standard) connectors
Frame Sync Audio/Video Delay
Max offset: 20 frames
Latency (min): 1 frame
User Audio Delay Offset from Video
Bulk delay control: -33 msec to +3000 msec.
Per-channel delay controls: -800 msec to +800 msec
Frame Reference Input
(2) reference from frame bus. SMPTE 170M/318M “Black Burst”, SMPTE 274M/296M “Tri-Level”
Note: Per-path frame reference offers independent per-path controls (such as video delay offset). However, all paths must be locked to the same selected reference selection (e.g., frame REF 2 used
for each path).
Diagrams

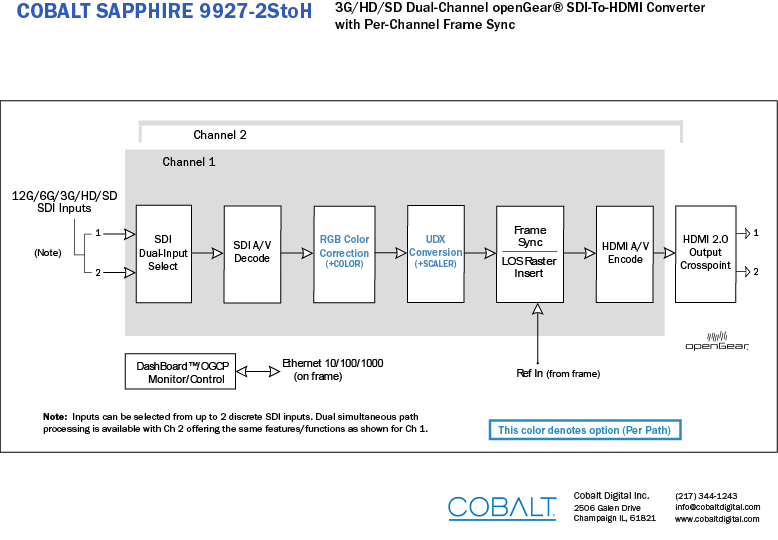

Block Diagram

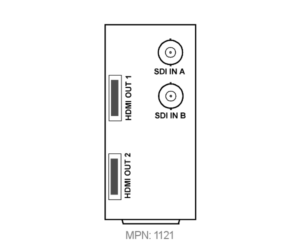

RM20-9927-B
- (2) SDI In
- (2) HDMI Out
Note: Due to the alignment of the 9927-2StoH card and this rear module, the combination of the card and rear module will consume the adjacent even frame slot in addition to the ODD slot occupied by the card.
Note: Mates to card in ODD slot.
