The TOPAZ 9902-2UDX 3G/HD/SD-SDI Dual-Channel Up-Down-Cross Converter/Frame Sync/Audio Embed/De-Embed offers two independent signal paths of up/down/cross conversion, frame sync, and audio embedding /de-embedding in a single openGear® card. Using our HPF-9000 20-slot frame, this provides up to 40 channels of processing in a single frame. The TOPAZ 9902-2UDX represents a new level of openGear packaging density!
The TOPAZ 9902-2UDX provides high-density that offers unprecedented multi-input support and flexibility. Dual independent up/down/cross convert scalers are specifically designed for broadcast video formats, with full ARC control suitable for conversions to or from 4:3 and 16:9 aspect ratios. AFD processing can detect an incoming AFD code and correspondingly set scaling and ARC to track with AFD. This processor also allows independent custom ARC to be applied for each incoming AFD code, and set the desired AFD code to be inserted on the output, even if there is no code detected on the input. Analog video (CVBS) input, with AES and analog audio audio embedding and de-embedding is also supported.
Audio embed adaptive SRC allows asynchronous 48 kHz AES audio to automatically sync with program video 48 kHz timing for glitch-free embedding. Individual, per-pair SRC auto-detects and disables SRC when a Dolby pair is detected on an input pair. Bulk and per-channel audio delay controls easily address lip-sync issues. Quality Check option +QC allows failover to alternate inputs based on user-configurable criteria such as black/frozen frame. Included standard is closed captioning absence/presence detection that allows CEA 608/708 and line 21 SD CC absence or presence to be detected, with event actions consisting of GPO, automated alert email actions, or go-to card user presets or other actions.
A convenient input crosspoint can select from up to four SDI inputs to be applied to either of the unit’s two processing paths. The input crosspoint allows manual or failover to alternate inputs on loss of input conditions. Option +TTS provides high-quality Text-To-Speech synthesis, directly converting EAS text to digital audio speech with no baseband signal breakouts or add-ons. With option +ANC, the TOPAZ 9902-2UDX offers full VANC/HANC ancillary data packet de-embedding and embedding.
Preset save/load allows saving custom settings while allowing one-button revert to factory settings. Layered presets allow invoking changes related only to a specific area of concern (audio routing, for example) while not changing any other processing settings or aspects. Full user DashBoard™ or Remote Control Panel remote control allows full status and control access locally or across a standard Ethernet network. GPIO allows direct input routing control and status monitoring.
The TOPAZ 9902-2UDX is also available in stand-alone form factor BBG-1002-2UDX.
Key Features
Supports all popular formats: 480i, 576i, 720p, 1080i, 1080pSF, 1080p
Multi-input RP168 clean switch, with manual selection or GPI controlled input selection. Path inputs can also be sourced from opposite path output with no external patching.
Auto-Changeover can be set to invoke failover for basic input loss. Quality Check option (+QC) provides alert actions on criteria such as black/frozen frame, audio silence, and closed-captioning absence. Threshold and hold-off are user configurable.
Up/Down/Cross Conversion with user and AFD, VI, and WSS ARC specifically tailored for broadcast video
Frame Sync with full H/V offset and manual/LOS video pattern generator. Pattern generator for each channel can provide raster/test pattern and patterns for LOS failover
Timecode processing can prioritize, filter for, and convert between specific SMPTE embedded-video or audio LTC
Advanced audio processing allows routing, gain, delay, and flexible mixing as standard features
Full audio crosspoint with delay control and 5.1-to-stereo downmix available for all audio outputs
Video options include color correction
CVBS analog video input and analog/AES embed / de-embed with 4-line Adaptive Comb Filter
Pattern generator for each channel can provide raster/test pattern and patterns for LOS failover insertion
Low-power/high-density design – less than 18 Watts per card
Remote control/monitoring via DashBoard™ software or OGCP-9000 Remote Control Panel
Hot-swappable
Five year warranty
Specifications
Note: Inputs/outputs are a function in some cases of rear I/O module used.
Power
< 18 Watts
SDI Input/Outputs
Up to (4) 75Ω BNC inputs
Up to (4) 75Ω BNC outputs (selectable as processed SDI IN or IN RCK).
SDI Formats Supported: SMPTE 259M, SMPTE 292M, SMPTE 424M
SDI Receive Cable Length: 3G/HD/SD: 120/180/320 m (Belden 1694A)
SDI Return Loss: >15 dB up to 1.485 GHz; >10 dB up to 2.970 GHz
SDI Alignment Jitter: 3G/HD/SD: < 0.3/0.2/0.2 UI
Timing Jitter 3G/HD/SD: <2.0/1.0/0.2 UI
Minimum Latency (scaler and framesync disabled):
SD: 127 pixels; 9.4 us
720p: 330 pixels; 4.45 us
1080i: 271 pixels; 3.65 us
1080p: 361 pixels; 2.43 us
CVBS Video Input/Outputs
(1) 75Ω BNC input
(1) 75Ω BNC output. CVBS can be upscaled to any supported SDI format; all SDI formats can be downconverted to CVBS.
Discrete Audio Input/Outputs
(1) AES-3id 75Ω BNC input
(1) AES-3id 75Ω BNC output
(2) Balanced analog audio inputs
(2) Balanced analog audio outputs.
I/O conforms to 0 dBFS = +24 dBu.
Frame Sync Audio/Video Delay
Max offset: 20 frames
Latency (min): 1 frame
Option +DLY Delay (3G/HD/SD): >800 msec / >1580 msec / >9000 msec
ARC
ARC manually configurable (custom) or automatic triggering in full compliance/conformity with AFD (SMPTE 2016), VI (RP186), and WSS triggering. (ARC/AFD settings independent per processing path.)
User Audio Delay Offset from Video
Bulk delay control: -33 msec to +3000 msec.
Per-channel delay controls: -800 msec to +800 msec.
GPIO/COMM
(2) GPI configurable to select input routing. (2) GPO configurable to invoke upon input selected. RS-232/485 comm port. All connections via rear module RJ-45 GPIO/COMM jack.
Frame Reference Input
(2) reference from frame bus. SMPTE 170M/318M “Black Burst”, SMPTE 274M/296M “Tri-Level”
Diagrams

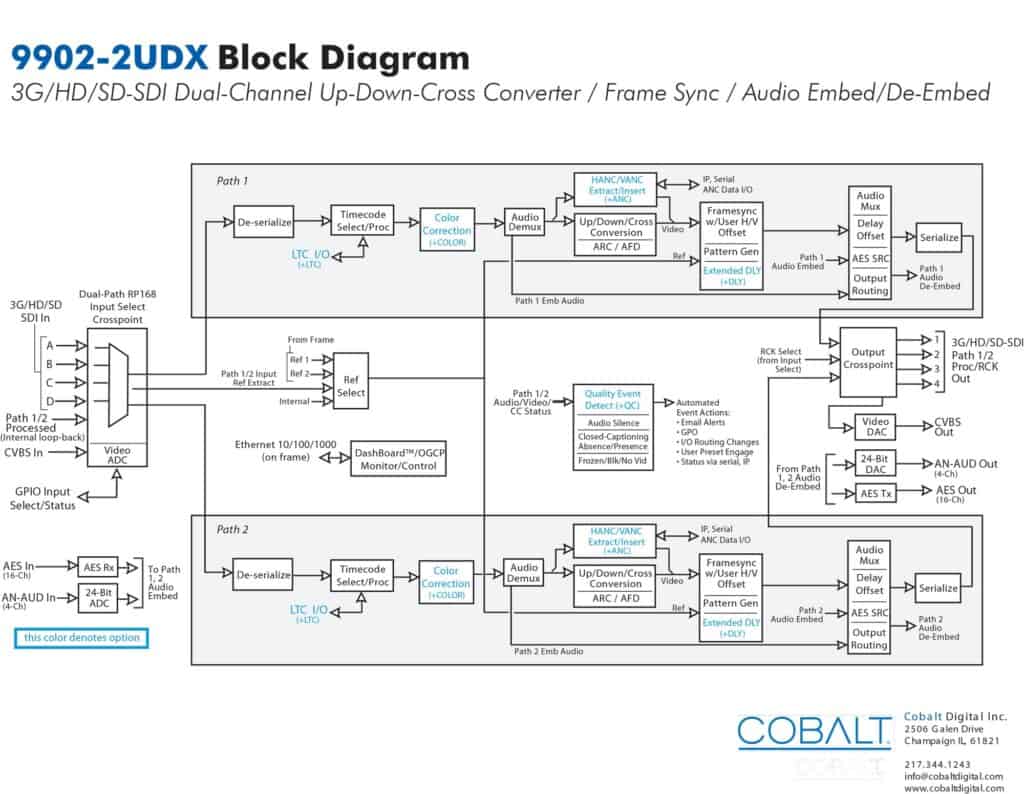

Block Diagram
Some Rear I/O Modules shown below may also be used for other Cobalt card models. This allows you to re-use rear modules from one card model to another. The Manufacturing Part Number (MPN) shown in the images below is the common code that is used to identify multi-use rear modules. Cross-compatibility can be checked using this number and About Cobalt Rear I/O Modules and Rear Module Cross-Reference at Reference and Help Documents.

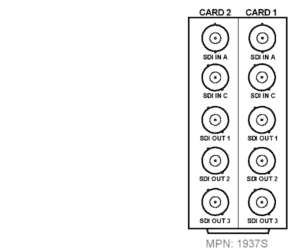

RM20-9902-2UDX-A/S
(Dual-card (split) rear module; connections are per card)
- (2) SDI In
- (3) SDI Out
(All coaxial connectors BNC)

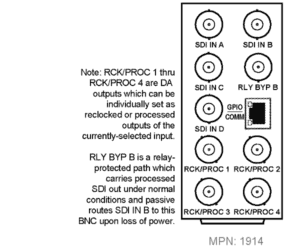

RM20-9902-2UDX-C
- (4) SDI In (selectable manually or as failover)
- GPIO/COMM port (RJ-45)
- (4) SDI Out (each selectable as processed out or input RCK)
- (1) Relay protected SDI Out (proc or SDI IN B on loss of power)
(All coaxial connectors BNC)

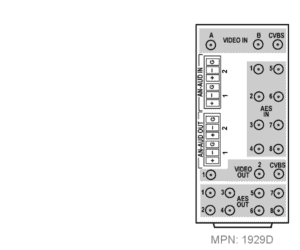

RM20-9902-2UDX-D-DIN
- (2) SDI In (selectable manually or as failover)
- (1) CVBS In
- (8) AES In
- (2) Balanced Analog Audio In
- (2) SDI Out (each selectable as processed out or input RCK)
- (1) CVBS Out
- (8) AES Out
- (2) Balanced Analog Audio Out
(All coaxial connectors DIN1.0/2.3)
RM20-9902-2UDX-D-HDBNC
- (2) SDI In (selectable manually or as failover)
- (1) CVBS In
- (8) AES In
- (2) Balanced Analog Audio In
- (2) SDI Out (each selectable as processed out or input RCK)
- (1) CVBS Out
- (8) AES Out
- (2) Balanced Analog Audio Out
(All coaxial connectors HDBNC)

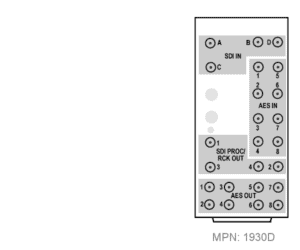

RM20-9902-2UDX-E-DIN
- (4) SDI In
- (8) AES In
- (4) SDI Out (each selectable as processed out or input RCK)
- (8) AES Out
(All coaxial connectors DIN1.0/2.3)
RM20-9902-2UDX-E-HDBNC
- (4) SDI In
- (8) AES In
- (4) SDI Out (each selectable as processed out or input RCK)
- (8) AES Out
(All coaxial connectors HDBNC)
RM20-9902-2UDX-F
- (2) SDI In
- (1) SDI Out with Relay Failover Protect
- (3) SDI Out (selectable as Proc out or RCK)
- (2) GPI
- (2) GPO
(All coaxial connectors BNC)

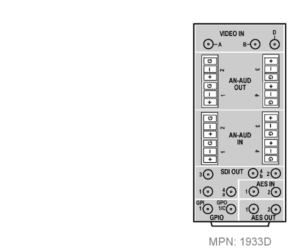

RM20-9902-2UDX-H-DIN
- (3) SDI In (selectable manually or as failover)
- (2) AES In
- (4) Balanced Analog Audio In
- (5) SDI Out (each selectable as processed out or input RCK; 2x copy of SDI output 4)
- (2) AES Out
- (4) Balanced Analog Audio Out
- (1) GPI/6 Hz (coaxial)
- (1) GPO w/ isolated return; coaxial)
(All coaxial connectors DIN1.0/2.3)
RM20-9902-2UDX-H-HDBNC
- (3) SDI In (selectable manually or as failover)
- (2) AES In
- (4) Balanced Analog Audio In
- (5) SDI Out (each selectable as processed out or input RCK; 2x copy of SDI output 4)
- (2) AES Out
- (4) Balanced Analog Audio Out
- (1) GPI/6 Hz (coaxial)
- (1) GPO w/ isolated return; coaxial)
(All coaxial connectors HDBNC)

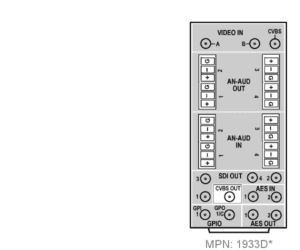

RM20-9902-2UDX-J-DIN
- (2) SDI In (selectable manually or as failover)
- (1) CVBS In
- (2) AES In
- (4) Balanced Analog Audio In
- (4) SDI Out (each selectable as processed out or input RCK)
- (1) CVBS Out
- (2) AES Out
- (4) Balanced Analog Audio Out
- (1) GPI/6 Hz (coaxial)
- (1) GPO w/ isolated return; coaxial)
(All coaxial connectors DIN1.0/2.3)
RM20-9902-2UDX-J-HDBNC
- (2) SDI In (selectable manually or as failover)
- (1) CVBS In
- (2) AES In
- (4) Balanced Analog Audio In
- (4) SDI Out (each selectable as processed out or input RCK)
- (1) CVBS Out
- (2) AES Out
- (4) Balanced Analog Audio Out
- (1) GPI/6 Hz (coaxial)
- (1) GPO w/ isolated return; coaxial)
(All coaxial connectors HDBNC)
RM20-9902-2UDX-K-DIN
- (4) SDI In
- (6) AES In
- (2) Balanced Analog Audio In
- (4) SDI Out (one output with relay bypass)
- (4) AES Out
- GPIO/COMM port (combined RJ-45)
(All coaxial connectors DIN1.0/2.3)

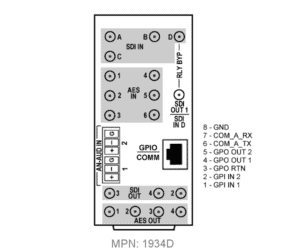

RM20-9902-2UDX-K-HDBNC
- (4) SDI In
- (6) AES In
- (2) Balanced Analog Audio In
- (4) SDI Out (one output with relay bypass)
- (4) AES Out
- GPIO/COMM port (combined RJ-45)
(All coaxial connectors HDBNC)

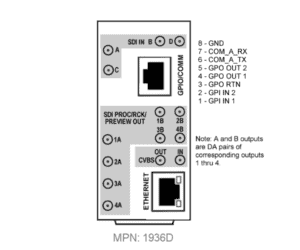

RM20-9902-2UDX-L-DIN
- (4) SDI In
- CVBS In
- (8) SDI Out (1×2 DA output of each crosspoint output)
- CVBS Out
- COMM/GPIO port (RJ-45)
- 100/1000 BaseT Ethernet Control Port
(All coaxial connectors DIN1.0/2.3)
RM20-9902-2UDX-L-HDBNC
- (4) SDI In
- CVBS In
- (8) SDI Out (1×2 DA output of each crosspoint output)
- CVBS Out
- COMM/GPIO port (RJ-45)
- 100/1000 BaseT Ethernet Control Port
(All coaxial connectors HDBNC)

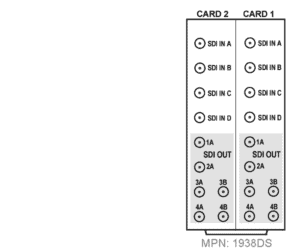

RM20-9902-2UDX-M/S-DIN
(Dual-card (split) rear module; connections are per card)
- (4) SDI In
- (6) SDI Out
(All coaxial connectors DIN1.0/2.3)
RM20-9902-2UDX-M/S-HDBNC
(Dual-card (split) rear module; connections are per card)
- (4) SDI In
- (6) SDI Out
(All coaxial connectors HDBNC)

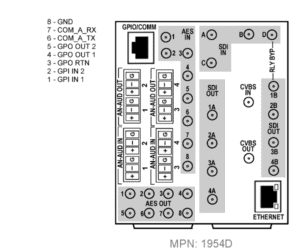

RM20-9902-2UDX-N-DIN
- (4) SDI In
- (1) CVBS Analog Video In
- (4) Balanced Analog Audio In
- (8) AES In
- (8) SDI Out (1 with relay bypass protect)
- (1) CVBS Analog Video Out
- (4) Balanced Analog Audio Out
- (8) AES Out
- (1) GPIO/COMM (Combined RJ-45 connector)
- 100/1000 BaseT Ethernet Port
(All coaxial connectors DIN1.0/2.3)
RM20-9902-2UDX-N-HDBNC
- (4) SDI In
- (1) CVBS Analog Video In
- (4) Balanced Analog Audio In
- (8) AES In
- (8) SDI Out (1 with relay bypass protect)
- (1) CVBS Analog Video Out
- (4) Balanced Analog Audio Out
- (8) AES Out
- (1) GPIO/COMM (Combined RJ-45 connector)
- 100/1000 BaseT Ethernet Port
(All coaxial connectors HDBNC)
RM20-9902-2UDX-P-DIN
- (4) SDI In (2 with independent relay bypass)
- (8) SDI Out (1×2 DA output of each crosspoint output)
- COMM/GPIO port (RJ-45)
- 100/1000 BaseT Ethernet Control Port
(All coaxial connectors DIN1.0/2.3)

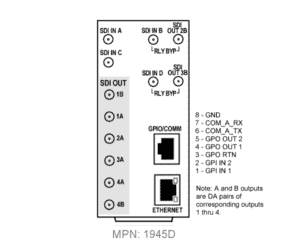

RM20-9902-2UDX-P-HDBNC
- (4) SDI In (2 with independent relay bypass)
- (8) SDI Out (1×2 DA output of each crosspoint output)
- COMM/GPIO port (RJ-45)
- 100/1000 BaseT Ethernet Control Port
(All coaxial connectors HDBNC)
