The Cobalt® TOPAZ 9902-2UDX-DI 3G/HD/SD-SDI Dual-Channel De-interlacing Up-Down-Cross-Converter / Frame Sync offers two independent signal paths of up/down/cross conversion (including independent per-path de-interlacing) and frame sync in a single openGear® card. Using our HPF-9000 20-slot frame, this provides up to 40 channels of processing in a single frame. The TOPAZ 9902-2UDX-DI represents a new level of openGear packaging density!
The TOPAZ 9902-2UDX-DI provides high-density that offers unprecedented multi-input support and flexibility. Dual independent up/down/cross convert scalers are specifically designed for broadcast video formats, with full ARC control suitable for conversions to or from 4:3 and 16:9 aspect ratios. AFD processing can detect an incoming AFD code and correspondingly set scaling and ARC to track with AFD. This processor also allows independent custom ARC to be applied for each incoming AFD code, and set the desired AFD code to be inserted on the output, even if there is no code detected on the input. Bulk and per-channel audio delay controls easily address lip-sync issues.
A convenient input crosspoint can select from up to four SDI inputs to be applied to either of the unit’s two processing paths. The input crosspoint allows manual or failover to alternate inputs on loss of input conditions. With option +ANC, the TOPAZ 9902-2UDX-DI offers full VANC/HANC ancillary data packet de-embedding and embedding.
Preset save/load allows saving custom settings while allowing one-button revert to factory settings. Layered presets allow invoking changes related only to a specific area of concern (audio routing, for example) while not changing any other processing settings or aspects. Full user DashBoard™ or Remote Control Panel remote control allows full status and control access locally or across a standard Ethernet network. GPIO allows direct input routing control and status monitoring.
The TOPAZ 9902-2UDX-DI is also available in stand-alone form factor BBG-1002-2UDX-DI.
Key Features
Supports all popular formats: 480i, 576i, 720p, 1080i, 1080pSF, 1080p
Independent Up/Down/Cross Conversion with independent de-interlacing for each path
Auto-Changeover can be set to invoke failover for basic input loss
Multi-input RP168 clean switch, with manual selection or GPI controlled input selection. Path inputs can also be sourced from opposite path output with no external patching.
Frame Sync with full H/V offset and manual/LOS video pattern generator. Pattern generator for each channel can provide raster/test pattern and patterns for LOS failover
Timecode processing can prioritize, filter for, and convert between specific SMPTE embedded-video or audio LTC
Advanced audio processing allows routing, gain, delay, and flexible mixing as standard features
Full audio crosspoint with delay control and 5.1-to-stereo downmix available for all audio outputs
Video options include color correction
Pattern generator for each channel can provide raster/test pattern and patterns for LOS failover insertion
Low-power/high-density design – less than 18 Watts per card
Remote control/monitoring via DashBoard™ software or OGCP-9000 Remote Control Panel
Hot-swappable
Five year warranty
Specifications
Note: Inputs/outputs are a function in some cases of rear I/O module used.
Power
< 18 Watts
SDI Input/Outputs
Up to (4) 75Ω BNC inputs
Up to (4) 75Ω BNC outputs (selectable as processed SDI IN or IN RCK).
SDI Formats Supported: SMPTE 259M, SMPTE 292M, SMPTE 424M
SDI Receive Cable Length: 3G/HD/SD: 120/180/320 m (Belden 1694A)
SDI Return Loss: >15 dB up to 1.485 GHz; >10 dB up to 2.970 GHz
SDI Alignment Jitter: 3G/HD/SD: < 0.3/0.2/0.2 UI
Timing Jitter 3G/HD/SD: <2.0/1.0/0.2 UI
Minimum Latency (scaler and framesync disabled):
SD: 127 pixels; 9.4 us
720p: 330 pixels; 4.45 us
1080i: 271 pixels; 3.65 us
1080p: 361 pixels; 2.43 us
Frame Sync Audio/Video Delay
Max offset: 20 frames
Latency (min): 1 frame
Option +DLY Delay (3G/HD/SD): >800 msec / >1580 msec / >9000 msec
User Audio Delay Offset from Video
Bulk delay control: -33 msec to +3000 msec.
Per-channel delay controls: -800 msec to +800 msec.
GPIO/COMM
(2) GPI configurable to select input routing. (2) GPO configurable to invoke upon input selected. RS-232/485 comm port. All connections via rear module RJ-45 GPIO/COMM jack.
Frame Reference Input
(2) reference from frame bus. SMPTE 170M/318M “Black Burst”, SMPTE 274M/296M “Tri-Level”
Diagrams

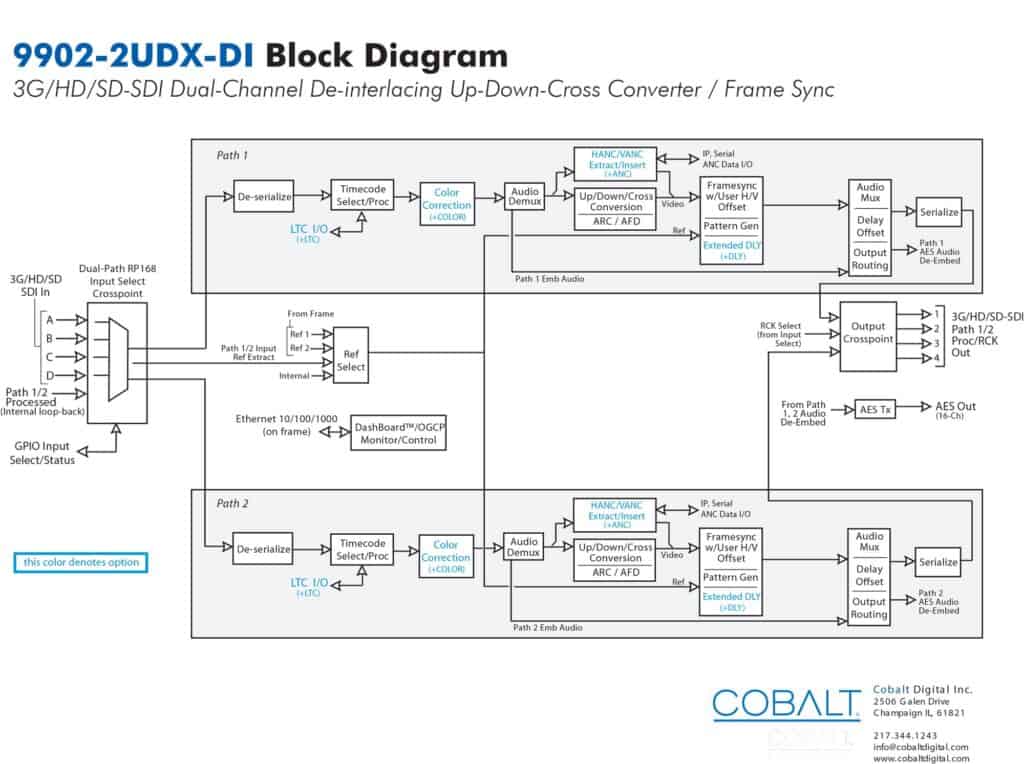

Block Diagram
RM20-9902-2UDX-A/S
(Dual-card (split) rear module; connections are per card)
- (2) SDI In
- (3) SDI Out
(All coaxial connectors BNC)
RM20-9902-2UDX-C
- (4) SDI In (selectable manually or as failover)
- GPIO/COMM port (RJ-45)
- (4) SDI Out (each selectable as processed out or input RCK)
- (1) Relay protected SDI Out (proc or SDI IN B on loss of power)
(All coaxial connectors BNC)
RM20-9902-2UDX-E-DIN
- (4) SDI In
- (8) AES In
- (4) SDI Out (each selectable as processed out or input RCK)
- (8) AES Out
(All coaxial connectors DIN1.0/2.3)
RM20-9902-2UDX-E-HDBNC
- (4) SDI In
- (8) AES In
- (4) SDI Out (each selectable as processed out or input RCK)
- (8) AES Out
(All coaxial connectors HDBNC)
RM20-9902-2UDX-F
- (2) SDI In
- (1) SDI Out with Relay Failover Protect
- (3) SDI Out (selectable as Proc out or RCK)
- (2) GPI
- (2) GPO
(All coaxial connectors BNC)
RM20-9902-2UDX-H-DIN
- (3) SDI In (selectable manually or as failover)
- (2) AES In
- (4) Balanced Analog Audio In
- (5) SDI Out (each selectable as processed out or input RCK; 2x copy of SDI output 4)
- (2) AES Out
- (4) Balanced Analog Audio Out
- (1) GPI/6 Hz (coaxial)
- (1) GPO w/ isolated return; coaxial)
(All coaxial connectors DIN1.0/2.3)
RM20-9902-2UDX-H-HDBNC
- (3) SDI In (selectable manually or as failover)
- (2) AES In
- (4) Balanced Analog Audio In
- (5) SDI Out (each selectable as processed out or input RCK; 2x copy of SDI output 4)
- (2) AES Out
- (4) Balanced Analog Audio Out
- (1) GPI/6 Hz (coaxial)
- (1) GPO w/ isolated return; coaxial)
(All coaxial connectors HDBNC)
RM20-9902-2UDX-K-DIN
- (4) SDI In
- (6) AES In
- (2) Balanced Analog Audio In
- (4) SDI Out (one output with relay bypass)
- (4) AES Out
- GPIO/COMM port (combined RJ-45)
(All coaxial connectors DIN1.0/2.3)
RM20-9902-2UDX-K-HDBNC
- (4) SDI In
- (6) AES In
- (2) Balanced Analog Audio In
- (4) SDI Out (one output with relay bypass)
- (4) AES Out
- GPIO/COMM port (combined RJ-45)
(All coaxial connectors HDBNC)
RM20-9902-2UDX-L-DIN
- (4) SDI In
- CVBS In
- (8) SDI Out (1×2 DA output of each crosspoint output)
- CVBS Out
- COMM/GPIO port (RJ-45)
- 100/1000 BaseT Ethernet Control Port
(All coaxial connectors DIN1.0/2.3)
RM20-9902-2UDX-L-HDBNC
- (4) SDI In
- CVBS In
- (8) SDI Out (1×2 DA output of each crosspoint output)
- CVBS Out
- COMM/GPIO port (RJ-45)
- 100/1000 BaseT Ethernet Control Port
(All coaxial connectors HDBNC)
RM20-9902-2UDX-M/S-DIN
(Dual-card (split) rear module; connections are per card)
- (4) SDI In
- (6) SDI Out
(All coaxial connectors DIN1.0/2.3)
RM20-9902-2UDX-M/S-HDBNC
(Dual-card (split) rear module; connections are per card)
- (4) SDI In
- (6) SDI Out
(All coaxial connectors HDBNC)
RM20-9902-2UDX-N-DIN
- (4) SDI In
- (1) CVBS Analog Video In
- (4) Balanced Analog Audio In
- (8) AES In
- (8) SDI Out (1 with relay bypass protect)
- (1) CVBS Analog Video Out
- (4) Balanced Analog Audio Out
- (8) AES Out
- (1) GPIO/COMM (Combined RJ-45 connector)
- 100/1000 BaseT Ethernet Port
(All coaxial connectors DIN1.0/2.3)
RM20-9902-2UDX-N-HDBNC
- (4) SDI In
- (1) CVBS Analog Video In
- (4) Balanced Analog Audio In
- (8) AES In
- (8) SDI Out (1 with relay bypass protect)
- (1) CVBS Analog Video Out
- (4) Balanced Analog Audio Out
- (8) AES Out
- (1) GPIO/COMM (Combined RJ-45 connector)
- 100/1000 BaseT Ethernet Port
(All coaxial connectors HDBNC)
RM20-9902-2UDX-P-DIN
- (4) SDI In (2 with independent relay bypass)
- (8) SDI Out (1×2 DA output of each crosspoint output)
- COMM/GPIO port (RJ-45)
- 100/1000 BaseT Ethernet Control Port
(All coaxial connectors DIN1.0/2.3)
RM20-9902-2UDX-P-HDBNC
- (4) SDI In (2 with independent relay bypass)
- (8) SDI Out (1×2 DA output of each crosspoint output)
- COMM/GPIO port (RJ-45)
- 100/1000 BaseT Ethernet Control Port
(All coaxial connectors HDBNC)
Some Rear I/O Modules shown below may also be used for other Cobalt card models. This allows you to re-use rear modules from one card model to another. The Manufacturing Part Number (MPN) shown in the images below is the common code that is used to identify multi-use rear modules. Cross-compatibility can be checked using this number and About Cobalt Rear I/O Modules and Rear Module Cross-Reference at Reference and Help Documents.
Note: Some Rear I/O Modules shown below are equipped with connectors for signals not supported by this card (such as multi-wire balanced audio connections, CVBS I/O, and AES IN). These Rear I/O Modules can be used with the card, however these connections are N/C when used with this card.
