The Cobalt® TOPAZ 9903-UDX-ADDA 3G/HD/SD-SDI Universal Format Converter with CVBS/YPbPr Video I/O, Up/Down/Cross Conversion, Frame Sync, AES and Analog Audio Embedding / De-Embedding provides a high-density card-based solution that offers unprecedented multi-input support, flexibility, and ease of use and integration for SDI and analog video and discrete audio. Frame sync provides glitch-free audio upon framesync events, with video/audio offsets user configurable. Audio embed adaptive SRC allows asynchronous 48 kHz AES audio to automatically sync with program video 48 kHz timing for glitch-free embedding. Individual, per-pair SRC auto-detects and disables SRC when a Dolby pair is detected on an input pair.
With option +ANC, the TOPAZ 9903-UDX-ADDA offers full VANC/HANC ancillary data packet de-embedding and embedding for 3G/HD/SD-SDI streams. The easy to use interface allows direct access to DID and SDID locations to extract or insert user data such as camera PTZ, SCTE 104, closed-captioning read/insert, GPI/GPO via ANC, or other specialized user payloads. Data can be extracted and inserted within the card, bypassing the scaler (Bridge mode), or inserted and/or extracted to and from external interface via serial or IP interfaces.
Multiple SDI input ports allow selection from multiple input sources with failover. Both CVBS and component analog video is supported both as inputs and outputs.
The up/down/cross convert scaler is specifically designed for broadcast video formats, with full ARC control suitable for conversions to or from 4:3 and 16:9 aspect ratios. Timecode can be received and prioritized among any standard SMPTE embedded or audio LTC timecode.
Preset save/load allows saving custom card settings while allowing one-button revert to factory settings. Layered presets allow invoking changes related only to a specific area of concern (audio routing, for example) while not changing any other processing settings or aspects. Full user DashBoard™ or Remote Control Panel remote control allows full status and control access locally or across a standard Ethernet network. GPIO allows direct input routing control and status monitoring.
The TOPAZ 9903-UDX-ADDA is also available in stand-alone form factor BBG-1003-UDX-ADDA.
Key Features
Supports all popular formats: 480i, 576i, 720p, 1080i, 1080pSF, 1080p
Multi-input, with failover switching
Universal I/O support – analog CVBS and component inputs and outputs, as well as analog and AES audio embed/de-embed. 10-bit processing with 5-line adaptive comb filtered SD Y/C separation.
Frame Sync with full H/V offset and manual/LOS video pattern generator
Up/Down/Cross Conversion with user and AFD, VI, and WSS ARC specifically tailored for broadcast video
Timecode processing can prioritize, filter for, and convert between specific SMPTE embedded-video or audio LTC
Full audio crosspoint with delay control and 5.1-to-stereo downmix available for all audio outputs
Option +ANC adds full user VANC/HANC packet insertion/extraction access to DID/SDID ancillary data such as camera PTZ, SCTE 104, closed captioning, and other specialized user payloads. Multi-mode setup includes Bridge mode (card internal path with scaler bypass bridging) or Insert/Extract modes for insert/extract to or from IP/serial external interfaces.
Available color correction option
Low-power/high-density design – less than 13 Watts per card
Remote control/monitoring via DashBoard™ software or OGCP-9000 Remote Control Panel
Hot-swappable
Five year warranty
Specifications
Power
< 13 Watts
SDI Input/Outputs
Up to (2) 75Ω BNC inputs
Up to (4) 75Ω BNC outputs
SDI Formats Supported: SMPTE 259M, SMPTE 292M, SMPTE 424M
SDI Receive Cable Length: 3G/HD/SD: 120/180/320 m (Belden 1694A)
SDI Return Loss: >15 dB up to 1.485 GHz; >10 dB up to 2.970 GHz
SDI Alignment Jitter: 3G/HD/SD: < 0.3/0.2/0.2 UI
Timing Jitter: 3G/HD/SD: < 2.0/1.0/0.2 UI
Note: SDI Return loss and receive cable length are affected by rear I/O module used. Specifications represent typical performance.
Analog Video Input/Outputs
(1) 75Ω BNC CVBS input
(1) 75Ω BNC CVBS output. CVBS can be upscaled to any supported SDI format; all SDI formats can be downconverted to CVBS.
(3) 75Ω BNC Component Video inputs (Y, Cb, Cr)
(3) 75Ω BNC Component Video outputs (Y, Cb, Cr)
ADC resolution: 10-bit
Sampling frequency: 54 MHz (4x over-sampling SD)
SD Y/C separation: 5-line Adaptive Comb Filter
SD Freq. Response: ± 0.25 dB to 5.5 MHz
SD SNR: > 55 dB to 5.5 MHz (unweighted)
Differential Phase: < 1 degree
Differential Gain: < 1%
Nonlinearity < 1%
HD Freq. Response: Y 30 MHz., PbPr 15 MHz
HD SNR: > 55 dB to 30 MHz (unweighted)
Discrete Audio Input/Outputs
(8) AES-3id 75Ω BNC input
(8) AES-3id 75Ω BNC output
(2) Balanced analog audio inputs
(2) Balanced analog audio outputs
I/O conforms to 0 dBFS = +24 dBu
Analog Input Impedance: >10 kΩ
Analog Reference Level: -20 dBFS
Analog Nominal Level: +4 dBu
Analog Input Clip Level: +24 dBu (0 dBFS)
Analog Freq. Response: ±0.2 dB (20 Hz to 20 kHz)
Analog SNR: 115 dB (A weighted)
Analog THD+N: -96 dB (20 Hz to 10 kHz)
Analog Crosstalk: -106 dB (20 Hz to 20 kHz)
ARC
ARC manually configurable (custom) or automatic triggering in full compliance/conformity with AFD (SMPTE 2016), VI (RP186), and WSS triggering.
GPIO/COMM
(2) GPI configurable to select input routing. (2) GPO configurable to invoke upon input selected. RS-232/485 comm port. All connections via rear module RJ-45 GPIO/COMM jack.
Frame Reference Input
(2) reference from frame bus. SMPTE 170M/318M “Black Burst”, SMPTE 274M/296M “Tri-Level”.
Return Loss: >35 dB up to 5.75 MHz
Diagrams

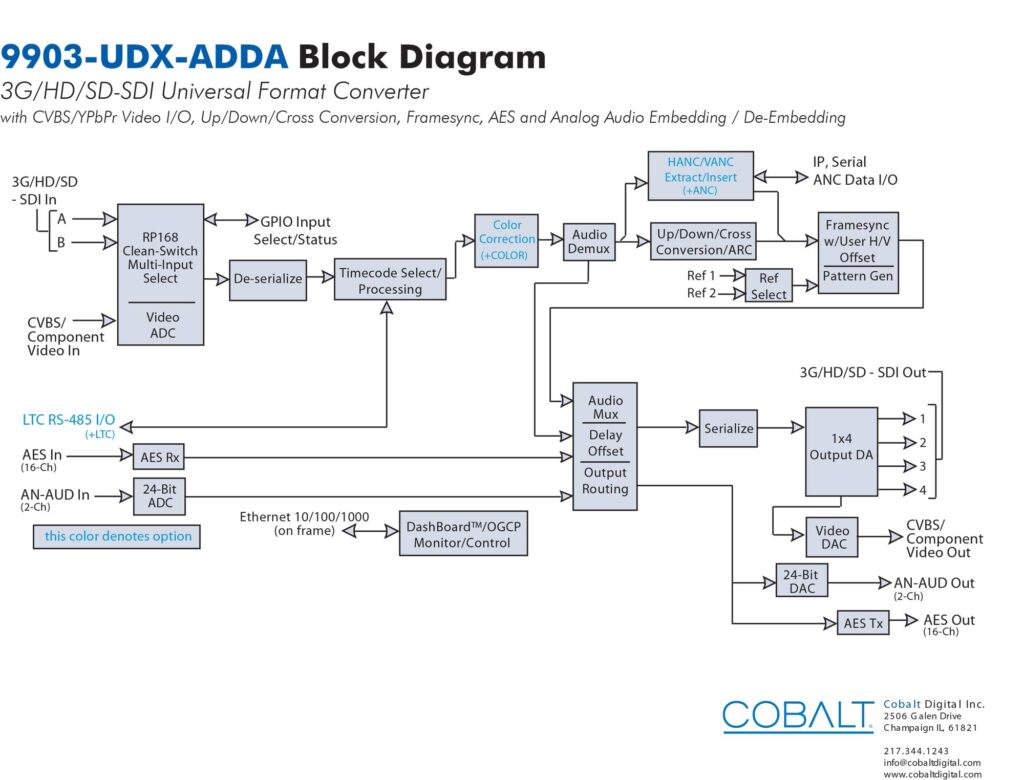

Block Diagram

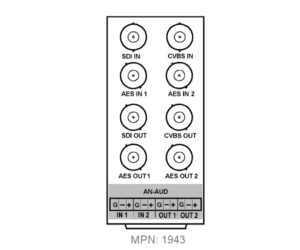

RM20-9903-B
- SDI In
- CVBS Analog Video In
- (2) AES In
- (2) Balanced Analog Audio In
- (1) SDI Out
- (1) CVBS Analog Video Out
- (2) AES Out
- (2) Balanced Analog Audio Out
(All coaxial connectors BNC)

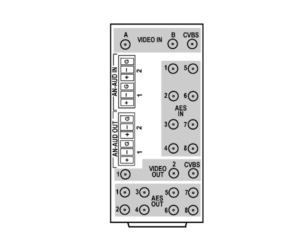

RM20-9903-D-DIN
- (2) SDI In
- (1) CVBS Analog Video In
- (8) AES In
- (2) Balanced Analog Audio In
- (2) SDI Out
- (1) CVBS Analog Video Out
- (8) AES Out
- (2) Balanced Analog Audio Out
(All coaxial connectors DIN 1.0/2.3)
RM20-9903-D-HDBNC
- (2) SDI In
- (1) CVBS Analog Video In
- (8) AES In
- (2) Balanced Analog Audio In
- (2) SDI Out
- (1) CVBS Analog Video Out
- (8) AES Out
- (2) Balanced Analog Audio Out
(All coaxial connectors HDBNC)

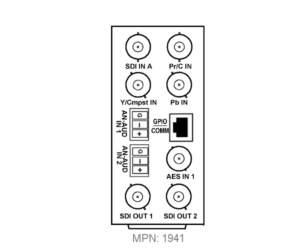

RM20-9903-E
- (1) SDI In
- (1) CVBS/Component Analog Video In
- (2) Balanced Analog Audio In
- (1) AES In
- (2) SDI Out
- (1) GPIO/COMM (Combined RJ-45 connector)
(All coaxial connectors BNC)

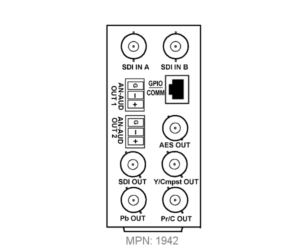

RM20-9903-F
- (2) SDI In
- (2) Balanced Analog Audio Out
- (1) AES Out
- (1) CVBS/Component Analog Video Out
- (1) SDI Out
- (1) GPIO/COMM (Combined RJ-45 connector)
(All coaxial connectors BNC)

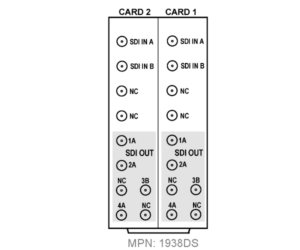

RM20-9903-G/S-DIN
(Dual-card (split) rear module; connections are per card)
- (2) SDI In
- (4) SDI Out
(All coaxial connectors DIN1.0/2.3)
RM20-9903-G/S-HDBNC
(Dual-card (split) rear module; connections are per card)
- (2) SDI In
- (4) SDI Out
(All coaxial connectors HDBNC)

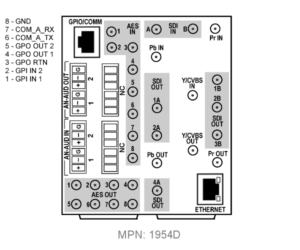

RM20-9903-H-DIN
- (2) SDI In
- (1) CVBS/Component Analog Video In
- (2) Balanced Analog Audio In
- (8) AES In
- (6) SDI Out
- (1) CVBS/Component Analog Video Out
- (2) Balanced Analog Audio Out
- (8) AES Out
- (1) GPIO/COMM (Combined RJ-45 connector)
- 100/1000 BaseT Ethernet Port
(All coaxial connectors DIN1.0/2.3)
RM20-9903-H-HDBNC
- (2) SDI In
- (1) CVBS/Component Analog Video In
- (2) Balanced Analog Audio In
- (8) AES In
- (6) SDI Out
- (1) CVBS/Component Analog Video Out
- (2) Balanced Analog Audio Out
- (8) AES Out
- (1) GPIO/COMM (Combined RJ-45 connector)
- 100/1000 BaseT Ethernet Port
(All coaxial connectors HDBNC)
