The Cobalt® Multi-Path TOPAZ 9905-MPx 3G/HD/SD Quad-Path Up/Down/Cross Converter/Frame Sync/Embed/De-Embed Audio Processor is a Cobalt® next-generation advanced scaler/frame synchronizer for the openGear® platform. The TOPAZ 9905-MPx provides four independent signal paths of UDX / frame sync / audio embedding and de-embedding on a single open-Gear® card. Using our high-powered 20-slot frames, this provides up to 24 channels (6 cards) of processing in a single frame. The TOPAZ 9905-MPx represents a new level of openGear packaging density!
The TOPAZ 9905-MPx provides high-density that offers unprecedented multi-input support and flexibility. Independent up/down/cross convert scalers are specifically designed for broadcast video formats, with full ARC control suitable for conversions to or from 4:3 and 16:9 aspect ratios. Discrete AES and MADI audio embedding/routing/mixing/de-embedding to any of four processing paths is supported. Standard 3D LUT feature and available color correction provide accommodation of SDR and HDR processing for downstream HDR systems.
Card control/monitoring is available via DashBoard user interface or Cobalt’s RESTful-based Reflex protocol. The TOPAZ 9905-MPx can be software-converted to a 4K Quad-Link Input SDM/2SI 4K UDX/Frame Sync card with an option software license.
Key Features
Multi-Path design offers four independent UDX / frame sync paths (channels) per card
Flexible AES and MADI embed/de-embed for each path
Multi-input RP168 clean switch, with manual selection or GPI controlled input selection
Up/Down/Cross Conversion with user ARC control. 3D-LUT is standard feature for all paths.
Supports all popular formats: 480i, 576i, 720p, 1080i, 1080PsF, 1080p
Independent four-path ANC bridging, including closed-captioning processing
Noise Reduction and Detail Enhancement provide image quality optimization
Remote control/monitoring via Dashboard™ software, OGCP-9000 remote control panels or Cobalt’s RESTful-based Reflex protocol
Five year warranty
Specifications
Note: All specifications are preliminary and subject to change.
3G/HD/SD-SDI Input/Outputs
(4) 75Ω inputs (max); (4) inputs can be simultaneously routed to the four UDX/FS paths.
(2×4) 75Ω outputs (max)
SDI Formats Supported: SMPTE 424M, 292M, SMPTE 259M
525i 59.94 1920×1080р 29.97
625i 50 1920x1080p 30
1280x720p 23.98
1280x720p 24
1280x720p 25
1280×720p 29.97
1280x720p 30
1280×720р 50
1280×720р 59.94
1280x720p 60
1920×1080i 50
1920×1080 59.94
1920×1080i 60
1920х1080р 23.98
1920×1080р 24
1920х1080р 25
1920x1080pst 23.98
1920x1080psf 24
1920x1080psf 25
1920x1080psf 29.97
1920x1080psf 30
1920x1080p 50 A
1920x1080p 59.94 A
1920x1080p 60 A
2048х1080р 23.98
2048x1080p 24
2048x1080p 25
2048x1080p 50 A
2048×1080p 59.94 А
2048x1080p 60 A
Return Loss:
> 15 dB up to 1.485 GHz
> 10 dB up to 3 GHz
Input Cable Length:
120m Belden 1694A cable at 2.97 Gbps
240m Belden 1694A cable at 1.485 Gbps
400m Belden 1694A cable at 270 Mbps
Output Signal Level: 800 mV ±10%
DC Offset: 0 V ± 50 mV
Alignment Jitter (3G/HD/SD): < 0.3/0.2/0.2 UI
Frame Sync Audio/VIdeo Delay
Max offset: 20 frames
Latency (min): 1 frame
User Audio Delay Offset from Video
Bulk delay control: -33 msec to +3000 msec.
Per-channel delay controls: -800 msec to +800 msec
AES Audio Inputs/Outputs
(8) AES-3id 75Ω coaxial ports (max); port direction assignable as inputs or outputs in groups of 4 ports.
MADI Audio Inputs/Outputs
(2) 75Ω coaxial ports (max)
Note: Not all rear modules support full MADI I/O. MADI I/O is a function of Rear Module Used. See Rear Module illustrations for specific information.
MPx-DANTE-64×64 Audio Inputs/Outputs
(64) Input Channels
(64) Output Channels
Note: This is an optional feature.
HDMI Output
HDMI 2.0 Output; type A standard connector
GPIO
6 GPI (max); 2 GPO (max)
Note: GPIO max capacity is a function of Rear Module used. See Rear Module Options tab for specific information.
Frame Reference Input
(2) reference from frame bus. SMPTE 170M/318M “Black Burst”, SMPTE 274M/296M “Tri-Level”
Frame Loading (Max. recommended number of 9905 cards supported per Frame Model)
- OG3 Frame: (5) cards
- HPF-9000 Frame: (5) cards
- HPF-9500 Frame: (5) cards
- oGx Frame: (7) cards
- HPF-MAX Frame: (10) cards
Note: Excluding the HPF-MAX, it is recommended to leave a 1RU gap above the frame and set frame Network Controller Card to run the frame cooling fans at full (max.) speed.
Diagrams

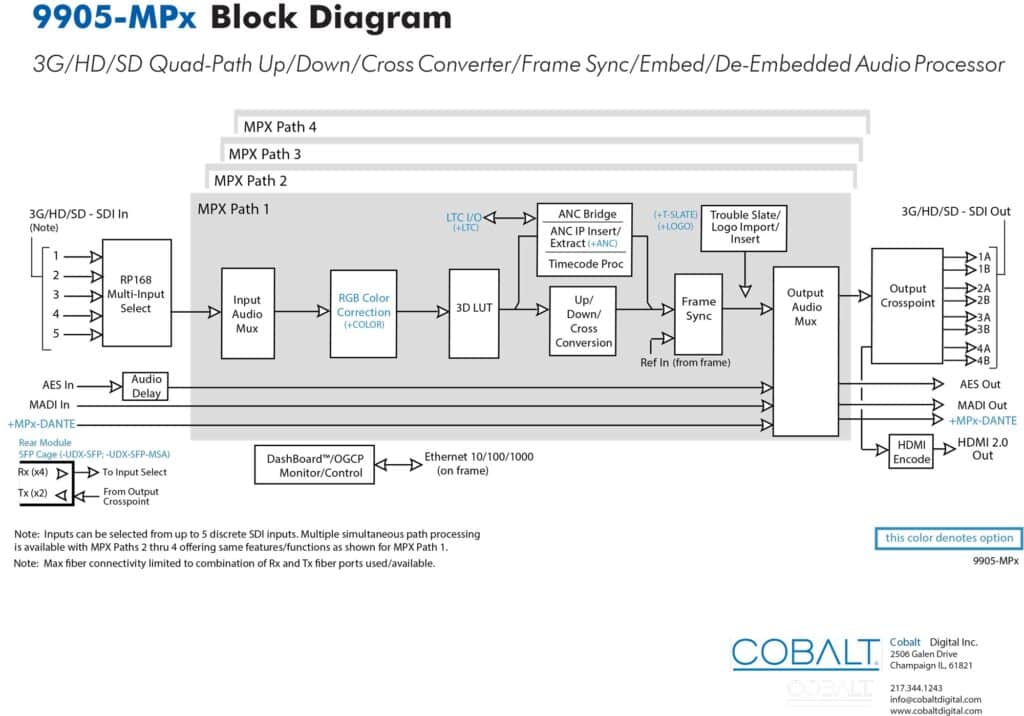

Block Diagram
Note:
- Rear modules with SFP access do not come standard with any SFP functionality. Appropriate SFP
option must be provisioned for rear module SFP functionality.
- SFP port-type availability depends upon SFP Type, rear IO module, and 9904-UDX host card rev
as follows:
- Option -UDX-SFP (non-MSA); Card Rev E and earlier with -C, -F, -G rear IO module:
- Top SFP port supports up to 2 Fiber inputs and up to 2 Fiber outputs.
- Bottom SFP port supports up to 2 Fiber inputs.
- Top SFP port supports up to 2 Fiber inputs and up to 2 Fiber outputs.
- Option -UDX-SFP (non-MSA); Card Rev F and later with -C, -F, -G rear IO module:
- Top SFP port supports up to 2 Fiber inputs and up to 2 Fiber outputs.
- Bottom SFP port supports up to 2 Fiber inputs and up to 2 Fiber outputs.
- Top SFP port supports up to 2 Fiber inputs and up to 2 Fiber outputs.
- Option -UDX-SFP-MSA (no card restictions):
- Top SFP port supports 1 Fiber input and 1 Fiber output.
- Bottom SFP port supports 1 Fiber input and 1 Fiber output.
- Top SFP port supports 1 Fiber input and 1 Fiber output.
- Option -UDX-SFP (non-MSA); Card Rev E and earlier with -C, -F, -G rear IO module:

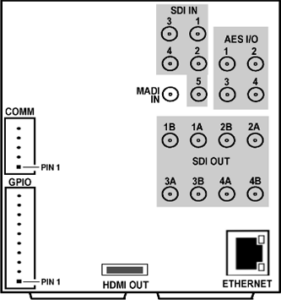

RM20-9905-A-HDBNC
- (5) SDI In
- (8) SDI Out
- (4) AES I/O (User Selectable)
- (1) MADI In
- GPIO/COMM
- (1) HDMI Out
- (1) 100/1000 BaseT Ethernet Port
- (All coaxial connectors HD-BNC)

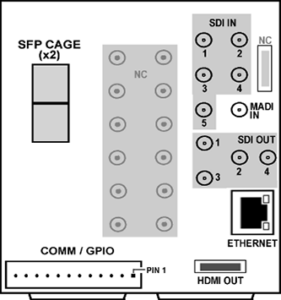

RM20-9905-C-HDBNC
- (5) SDI In
- (4) SDI Out
- (1) MADI In
- GPI/COMM
- (1) HDMI Out
- (2) SFP cage receptacles (valid with SFP option)
- (1) 100/1000 BaseT Ethernet Port
(All coaxial connectors HD-BNC)

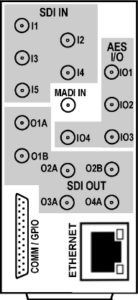

RM20-9905-D-HDBNC
- (5) SDI In
- (6) SDI Out
- (4) AES I/O (User Selectable)
- (1) MADI In
- GPIO/COMM
- (1) 100/1000 BaseT Ethernet Port
(All coaxial connectors HD-BNC)
RM20-9905-F-HDBNC
- (5) SDI In
- (8) SDI Out
- (8) AES I/O (User Selectable)
- (1) MADI In
- (1) MADI Out
- (1) HDMI Out
- (2) SFP cage receptacles (valid with SFP option)
- GPI/COMM
- (1) 100/1000 BaseT Ethernet Port

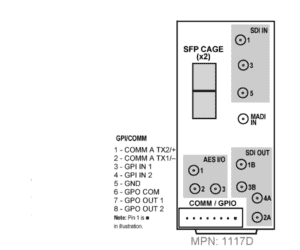

RM20-9905-G-HDBNC
- (3) SDI In
- (4) SDI Out
- (3) AES I/O (User Selectable)
- (1) MADI In
- (2) SFP cage receptacles (valid with SFP option)
- GPIO/COMM
(All coaxial connectors HD-BNC)
Note: Mates to card in odd slot.

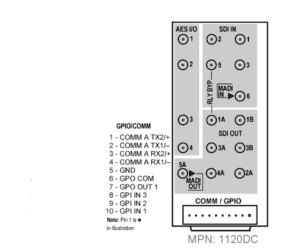

RM20-9905-H-HDBNC
- (4) SDI In
- (1) Relay protected SDI Out (proc or SDI IN 5 on loss of power)
- (6) SDI Out
- (4) AES I/O (User Selectable)
- (1) MADI In
- (1) MADI Out
- GPIO/COMM
(All coaxial connectors HD-BNC)
Note: Mates to card in odd slot.
Note: 12G signals over relay bypass path stipulates maximum cable length not to exceed 10m for total of both input and output cable lengths.
RM20-9905-J-HDBNC
- (4) SDI In
- (1) Relay protected SDI Out (proc or SDI IN 5 on loss of power)
- (6) SDI Out
- (4) AES I/O (User Selectable)
- (1) MADI In
- (1) MADI Out
- GPIO
(All coaxial connectors HD-BNC)
Note: Mates to card in odd slot.
Note: 12G signals over relay bypass path stipulates maximum cable length not to exceed 10m for total of both input and output cable lengths.

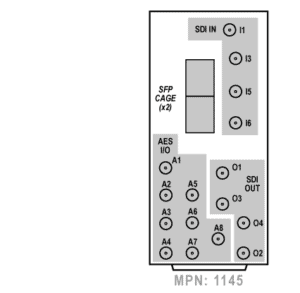

RM20-9905-P-HDBNC
- (4) SDI In (I1, I3, I5, and I6)
- (4) SDI Out (O1-4)
- (8) AES I/O (A 1 – 8 User Selectable)
- (2) SFP Cages
(All coaxial connectors HDBNC)
