Cobalt introduces the 9942-RTR series of SDI/ASI /MADI routers for the openGear® form factor. Using the openGear platform, the 9942-RTR series provides a high-density card-based solution that offers unprecedented flexibility and ease of use and integration that makes it an exclusive within the openGear platform.
In addition to standard DashBoard™ support, The 9942-RTR series offer a built-in Ethernet port for IP-based protocols such as Cobalt’s ReFLEX and SW-P-08. The 9942-RTR series also offer serial and GPIO interfaces. The 9942-RTR series is available in 24×24 and 12×12 sizes.
DashBoard user matrix provides easy to use manual routing setup. Routing setups can be saved as presets, allowing one-button engage with DashBoard or OGCP-9000 Remote Control Panel. Full user DashBoard™ and Remote Control Panel remote control allows full setup, status, and local control across a standard Ethernet network.
Key Features
Exclusive openGear card-based scalable router solution
Design specifically optimized for 12G support
High-density design in openGear form offers compact 2RU solution
RP-168 reference-based switching
Direct interface compatibility with openGear®, Cobalt Reflex, SW-P-08, and Sierra Video (serial) protocols. Direct compatibility with DNF, PESA PNET, and LAWO SNAP panels (and other panels conforming with supported protocols).
Supports software upgrades allowing expanded functionality without removing cards and minimal disruption
DashBoard™ remote control status monitoring and setup/control
Hot-swappable
Five year warranty
Specifications
12G/6G/3G/HD/SD-SDI Input/Outputs
(12/24) 75Ω inputs (max)
(12/24) 75Ω outputs (max)
SDI Formats Supported: SMPTE ST2082-1,10, 424M, 292M, SMPTE 259M-C.
Return Loss:
> 15 dB up to 1.485 GHz
> 10 dB up to 3 GHz
> 7 dB up to 6 GHz
> 5 dB up to 12 GHz
Input Cable Length:
40m Belden 1694A cable at 11.88 Gbps
120m Belden 1694A cable at 2.97 Gbps
240m Belden 1694A cable at 1.485 Gbps
400m Belden 1694A cable at 270 Mbps
Output Signal Level: 800 mV ±10%
DC Offset: 0 V ± 50 mV
Rise and Fall Time @ 11.88 Gbps: < 45 ps
Alignment Jitter (12G/3G/HD/SD): < 0.3/0.3/0.2/0.2 UI
Power
30W
GPIO/COMM
(1) GPI
(1) GPO
(2) RS-232/422 comm port (RESERVED FOR FUTURE USE).
ETHERNET
(1) 100/1000 BaseT Ethernet Port
Diagrams

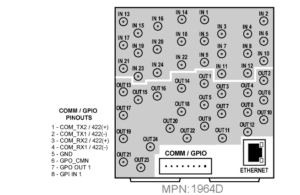

RM20-9942-24x24-A-HDBNC
• (24) SDI / ASI / MADI In
• (24) SDI / ASI / MADI Out
• COMM/GPIO
• (1) 100/1000 BaseT Ethernet Port
(All coaxial connectors HD-BNC)
Note: RM20-9942-24×24-A-HDBNC is compatible with 9942-RTR-12×12-12G and
9942-RTR-24×24-12G models. When used with the 12×12 model, IN 13 thru IN 24
and OUT 13 thru OUT 24 ports are NC.
