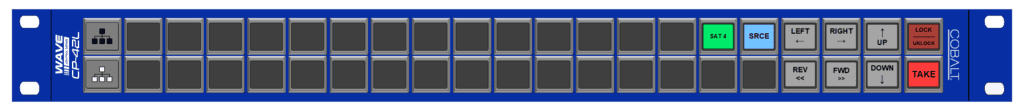

The Cobalt WAVE CP-42L Remote Control Panel features 42 back-lit LCD dot matrix display buttons. All buttons are illuminated by Red, Green and Blue LED’s providing a wide array of background colors to choose from.

The frame is 1U – 1.75 inches tall and is only 3.4 inches deep with removable rack mount “ears” for desktop use or other custom installations.

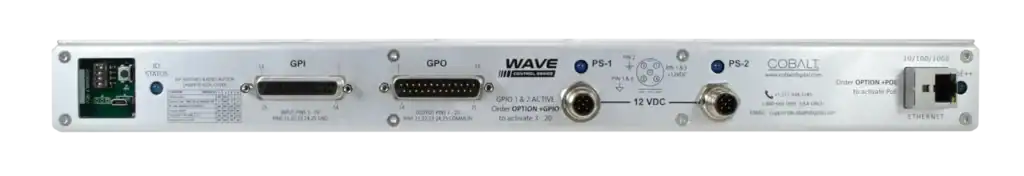

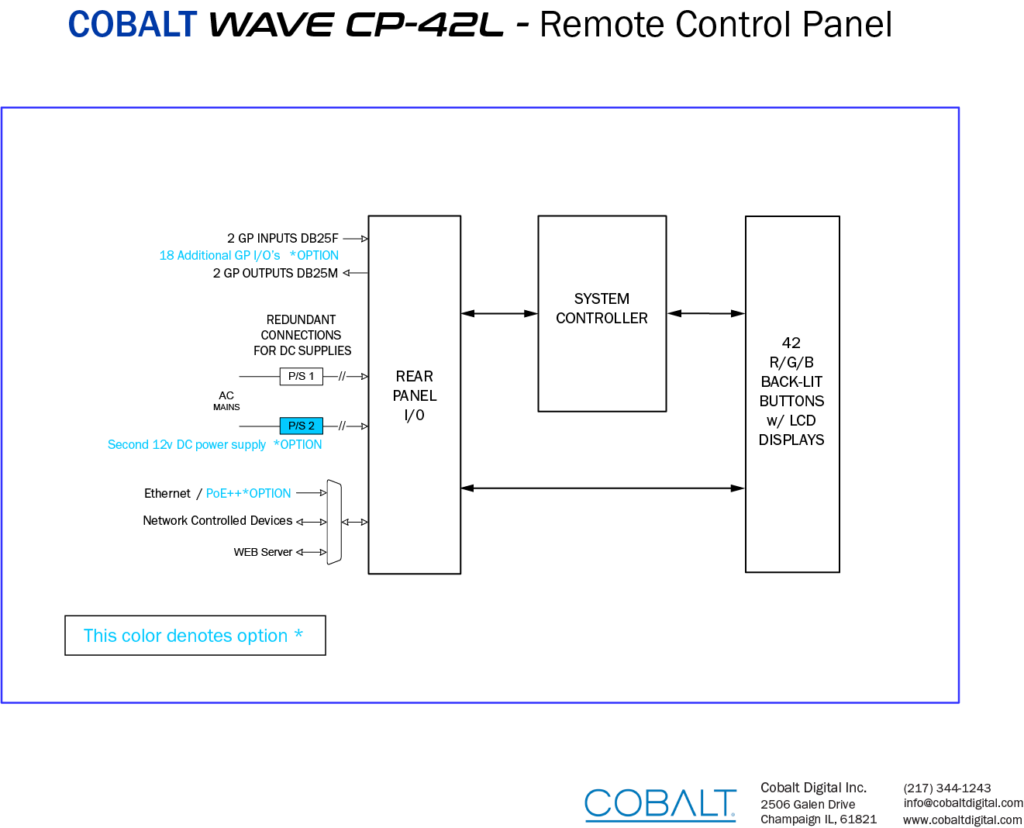

The WAVE series of control panels offer unprecedented flexibility, ease of use & integration. Located on the rear of the unit is an Ethernet port with PoE++ capability for power and IP based communication. Add optional PoE++ capability with the +PoE Option. Built in SW-P-08 protocol comes standard as well 2 optically isolated General Purpose Outputs and 2 Inputs. Add 18 more GP Inputs and 18 GP Outputs with the +GPI Option. Dual DC power inputs provide for redundant operation.

The web-based browser control system includes button assignment, back-light color, setup of salvo presets, panel & button locks, setup of the GP/I/O system and other important system management operations. Factory presets provide a solid starting point from which to customize each button with it’s 64×32 dot matrix graphics.

The WAVE Control Series panels allow different panel setups to be stored and recalled from the browser to provide extremely flexible operations. Recall complex configurations for various operations, no labels to cut and fit into key-caps. After customizing the panel just as you need it, upload the configuration to a different panel for rapid changes to operations of other same model panels on your network.
